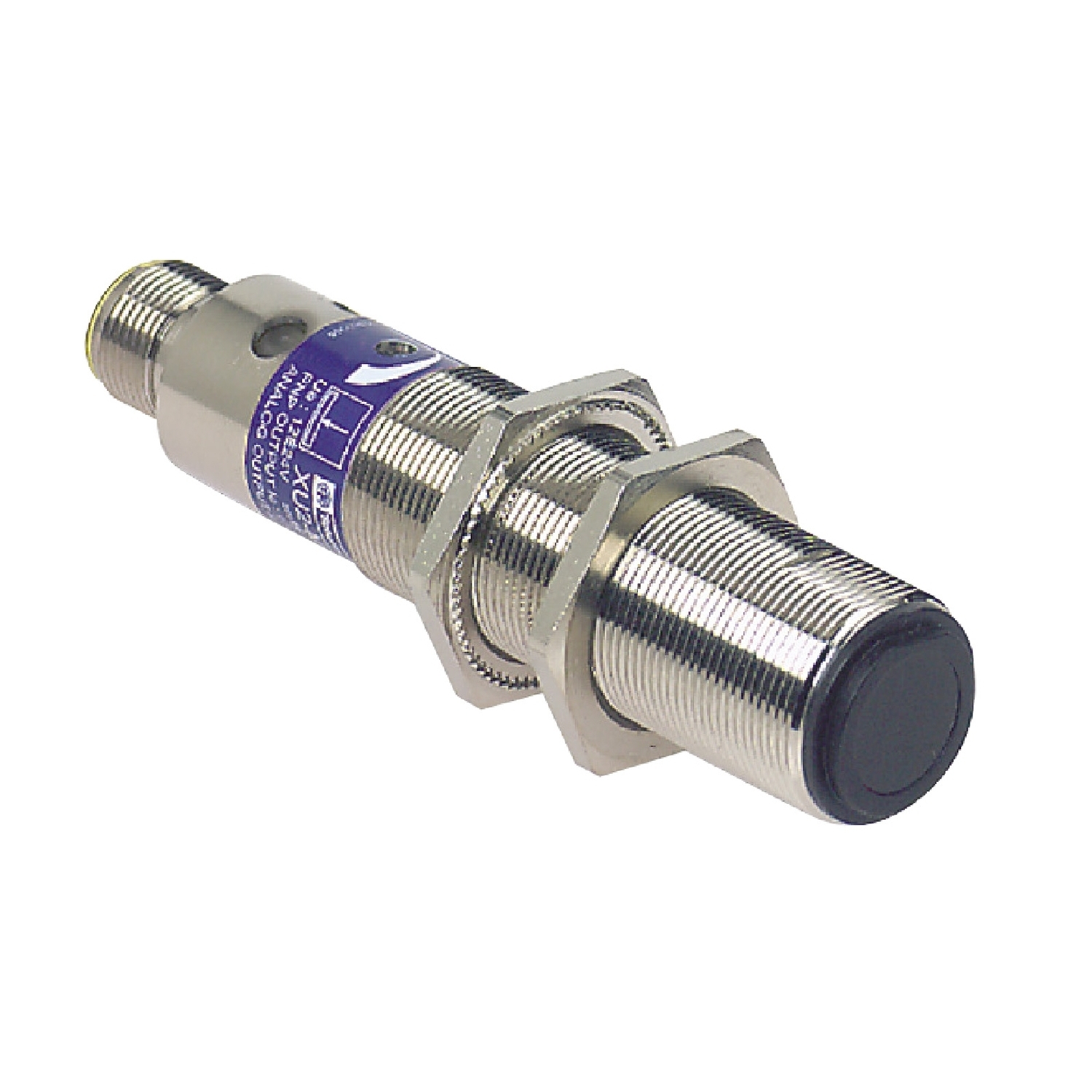

XU2M18AP20D XU Series Photo Electric Sensor, Cylindrical Shape, 229.66 ft, Infrared LED Sensing Beam, 15 ms Response, PNP Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XU2M18AP20D
- UPC:
- 785901377450
- Item #:
- 157927
XU2M18AP20D XU Series Photo Electric Sensor, Cylindrical Shape, 229.66 ft, Infrared LED Sensing Beam, 15 ms Response, PNP Output
- MFR #:
- XU2M18AP20D
- UPC:
- 785901377450
- Item #:
- 157927
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XU2 cylindrical M18 design. It has through-beam detection system. It supports axial line of sight, 50m nominal sensing distance and solid state analogue output. It is furnished with 4-pin M12 male connector for electrical connection. It has an infrared thru beam emission and 2 LEDs for supply on and operation. It is an IP67 rated product. This photoelectric sensor has a rated supply voltage of 12V to 24V DC with reverse polarity protection, a current consumption of =55mA and a switching frequency of =30Hz. The enclosure is made of nickel plated brass with PMMA lens. Its dimensions are 18mm (Diameter) x 95mm (Length) and weighs 0.155kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CSA, CE and UL. The kit includes transmitter and receiver.
Manuals and Documentation
| Catalog Number | XU2M18AP20D |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connection | 1 male connector M12, 4 pins |
| Enclosure | IP67 CONFORMING TO IEC 60529,NICKEL PLATED BRASS |
| Operating Cycles | <= 30 Hz |
| Output | PNP;1 NO;Discrete;analogue;Solid state |
| Sensing Range | 50-50 M THRU BEAM,> 98.43 FT (30 M) |
| Special Features | 1 LED green)supply on;1 LED yellow)operation |
| Standard | CSA-CE-UL,IP67 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=871896&lang=en-us |
| UPC | 785901377450 |
| GTIN | 03389110077254 |
| Item Type | Application material handling;Thru beam;Cylindrical M18;Photo-electric sensor |
| Size | 0.71 |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 12...24 V DC reverse polarity protection |
