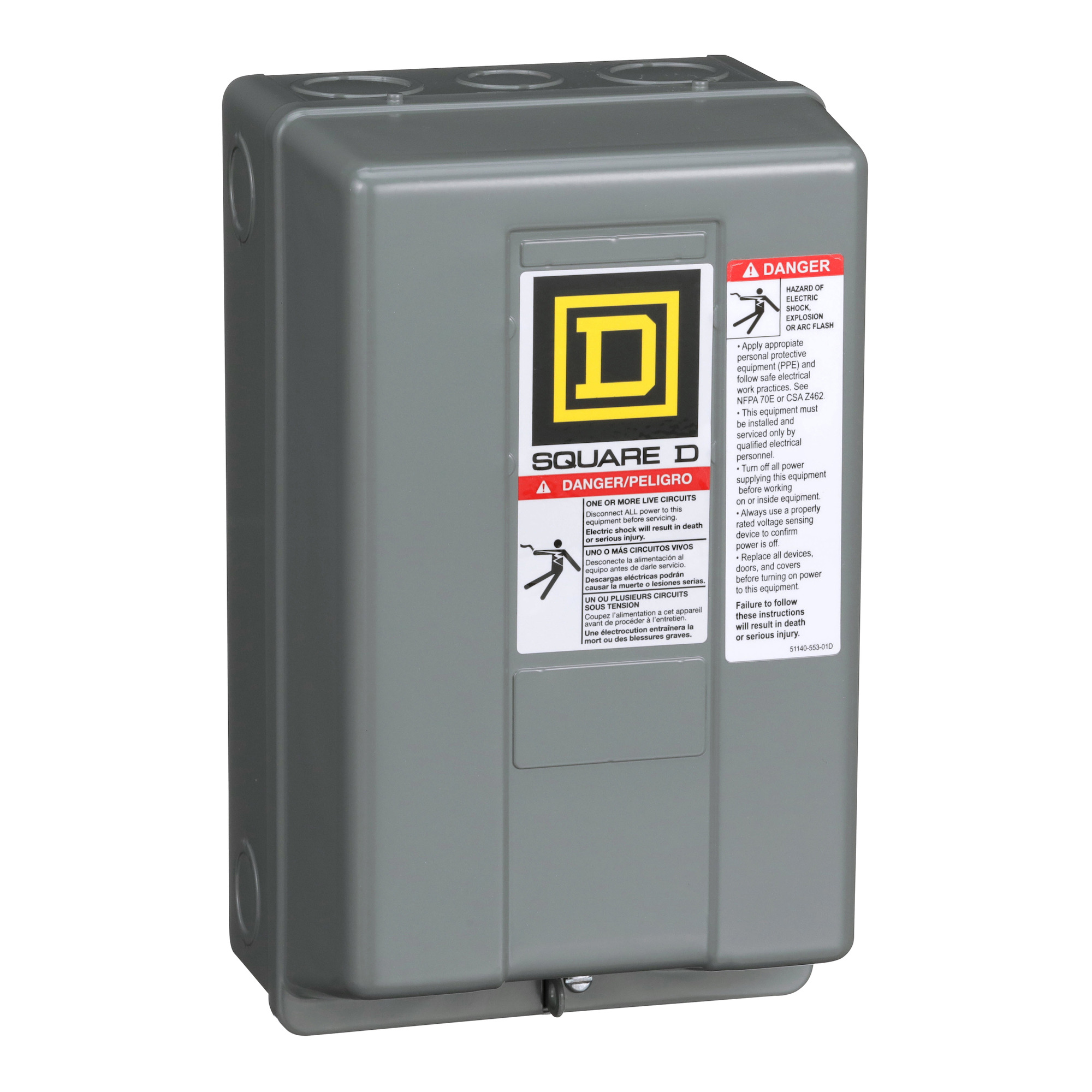

8502SAG12V08 Non-Reversing Type S Contactor, 208 V AC at 60 Hz V Coil, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- 8502SAG12V08
- UPC:
- 785901836452
- Item #:
- 15782
8502SAG12V08 Non-Reversing Type S Contactor, 208 V AC at 60 Hz V Coil, 3 Poles
- MFR #:
- 8502SAG12V08
- UPC:
- 785901836452
- Item #:
- 15782
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing contactor has a 9 ampere rating. Three phase NEMA Size 00 contactors have 1.5 HP at 200 and 230 VAC and 2 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is in a NEMA 1 general purpose enclosure. This enclosure is 10.00 inches tall, 6.00 inches wide and 5.28 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Manuals and Documentation
| Catalog Number | 8502SAG12V08 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901836452 |
| GTIN | 00785901836452 |
