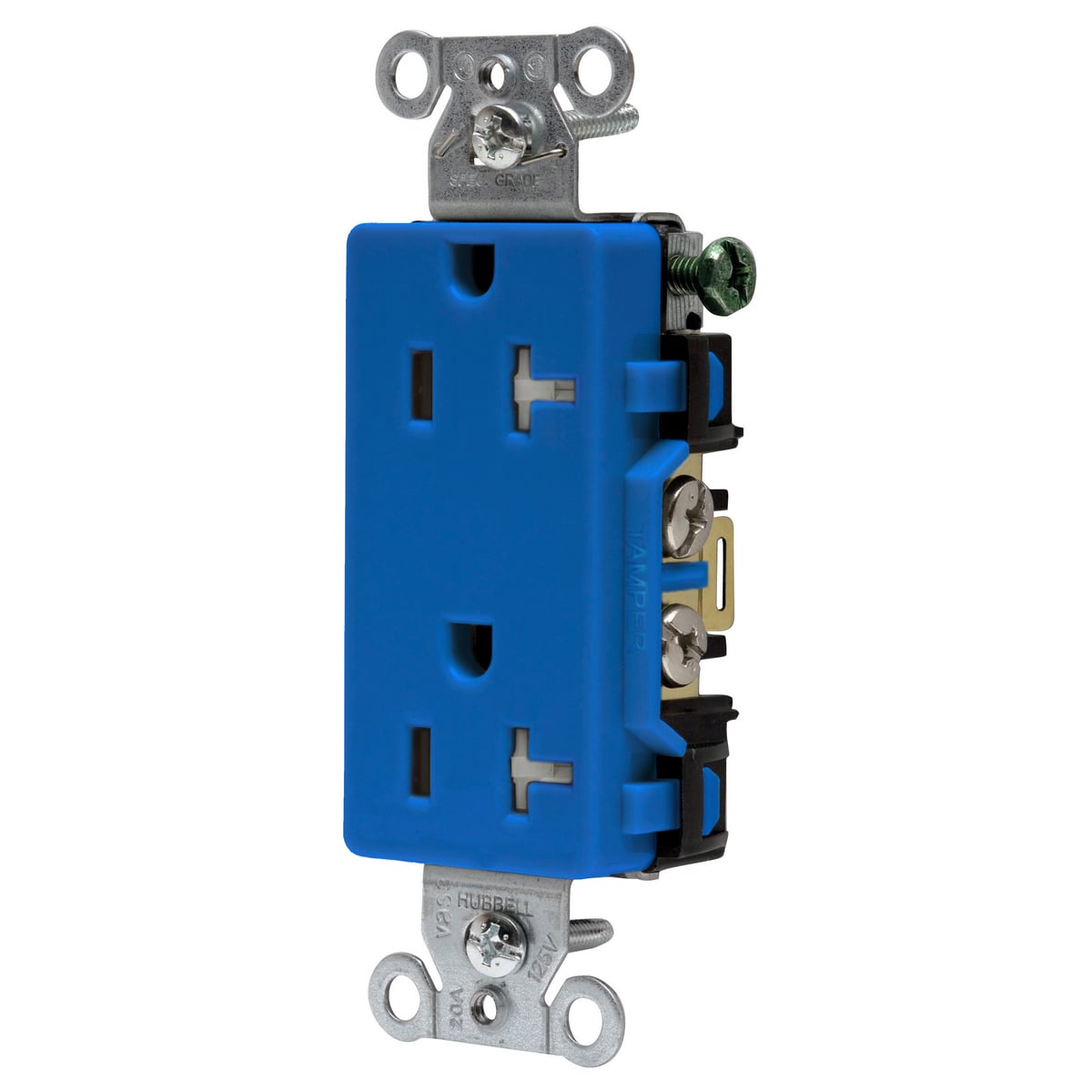

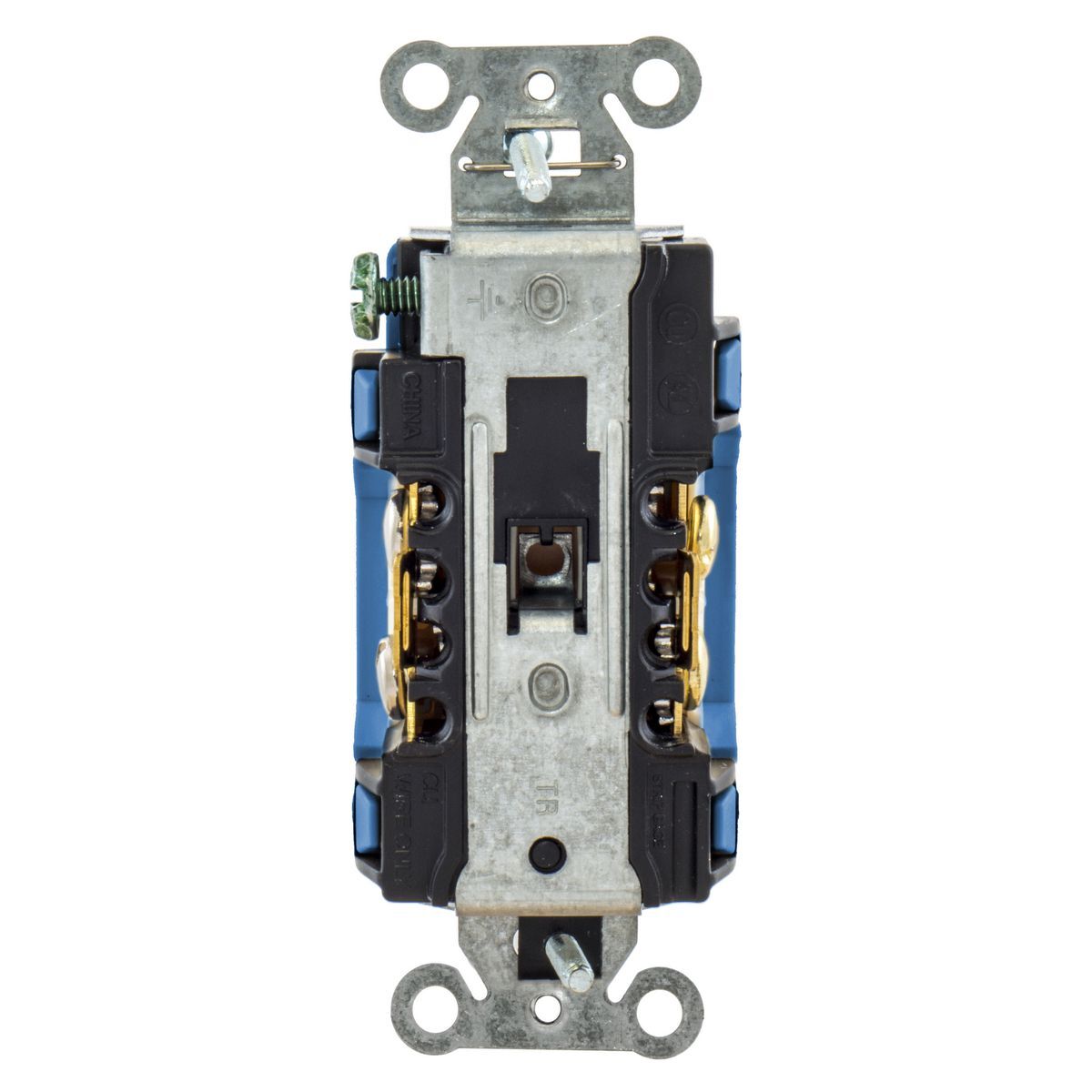

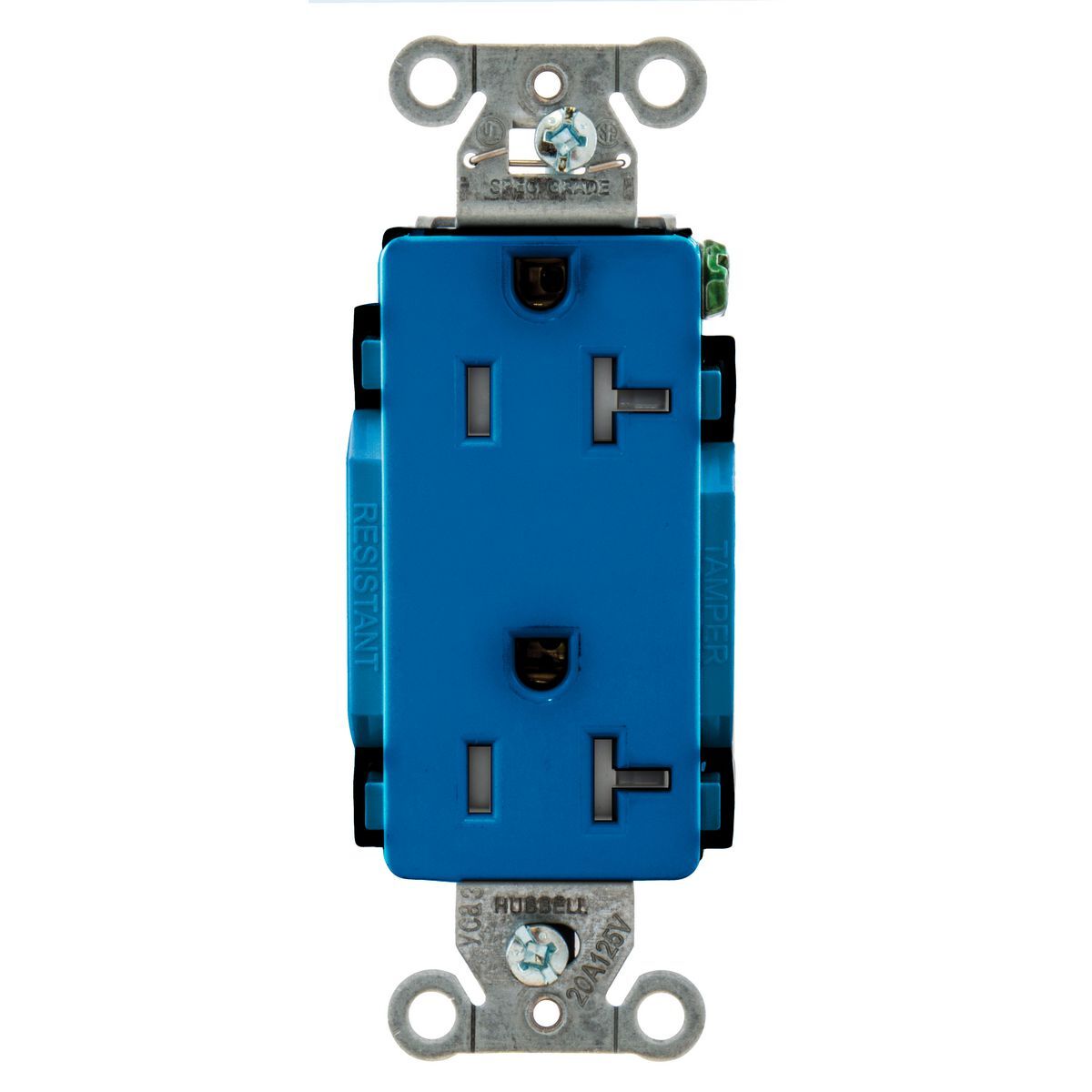

DR20BLTR 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Blue
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- DR20BLTR
- UPC:
- 783585197623
- Item #:
- 1578020
DR20BLTR 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Blue
- MFR #:
- DR20BLTR
- UPC:
- 783585197623
- Item #:
- 1578020
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | DR20BLTR |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial Specification Grade |
| Color | Blue |
| Connection | Back and Side Wired |
| Material | Thermoplastic |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire Grounding |
| Phase | 1 |
| Special Features | Tamper Resistant- Self Grounding |
| Standard | NEMA WD1 and WD5, UL 498 |
| UPC | 783585197623 |
| GTIN | 00783585197623 |
| Item Type | Decorator Duplex |
| Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 2,500 |
| Wire Size | #14 AWG to #12 AWG |
