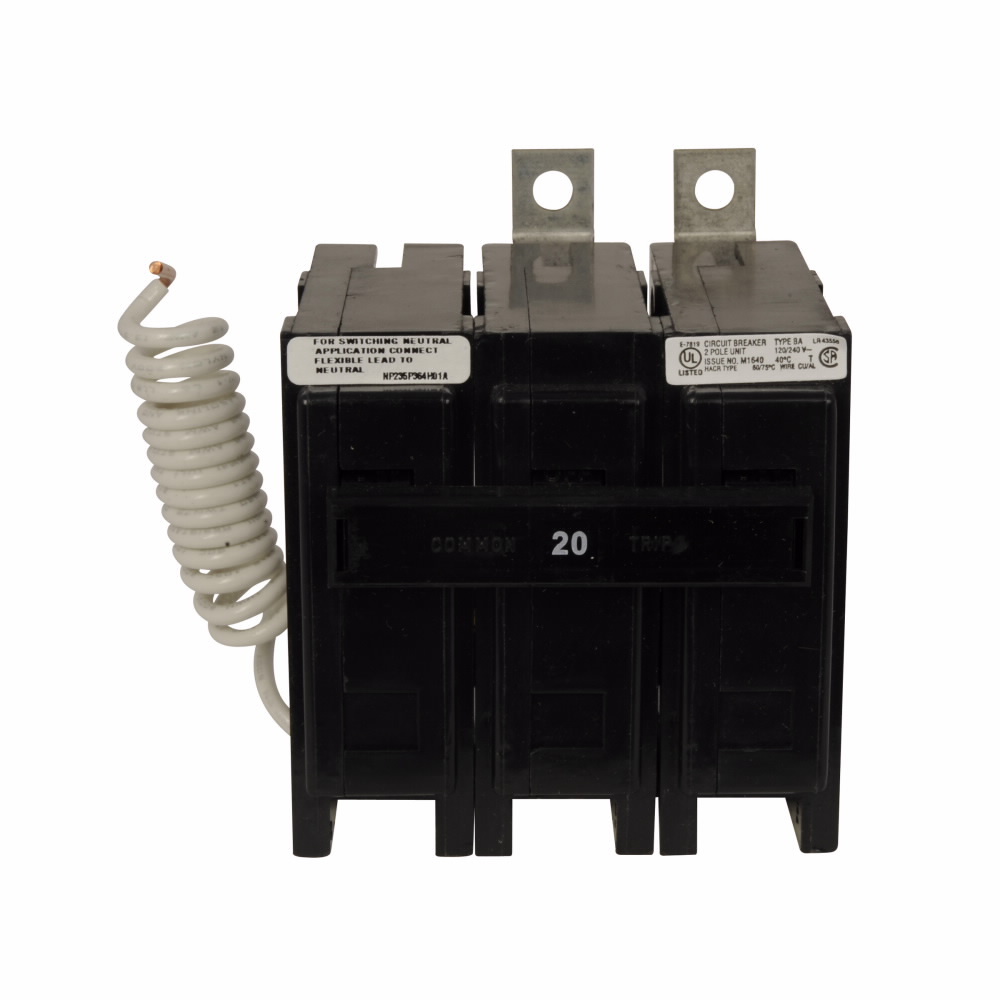

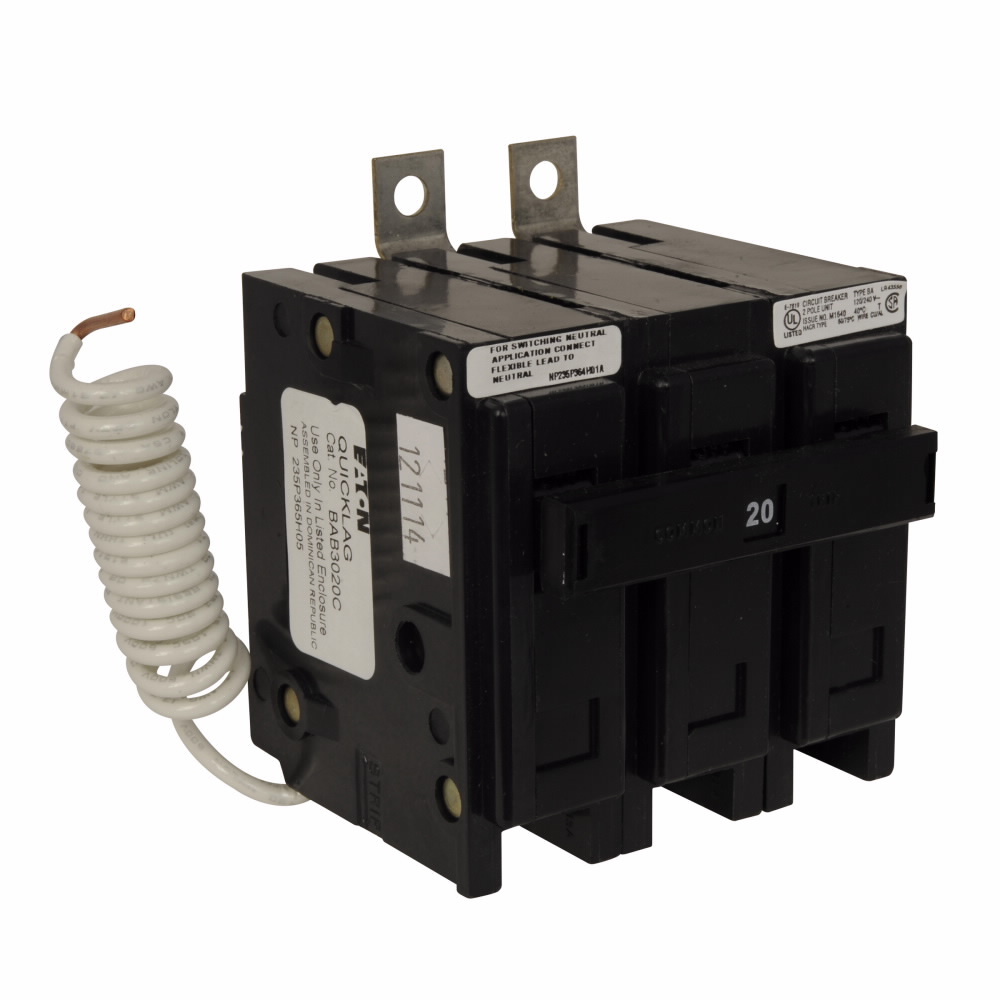

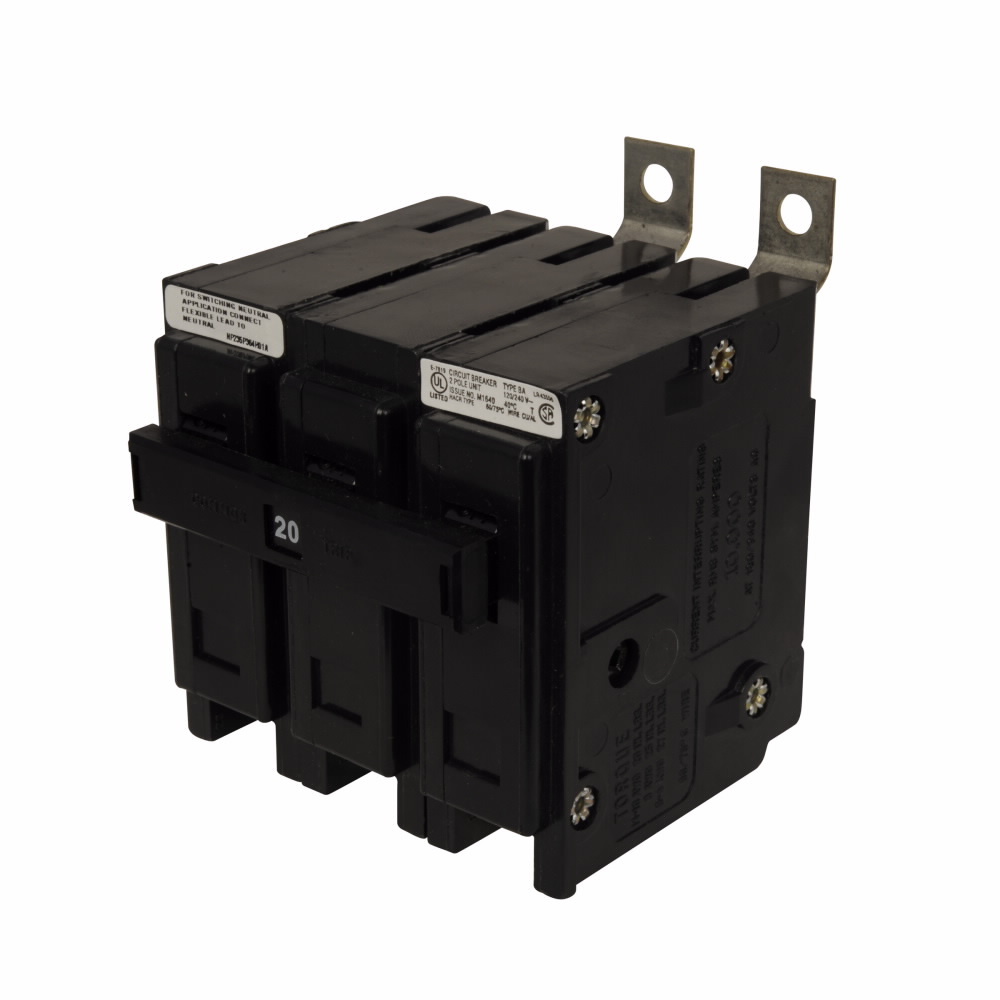

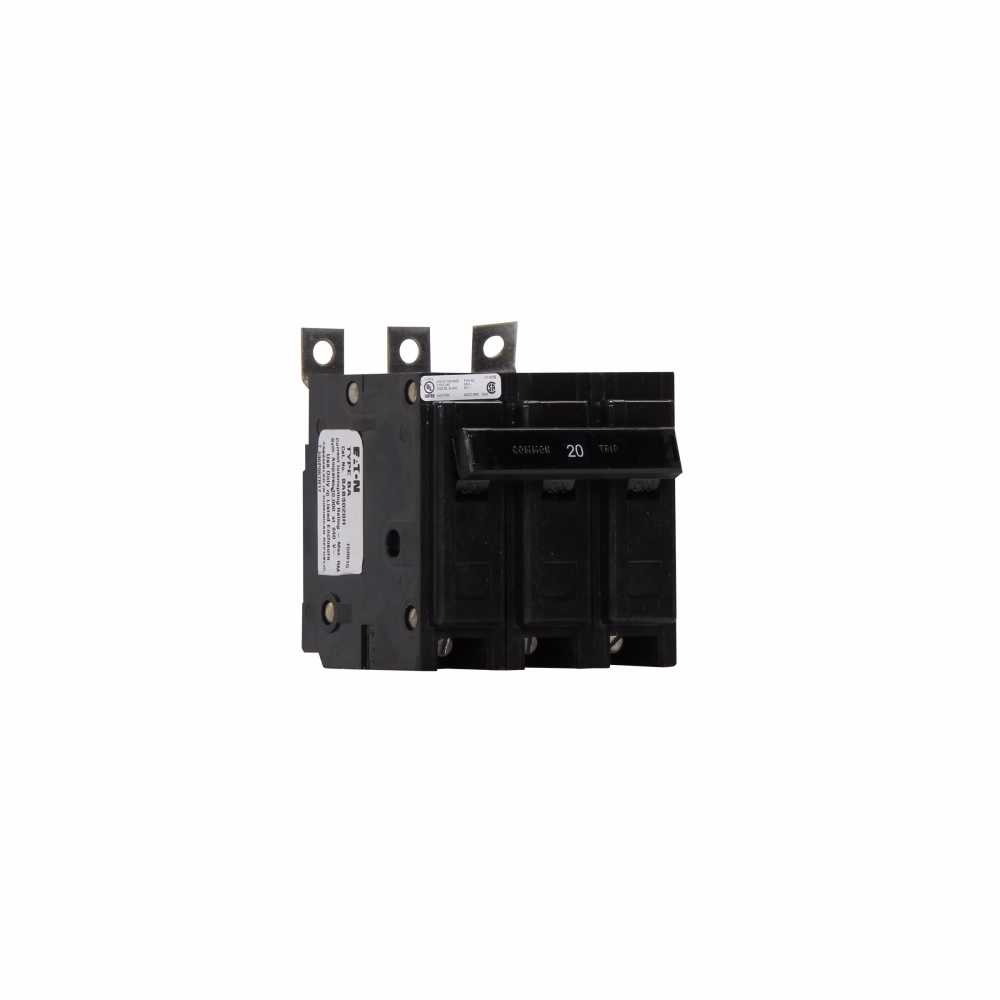

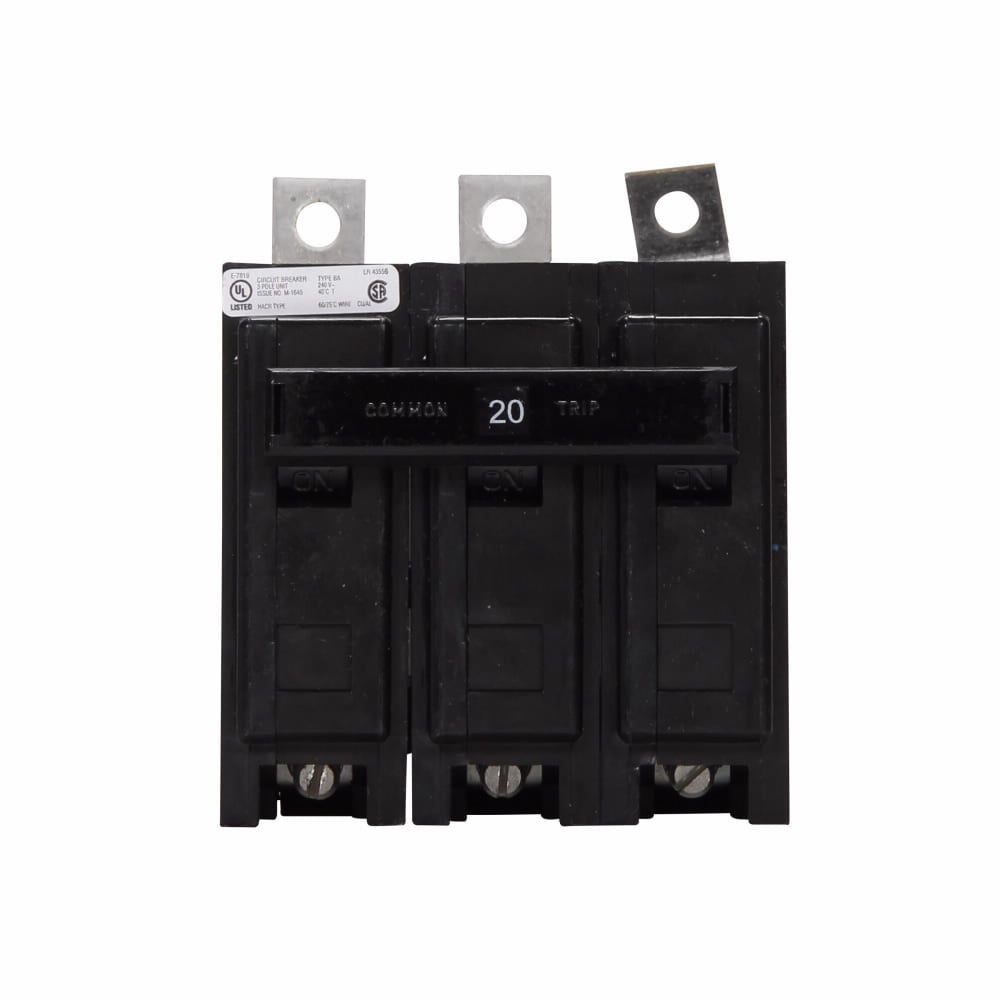

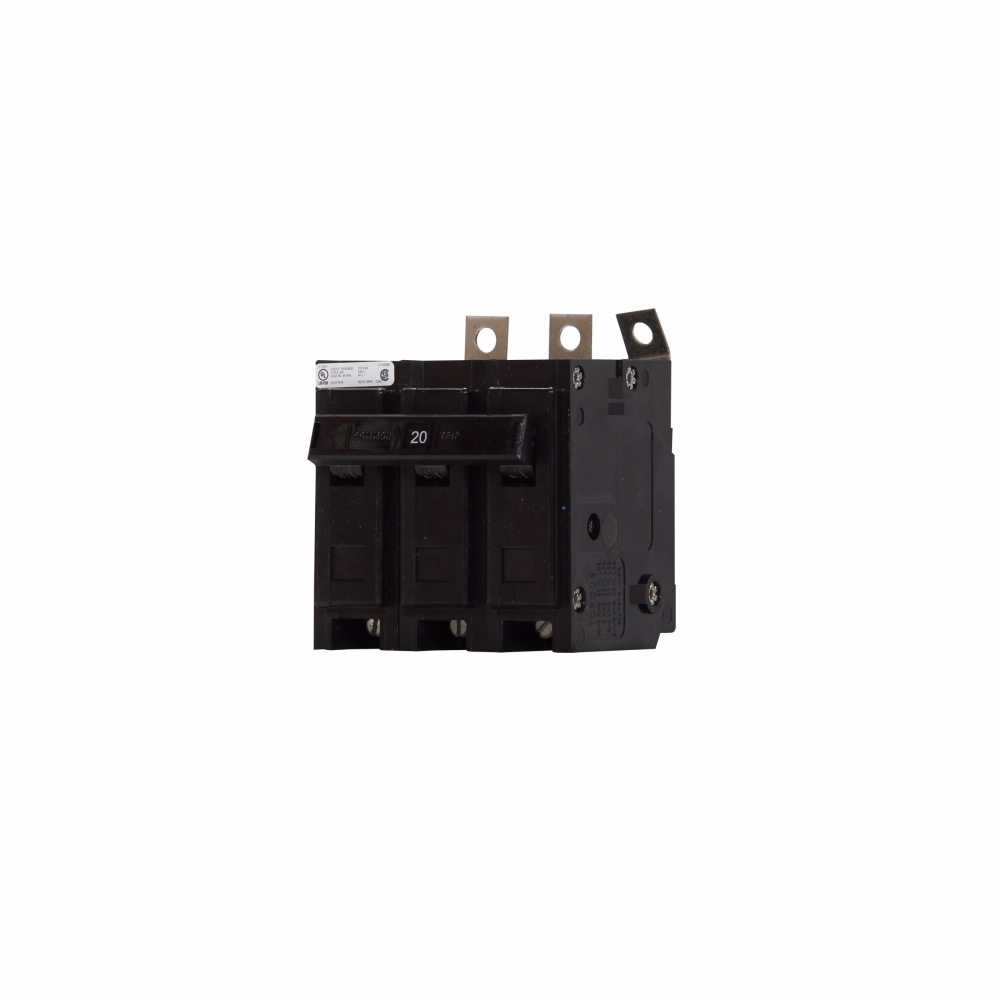

Eatons bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15100A are HACR rated. Select from one-, two-, or three-pole designs.
Manuals and Documentation
| Catalog Number | BAB3020H |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Dominican Republic |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Generation - Conventional Energy - Conventional Energy|Datacenters - IT Space: CI and Hyper Converged|Generation - Renewable Energy - Alternative Energy|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Other|Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other |
| Interrupt Rating | 10 kAIC |
| Number of Poles | 3 |
| Special Features | Bolt-on mounting |
| Standard | CSA Certified,UL Listed |
| UPC | 786679303207 |
| GTIN | 00786679303207 |
| Item Type | Thermal magnetic circuit breakers |
| Dimensions | 3.3750 IN X 3.0000 IN X 3.5000 IN |
| Trip Type | Non-Interchangeable |
| Voltage Rating | 240 V - 240 V |
