Telemecanique

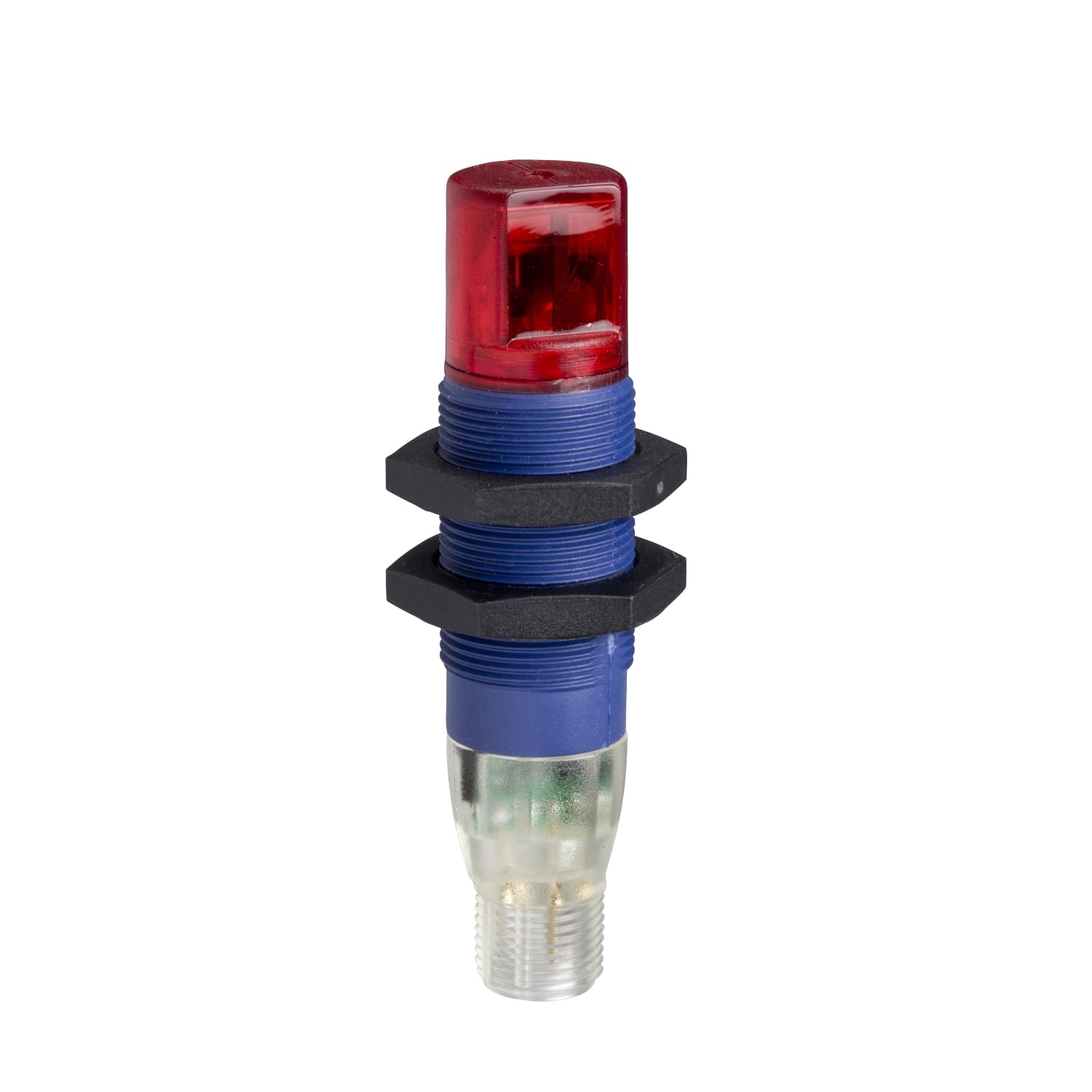

XUB2BPBWM12R OsiSense XU 3-Wire 90 deg Lateral Photoelectric Sensor, M18 Cylindrical Shape, 20 m, Infrared Sensing Beam, 1 ms Response, PNP 1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUB2BPBWM12R
UPC:
785901510260
Item #:
157487

Availability

Location Available Qty
Available Available to Order
$120.27 each

This photo-electric sensor is part of the XU range, single mode function. It is a design 18, metal receiver with an M12 connector. Three-wire DC, solid-state output. Thru-beam system with a 15m sensing distance.

Manuals and Documentation
Catalog Number XUB2BPBWM12R
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application -
Connection 1 male connector M12, 4 pins
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,NICKEL PLATED BRASS
Operating Cycles <= 500 Hz
Output PNP;1 NC;Discrete;Solid state
Sensing Range 15-15 M THRU BEAM NEED A TRANSMITTER XUB2BKSWM12T,> 16.4...49.21 FT (> 5...15 M)
Special Features 1 LED yellow)output state
Standard IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050,UL-CE-CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872878&lang=en-us
UPC 785901510260
GTIN 03389110152807
Item Type General purpose single mode;Thru beam;Cylindrical M18;Photo-electric sensor receiver
Size 0.71
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
