SCHNEIDER ELECTRIC

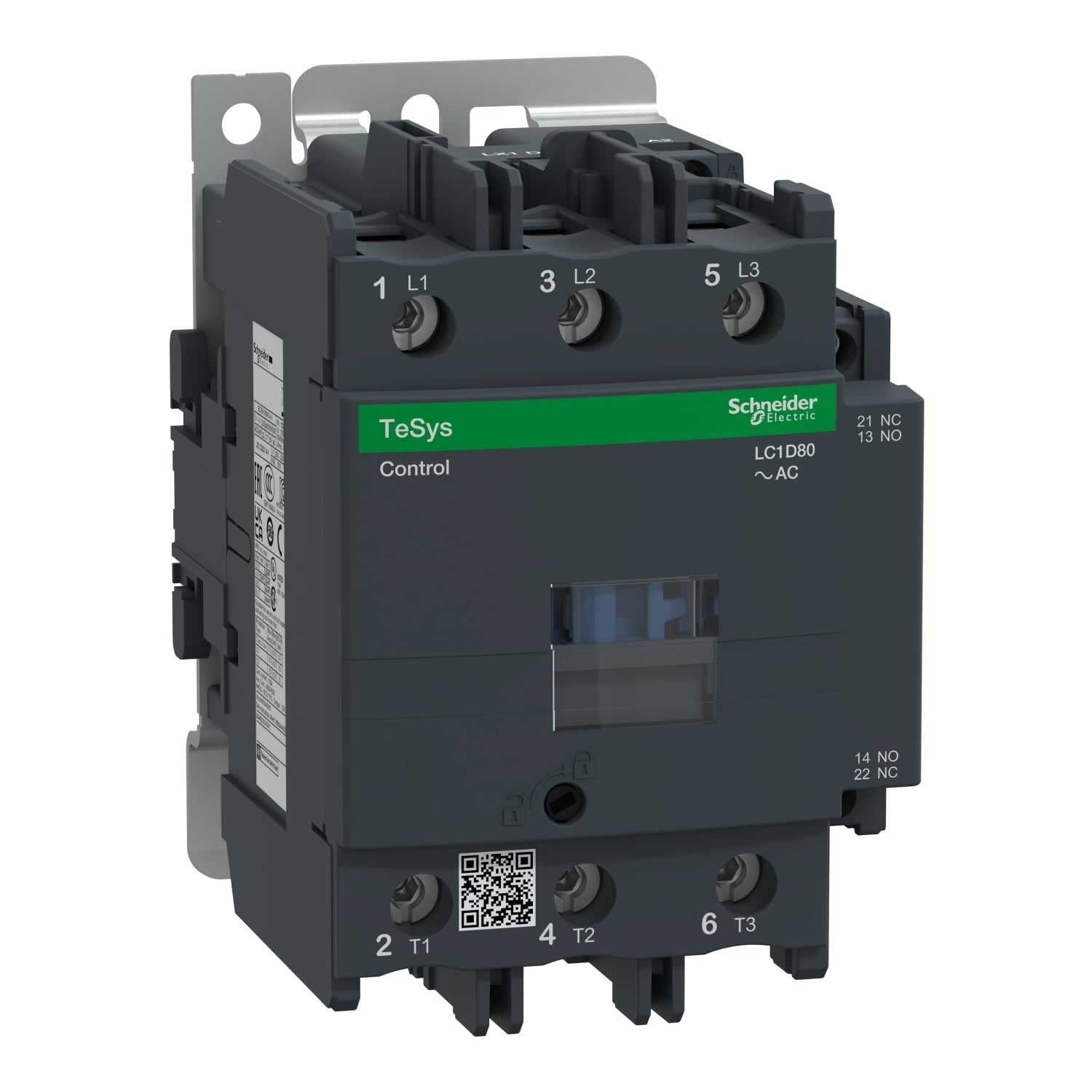

LC1D80X6 TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 600 V AC V Coil, 80/125 A, 3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC1D80X6
Item #:
1574155

Availability

Location Available Qty
Available Available to Order
$616.46 each
Manuals and Documentation
Catalog Number LC1D80X6
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Motor control;resistive load
Coil Voltage 600 V AC 60 Hz
Connection Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end;power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end;power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end;power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end;power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end;power circuit: connector 2 4-25 mm² - cable stiffness: solid
Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Rail Plate
Operating Cycles 25...400 Hz
Special Features Without built-in suppressor module
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=619158&lang=en-us
GTIN 03389110443189
Item Type Contactor
