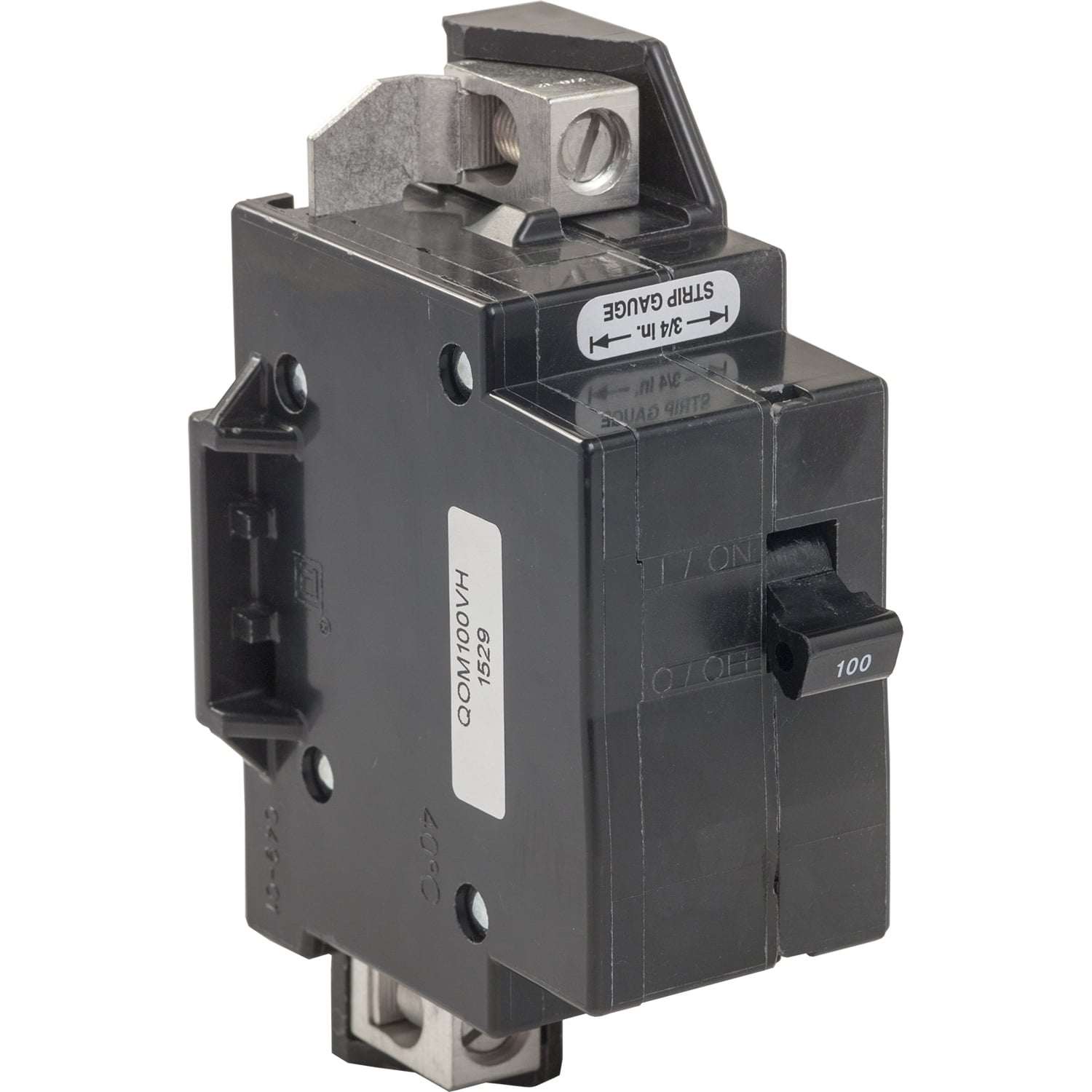

QOM100VHCP Low Voltage Circuit Breaker, 100 A, 22 kA at 120/240 VAC/22 kA at 120 VAC Interrupt, 2 Poles
- MFR:
- Schneider Electric
- MFR #:
- QOM100VHCP
- UPC:
- 047569822599
- Item #:
- 1571000
QOM100VHCP Low Voltage Circuit Breaker, 100 A, 22 kA at 120/240 VAC/22 kA at 120 VAC Interrupt, 2 Poles
- MFR #:
- QOM100VHCP
- UPC:
- 047569822599
- Item #:
- 1571000
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is a consumer pack.
Manuals and Documentation
| Catalog Number | QOM100VHCP |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Load center QO;QO load center |
| Cable Size | AWG 4...AWG 2/0 copper or aluminium |
| Phase | 1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4047540&lang=en-us |
| UPC | 047569822599 |
| GTIN | 00047569822599 |
| Item Type | Miniature circuit-breaker;Primary main breaker |
