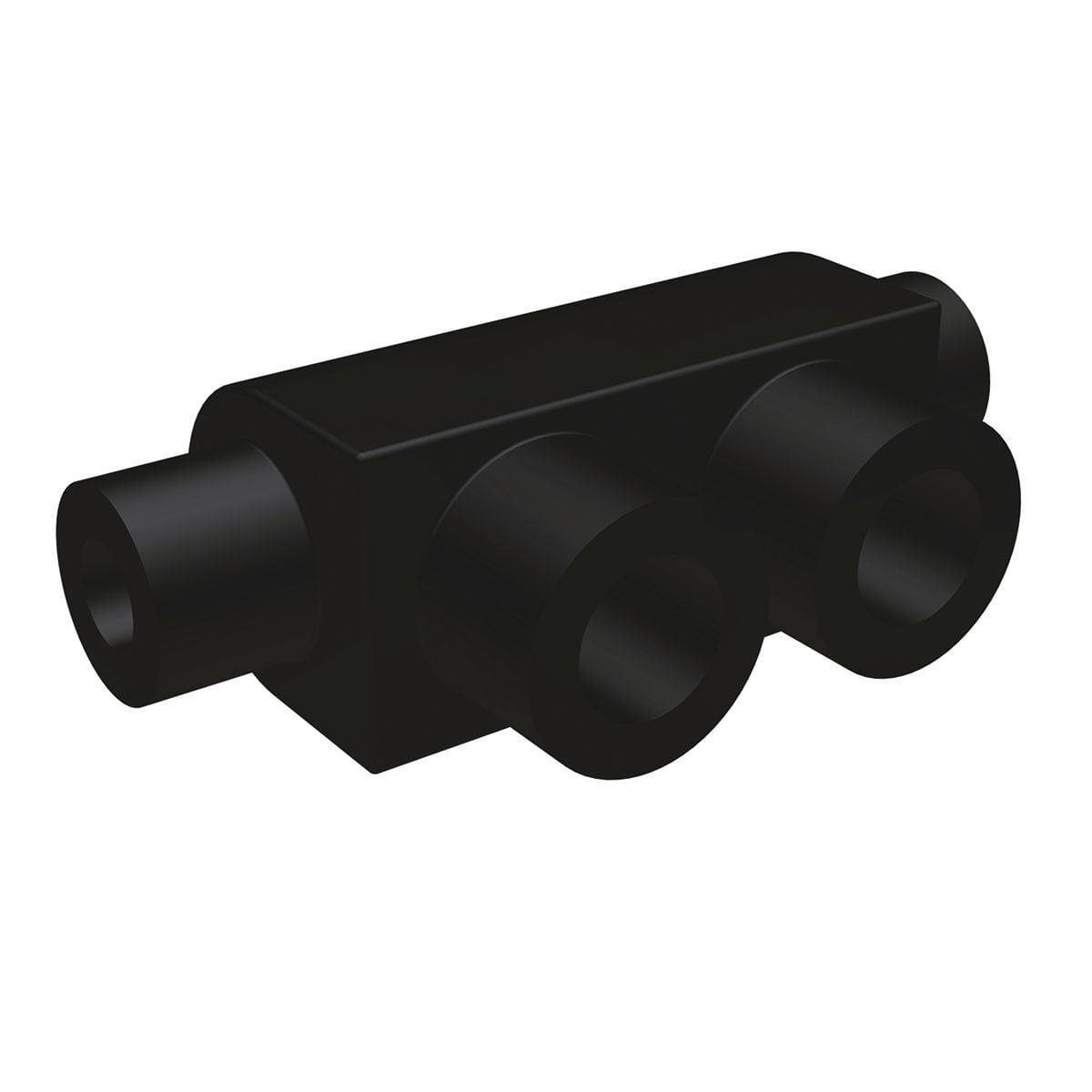

1PBS250 Multi-Port In-Line Splice Reducer, Aluminum/Copper/Stranded Conductor, 10 AWG to 250 kcmil Run/Main, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- 1PBS250
- UPC:
- 781810295915
- Item #:
- 157059
1PBS250 Multi-Port In-Line Splice Reducer, Aluminum/Copper/Stranded Conductor, 10 AWG to 250 kcmil Run/Main, Aluminum
- MFR #:
- 1PBS250
- UPC:
- 781810295915
- Item #:
- 157059
Availability
| Location | Available Qty |
|---|---|
| Available | 29 ea |
$118.61
each
Manuals and Documentation
| Catalog Number | 1PBS250 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Material | Aluminum |
| Special Features | Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Torque: 275 IN-LB, Wire Entry: In-Line, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Hex Size (key): 5/16 IN, Wire Strip Length: 1-3/16 IN, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 2 |
| UPC | 781810295915 |
| GTIN | 00781810295915 |
| Item Type | BIBS, Multi-Port |
| Temperature Rating | 194 Degrees F |
| Cross Reference Products | PBT-250, ISR-250, AMTSR250 |
