SQUARE D

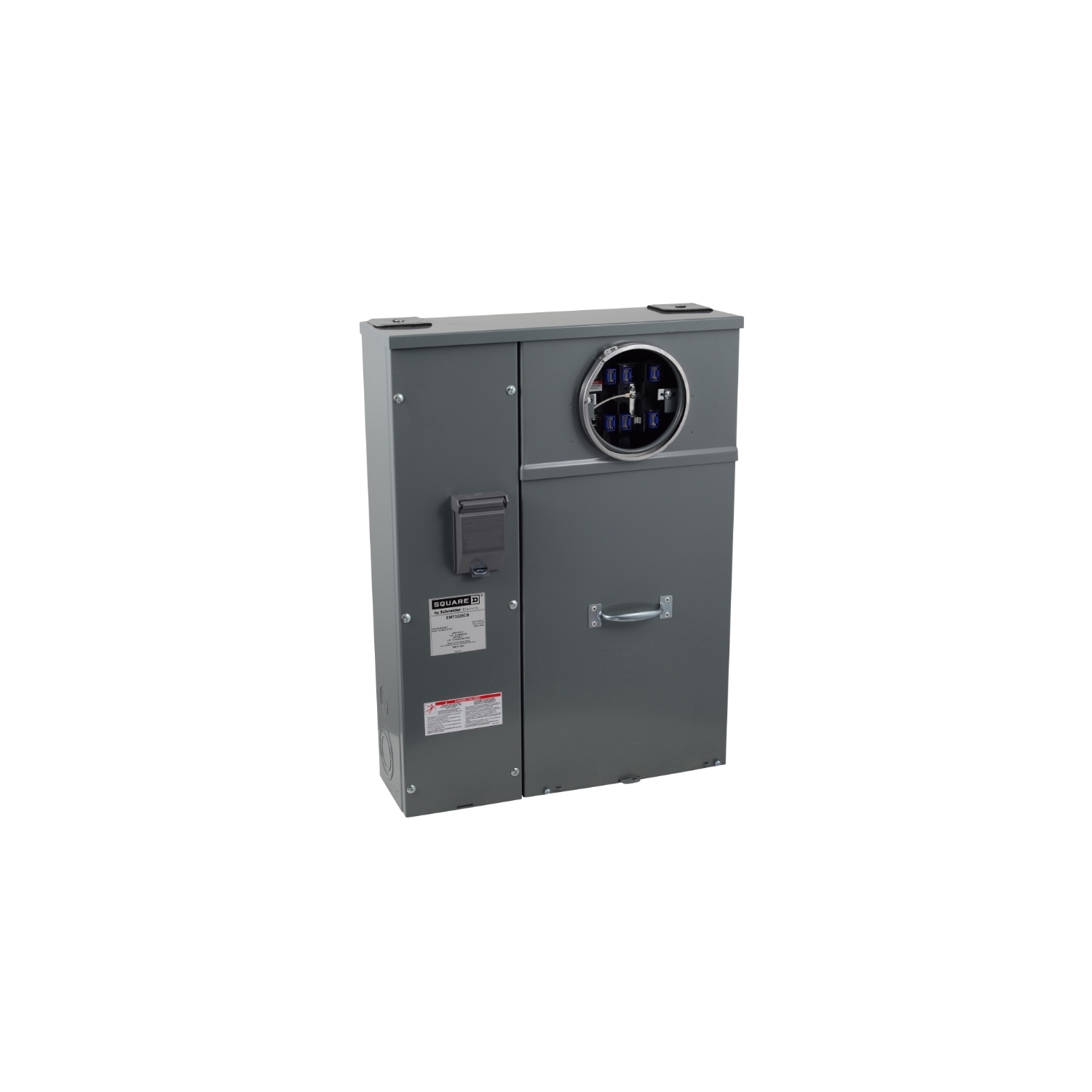

EMT3225CB Individual Meter Main, Test Block Bypass, OH, UG, 200 Amp, 3 Phase, 4 Wire, 208Y/120V or 240/120V, Delta, 7 Jaw

MFR:
Schneider Electric
MFR #:
EMT3225CB
UPC:
785901574088
Item #:
157035

Availability

Location Available Qty
Available Available to Order
$7,478.36 each

Individual meter main with test block bypass meets EUSERC requirements. This individual meter socket is designed for 3 phase 4W incoming system and outgoing service. The rated operational voltage is 208Y/120 VAC or 240/120 VAC Delta. The meter socket can be feed from an overhead or underground service. This individual meter socket has a ringed socket with 7 jaws. The meter socket is rated 200 A. The lugs will accept 6 AWG to 300 kcmil copper or aluminum wire. This unit has a NEMA 3R flush mounting enclosure that is 30.00 inches tall, 22.44 inches wide and 7.50 inches deep. This Individual meter main with test block bypass is UL listed.

Manuals and Documentation
Catalog Number EMT3225CB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Bypass Type Review
Enclosure Steel
Mounting Flush
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357255&lang=en-us
UPC 785901574088
GTIN 00785901574088
Item Type Meter Socket;Ringed
Width 22.44
Width UOM Inch
Height 30.0
Height UOM Inch
Depth 7.5 IN
