Hubbell Wiring Device - Kellems

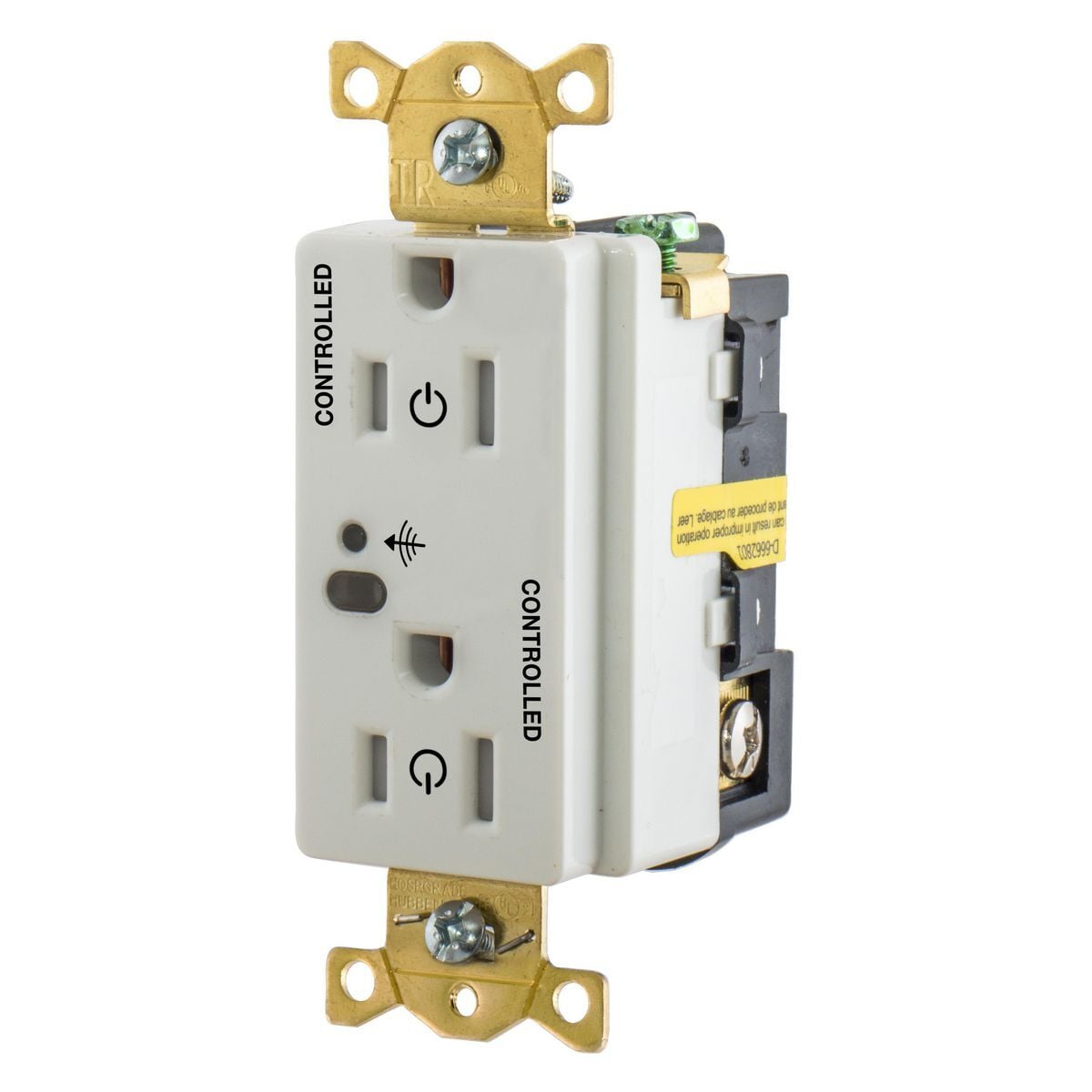

HBL5262RFC2W 1-Phase Duplex Fully Controlled Grounding Switched Wireless Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL5262RFC2W
UPC:
783585401980
Item #:
1568833

Availability

Location Available Qty
Available Available to Order

Switched Receptacles for Automatic Receptacle Control - to Hubbell Wiring Device-Kellems comprehensive offering for automatic receptacle control requirements. Featuring Hubbells exclusive and patented tamper-resistant mechanism as standard, the unit is capable of controlling other receptacles downstream in the branch circuit. Hubbell offers this innovative device in wired and wireless options, which are both fully compatible with existing systems. This allows for easy additions and changes to meet current energy codes and standards in current facilities.

Manuals and Documentation
Catalog Number HBL5262RFC2W
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 15
Application Commercial Grade
Color White
Connection Terminal Screws
Material Thermoplastic/Composite
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Special Features 2/2 Controlled, Tamper-Resistant
Standard cULus 498B SA UL File No. E481574;Fed. Spec. WC596G;Complies with:NEC Section 406.3 (E), ASHRAE 90.1 Section 8.4.2,California Title 24 Artcile 130.5(d);NEMA WD-6 Compliant
UPC 783585401980
GTIN 00783585401980
Item Type Radio Frequency Controlled Receptacles
Size Standard Sized Product
Environmental Conditions Indoor Dry
Temperature Rating v0 Degrees to 40 Degrees C (32 Degrees to 104 Degrees F) Relative Humidity
Voltage Rating 125
Wattage 1875 W
Wire Size #14 AWG to #10 AWG
