SCHNEIDER ELECTRIC

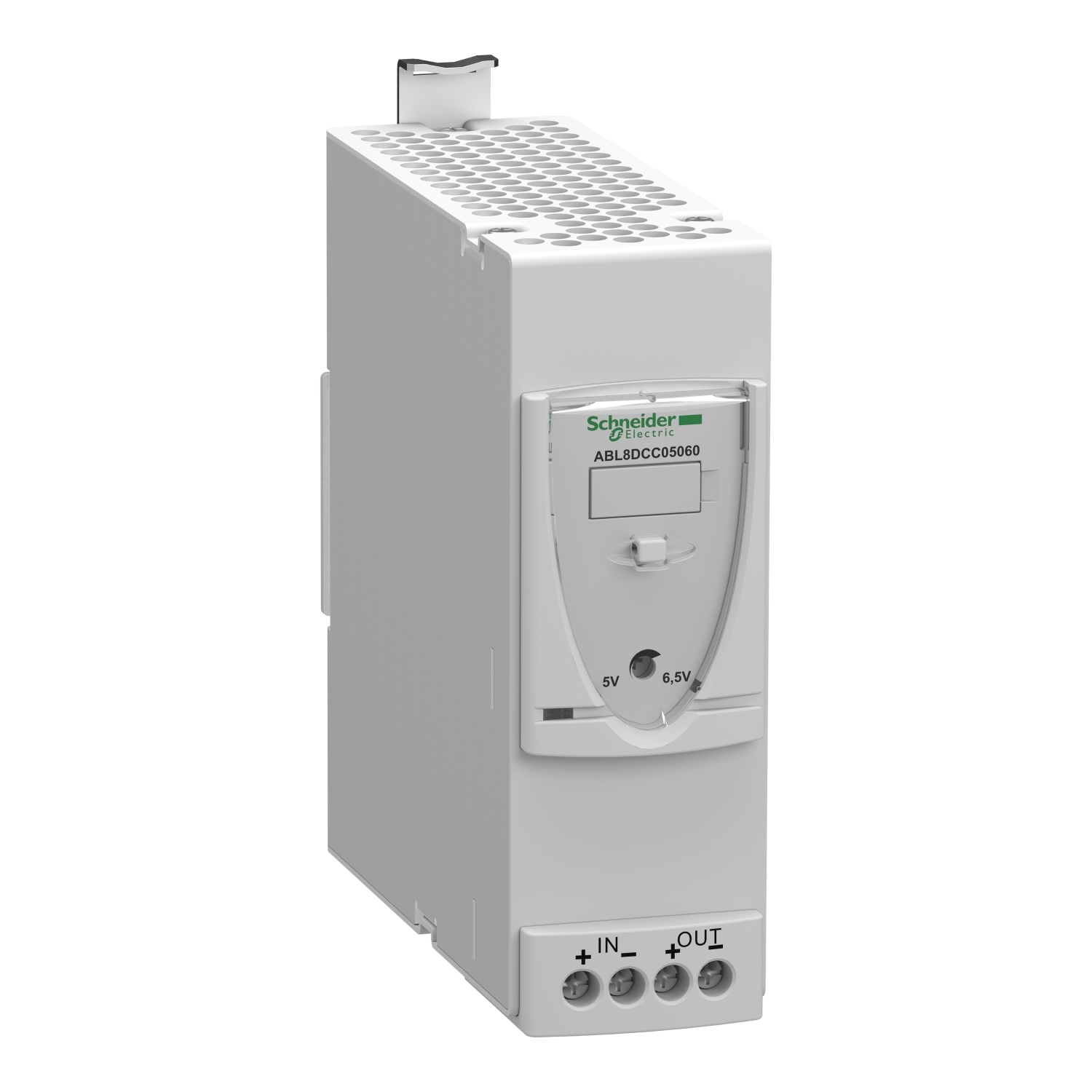

ABL8DCC05060 Phaseo Regulated Switch Mode Converter Module, 5 V DC Input, 30 W Power Rating, 6 A, DIN Rail Mount

MFR:
Schneider Electric
MFR #:
ABL8DCC05060
Item #:
1561394

Availability

Location Available Qty
Available Available to Order
$377.62 each

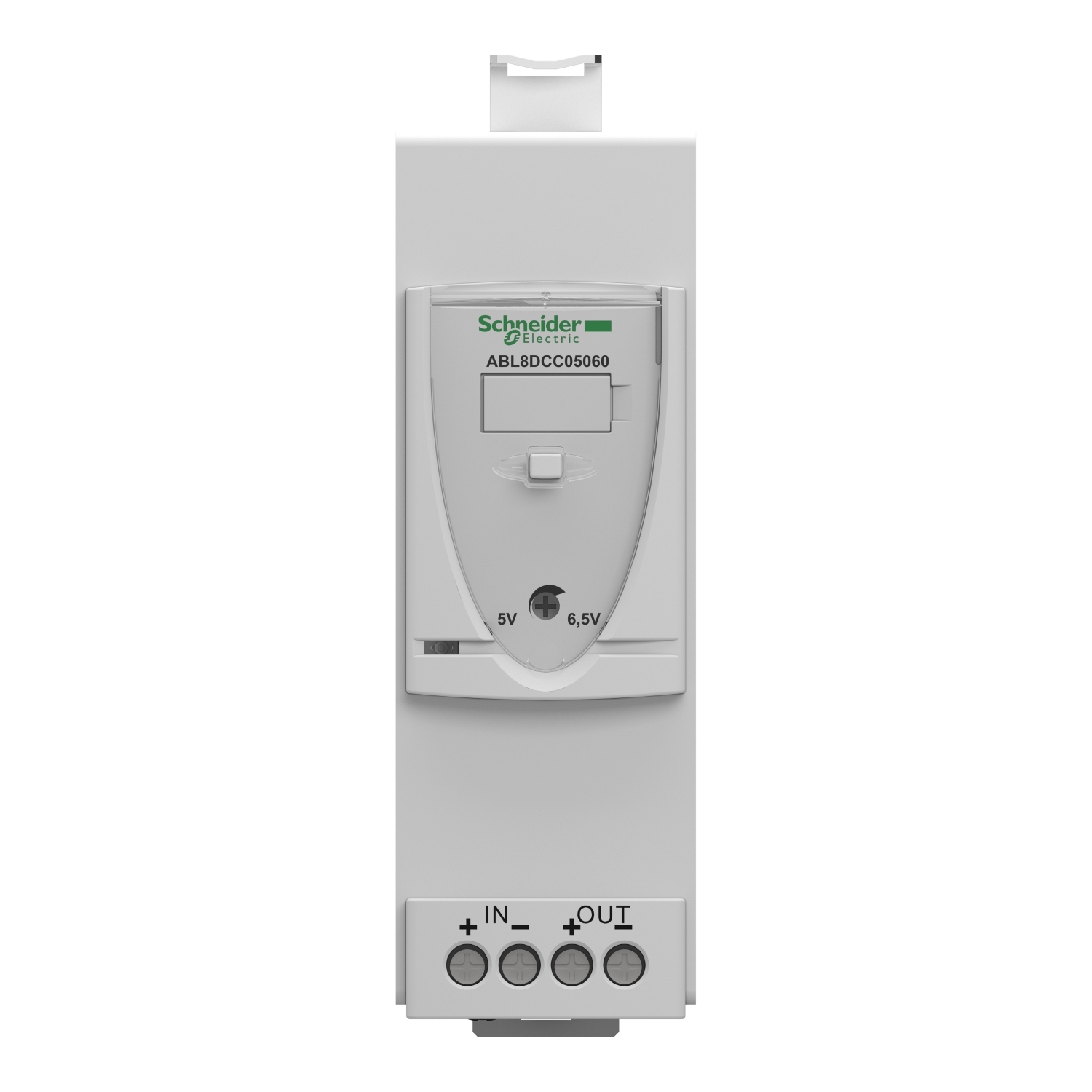

This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 0.25A at 5V DC and a rated power output of 30W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Manuals and Documentation
Catalog Number ABL8DCC05060
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Philippines
Made in USA No

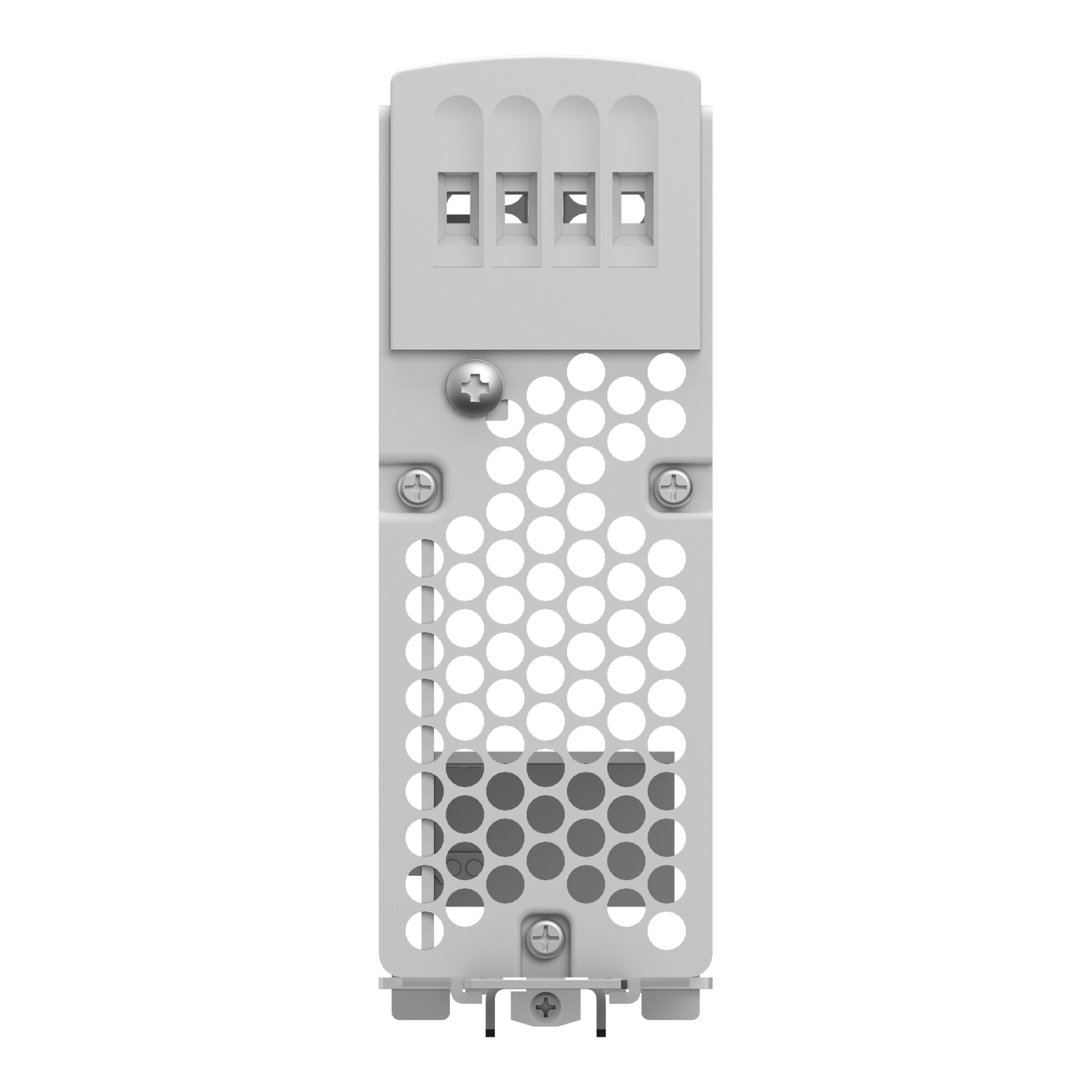

Connection Input connection screw type terminals 2 x 0.5...2 x 4 mm² AWG 24...AWG 10;output connection screw type terminals 2 x 0.5...2 x 4 mm² AWG 24...AWG 10
Input Voltage 24...28.8 V DC

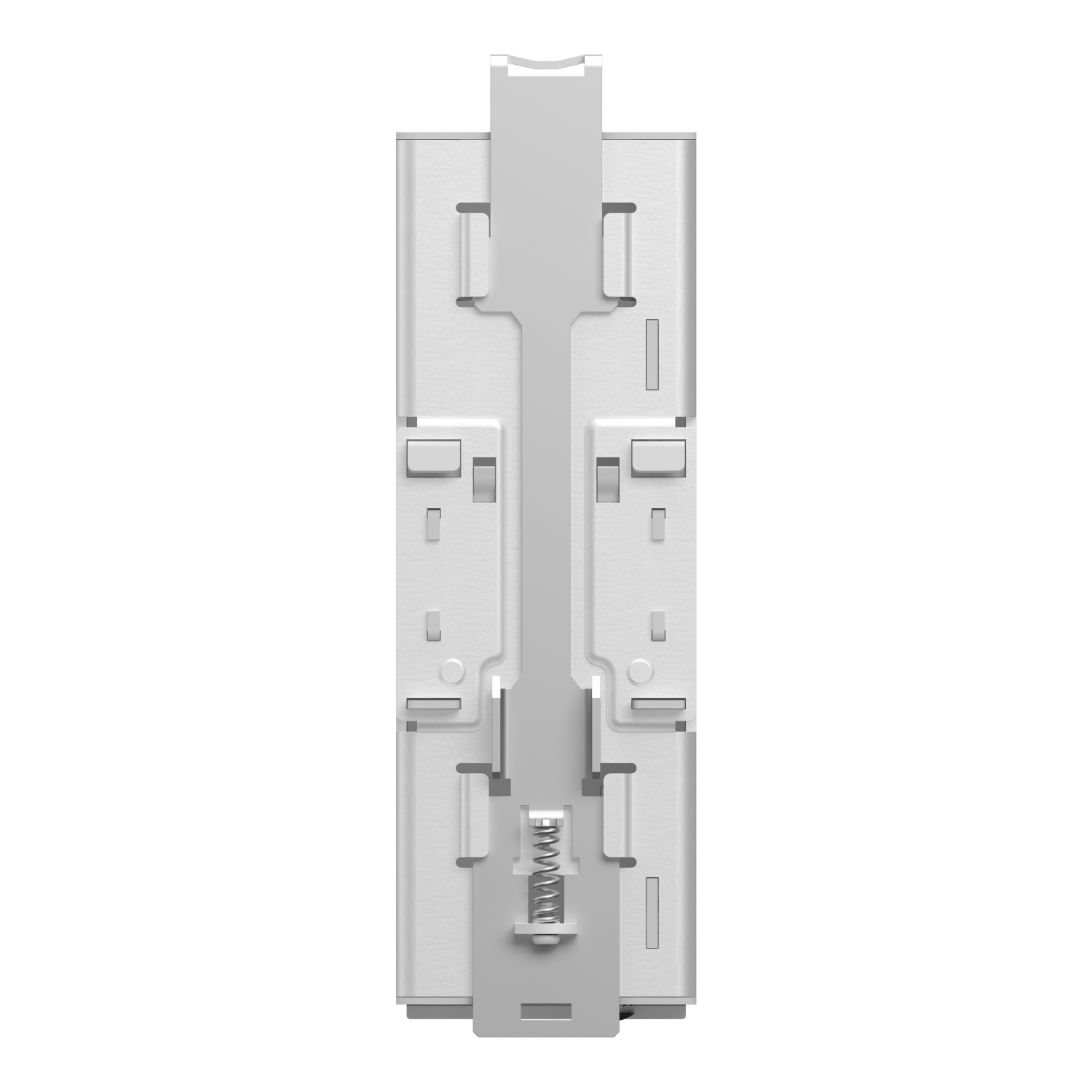

Mounting Din Rail
Output Voltage 5 V DC
Special Features for output voltage (> 4 V) 1 LED (green);Against reverse polarity
Standard Induced electromagnetic field IEC 61000-4-6 level 3;radiated electromagnetic field IEC 61000-4-3 level 3;rapid transient IEC 61000-4-4 level 3;surge IEC 61000-4-5 level 2;conducted/radiated emissions EN 55022 Class B;electrostatic discharges IEC 61000-4-2;emission IEC 61000-6-3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1452671&lang=en-us
GTIN 03389119406888
Item Type Converter module
