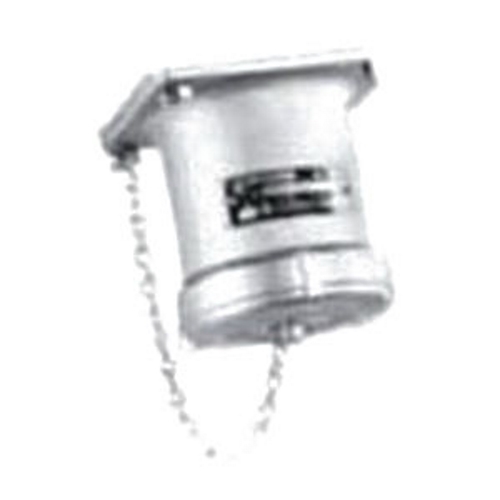

Grounding Style 2 AE Series Screw Cap Receptacle; 60 Amp, 600 Volt AC/250 Volt DC, 4-Pole, 3-Wire, Pressure Wire Terminal
- MFR:
- Appleton Electric
- MFR #:
- AE648
- UPC:
- 781381130004
- Item #:
- 156064
Grounding Style 2 AE Series Screw Cap Receptacle; 60 Amp, 600 Volt AC/250 Volt DC, 4-Pole, 3-Wire, Pressure Wire Terminal
- MFR #:
- AE648
- UPC:
- 781381130004
- Item #:
- 156064
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,860.73
each
AE Series Grounding Style 2 Receptacle, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 8 - 4 AWG, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC, 250 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Mounting: Box, Connection: Pressure Wire Terminal, Finish: Epoxy Powder Coat, Dimensions: 4.50 IN Width X 4.50 IN Height X 4.38 IN Depth, Standard: UL 1682, UL 1686, For AEP6462 Clamping Ring Plug
Manuals and Documentation
Features
- Discontinued
| Catalog Number | AE648 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 60 |
| Application | For AEP6462 Clamping Ring Plug |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Mounting | Box |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Special Features | Screw cap; Weatherproof; Grounding style: shell and extra pole; Contacts exert constant pressure along the entire contact surface, providing electrical continuity; Solid brass contacts with beryllium copper springs; Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking; Fiber glass reinforced phenolic insulation blocks; For welders, generators, compressors, pumps, similar apparatus |
| Standard | UL 1682, UL 1686 |
| UPC | 781381130004 |
| GTIN | 00781381130004 |
| Item Type | AE Series Grounding Style 2 Receptacle |
| Voltage Rating | 600 VAC, 250 VDC |
| Wire Size | 8 - 4 AWG |
