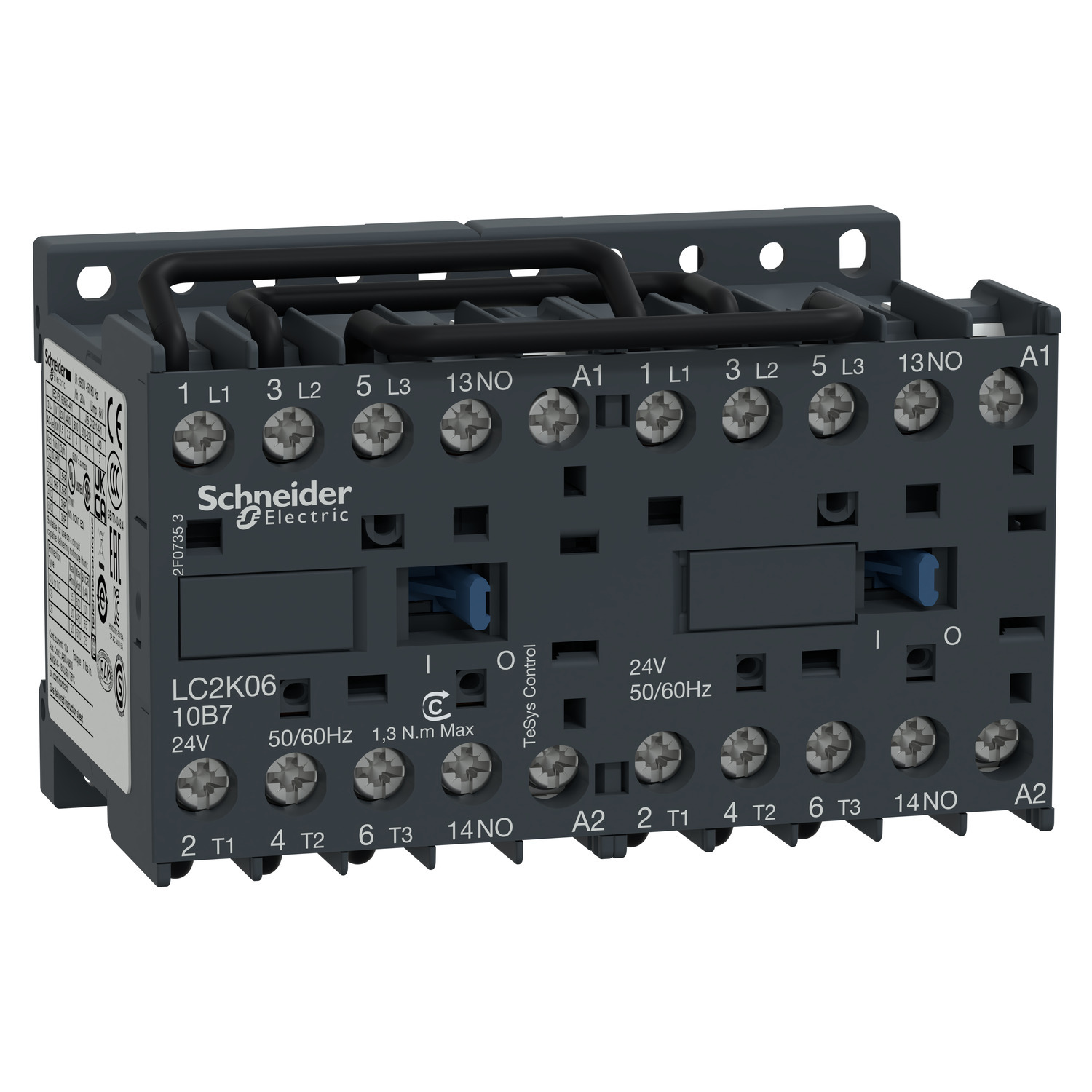

LC2K0610U7 TeSys K LC2K Reversing Miniature IEC Contactor, 230 to 240 V AC V Coil, 6 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC2K0610U7
- Item #:
- 156062
LC2K0610U7 TeSys K LC2K Reversing Miniature IEC Contactor, 230 to 240 V AC V Coil, 6 A, 3NO Contact, 3 Poles
- MFR #:
- LC2K0610U7
- Item #:
- 156062
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
LC2K0610U7 is a compact 3-pole TeSys K reversing contactor from Schneider Electric for motor applications. Rated 6A AC-3 2.2kW@400V, it includes a 240V 50/60Hz AC coil, 2NO auxiliary contacts, a mechanical interlock and pre-wired reversing circuit. LC2K0610U7 is a 3-pole TeSys K reversing contactor from Schneider Electric for simple motor applications rated up to 2.2kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it is assembled with a mechanical interlock and a pre-wired reversing circuit. It includes a 240V 50/60Hz AC coil and 2NO built-in auxiliary contacts. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine). Very compact, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Provides a 240V AC coil compatible 50/60Hz and 2NO built-in auxiliary contact. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).
Manuals and Documentation
| Catalog Number | LC2K0610U7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Motor control |
| Coil Voltage | 230...240 V AC 50/60 Hz |
| Contact Configuration | 1 NO |
| Standard | CB Scheme;CCC;UL;CSA;EAC;CE;UKCA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=629446&lang=en-us |
| GTIN | 03389110491302 |
| Item Type | Reversing contactor;LC2K |
