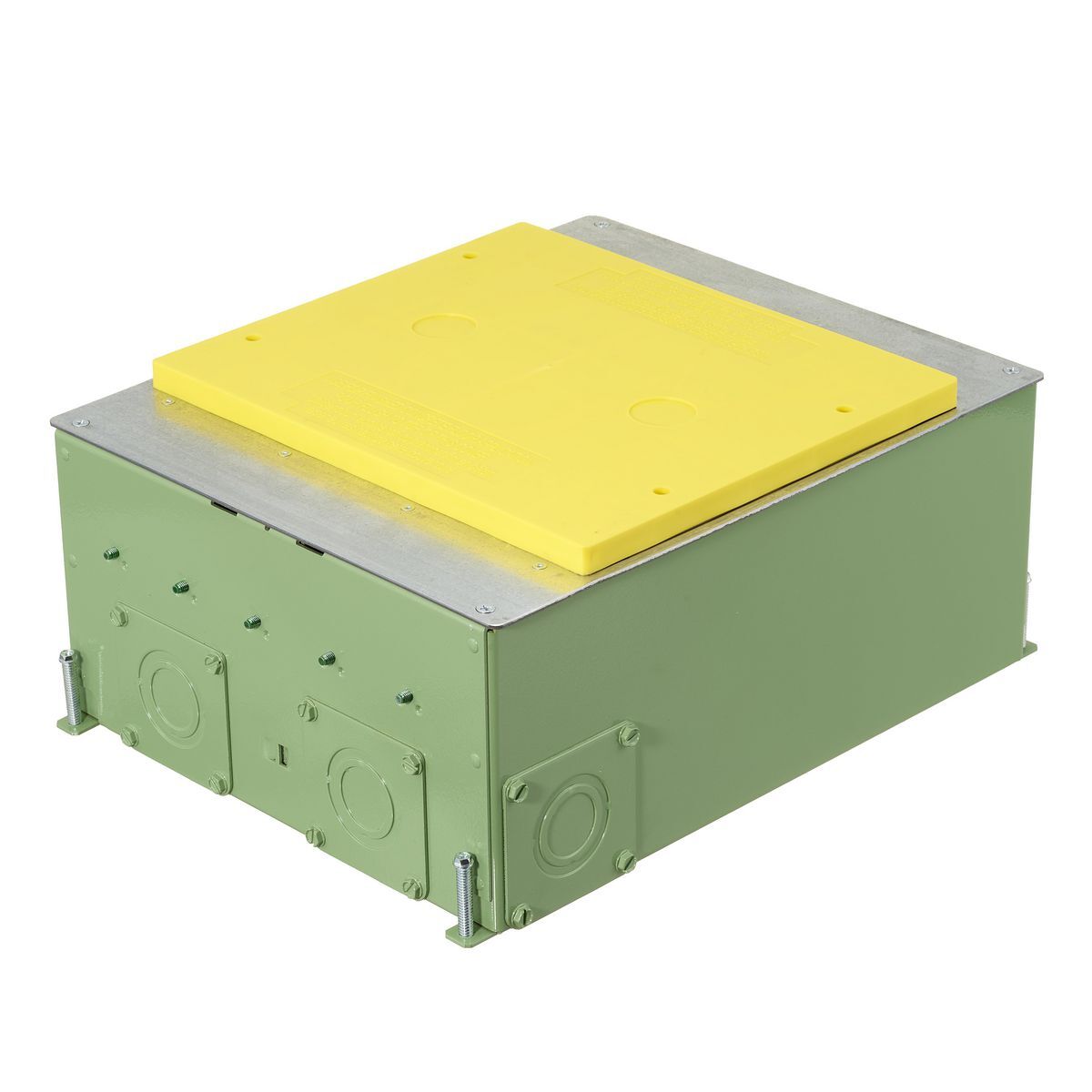

CFB45G55CRE SystemOne ETERNAL Recessed Floor Box, Stamped Steel, 99, 105 cu-in Capacity, 4/5 Gangs, (14) Knockouts, 5.59 in H x 11.09 in W x 14.14 in L
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- CFB45G55CRE
- UPC:
- 783585695402
- Item #:
- 1560125
CFB45G55CRE SystemOne ETERNAL Recessed Floor Box, Stamped Steel, 99, 105 cu-in Capacity, 4/5 Gangs, (14) Knockouts, 5.59 in H x 11.09 in W x 14.14 in L
- MFR #:
- CFB45G55CRE
- UPC:
- 783585695402
- Item #:
- 1560125
Availability
| Location | Available Qty |
|---|---|
| Available | 5 ea |
$621.58
each

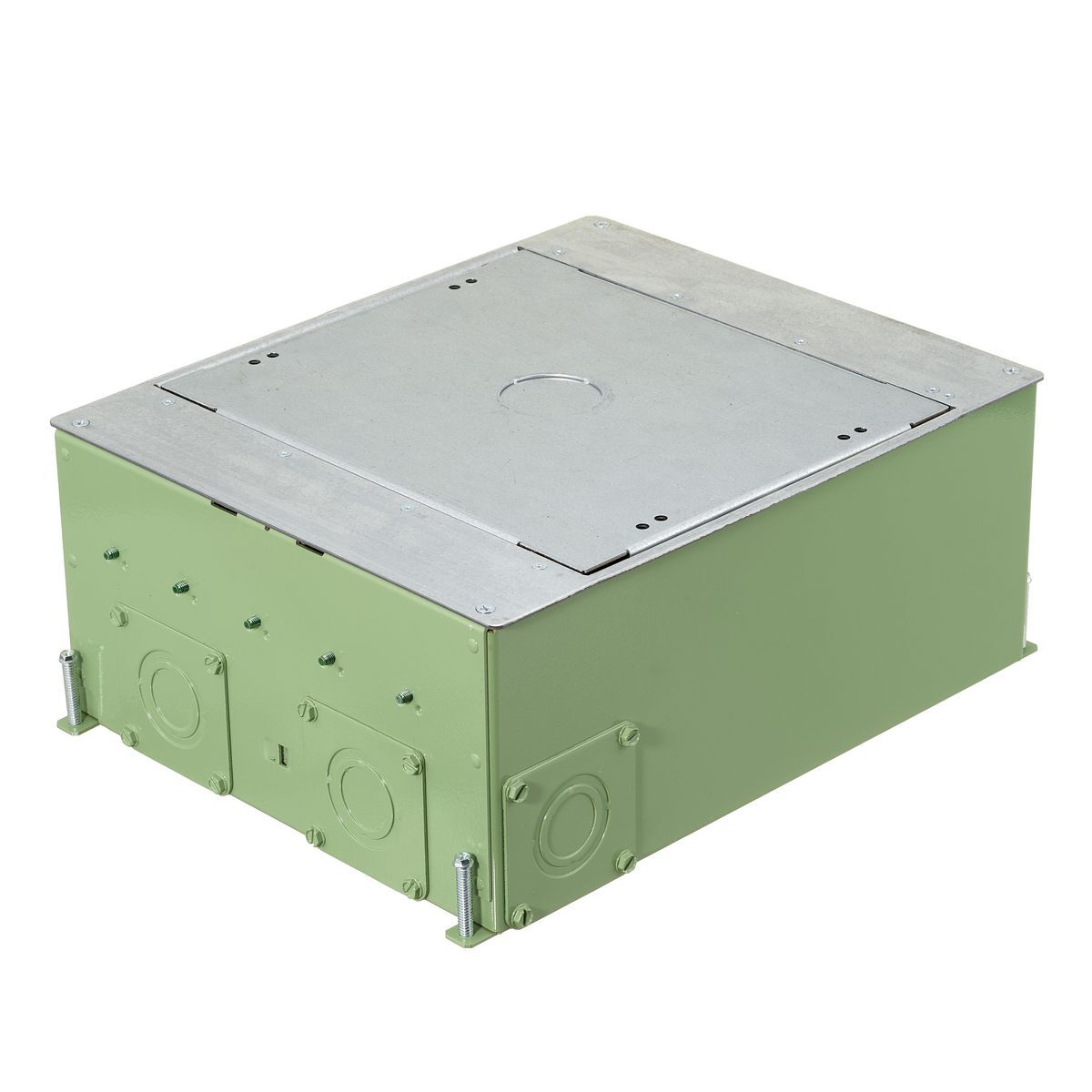

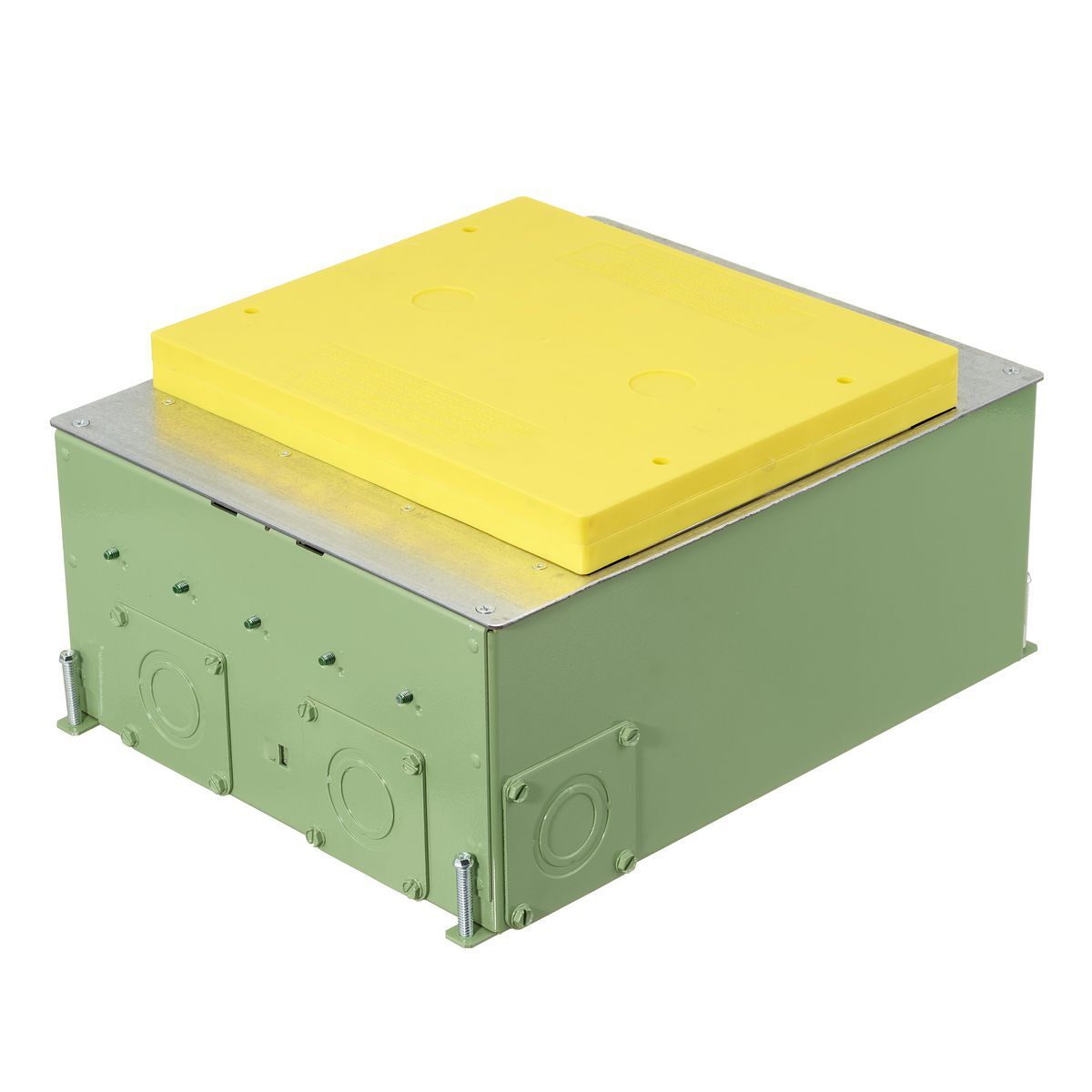

Recessed 4/5-Gang concrete floorbox with rectangular cover, corrosion resistant painted, floorbox for use in concrete floors. The floorbox has 3.75" deep wiring chambers for large AV modules and feed-thru capacity. The floorbox offers the ability for field installed external high capacity hubs (sold separately), includes flush installation cover and 1/2" prepour cap. Each gang includes (1) 6" Solid #12 AWG Conductor grounding pigtail.
Manuals and Documentation
| Catalog Number | CFB45G55CRE |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Use in Concrete Floors |
| Cable Entry | Through Cover |
| Color | Metallic;Green Epoxy Paint |
| Construction | Fabricated |
| Knockouts | 14 |
| Material | Galvanized Stamped Steel |
| Mounting | Field Installed |
| Special Features | Pregalvanzied Stamped Steel Box with Corrosion Resistant Paint; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately) |
| Standard | cULus;UL514 |
| UPC | 783585695402 |
| GTIN | 00783585695402 |
| Item Type | Recessed |
| Length | 14.14 |
| Length UOM | Inch |
| Width | 11.09 |
| Width UOM | Inch |
| Height | 5.59 |
| Height UOM | Inch |
| Size | 4/5-Gang |
