Panduit

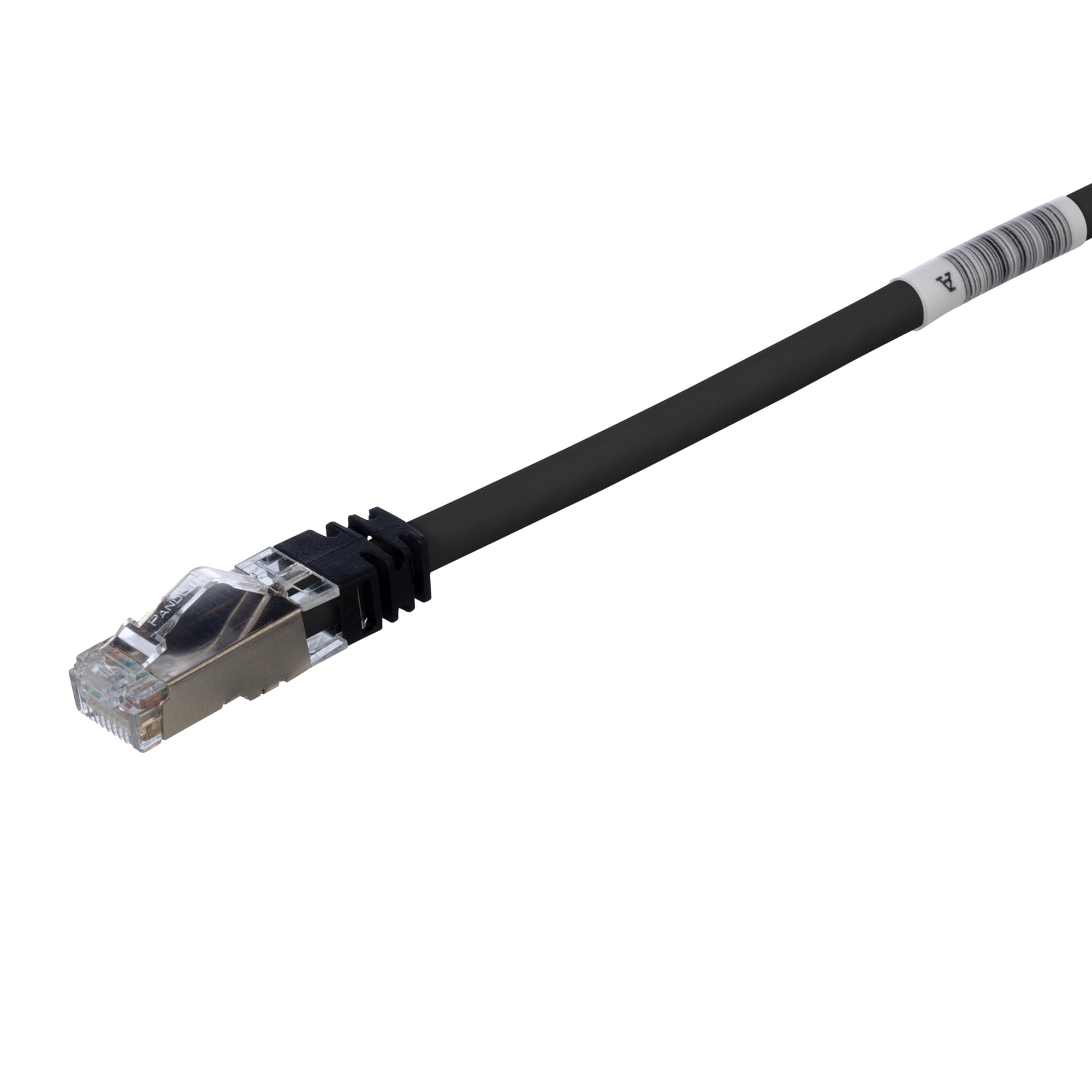

STP6X1MBL 10Gig PanNet TX6A Class EA Patch Cord With TX6A 10Gig Modular Plugs on Each End, Cat 6A, 26 AWG S/FTP Copper Shielded Stranded Conductor, RJ45 Modular Plug x Modular Plug Boot Connector, 1 m L Cord, Black

MFR:
Panduit
MFR #:
STP6X1MBL
UPC:
074983712090
Item #:
1557816

Availability

Location Available Qty
Available Available to Order
$31.82 each

This TX6A 10Gig Cat 6A STP Patch Cord is a 1-Meter, Black cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number STP6X1MBL
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.
Color Black
Conductor Material Copper
Jacket Material LSZH Material
Plug Type Modular Plug
Standard Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/
UPC 074983712090
GTIN 00074983712090
Item Type Patch Cord
Length 3.28
Length UOM Inch
Outside Diameter 0.24 IN
Temperature Rating 140 °F
Wire Size 26
