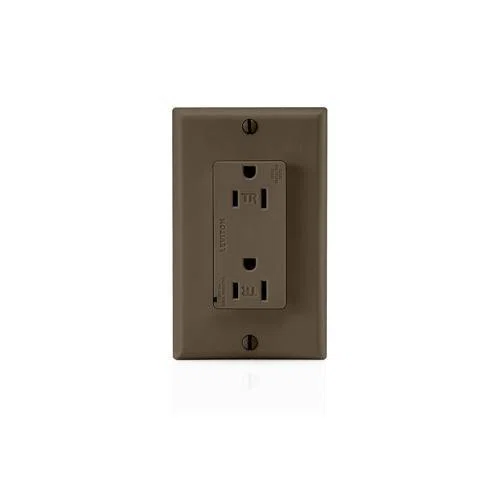

T5280 Type 3 2-Pole 3-Wire Self-Grounding Tamper Resistant Straight Blade Surge Protective Receptacle, 125 V AC, 15 A, 5 kA Short Circuit
- MFR:
- Leviton
- MFR #:
- T5280
- UPC:
- 078477434215
- Item #:
- 1556065
T5280 Type 3 2-Pole 3-Wire Self-Grounding Tamper Resistant Straight Blade Surge Protective Receptacle, 125 V AC, 15 A, 5 kA Short Circuit
- MFR #:
- T5280
- UPC:
- 078477434215
- Item #:
- 1556065
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$96.39
each
Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton® surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Manuals and Documentation
Features
- Tamper resistant shutter mechanism prevents incidental contact with energized contacts
- Indicator light provides visual indication that equipment is being protected
- EMI/RFI noise filtering
- Wide variety of color options aid in identifying different types of equipment or applications
- Point of use protection for up to 18000 A of surge current total
- Back and side wired design with durable metal mounting strap
- Single, duplex and 4-in-1 versions
- Rated at NEMA 5-15R
| Manufacturer Part Number | T5280 |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477434215 |
| Country Of Origin | MX |
| Amperage Rating | 15 A |
| Color | Brown |
| Material | Polycarbonate |
| Type | Type 3 2-Pole 3-Wire Self-Grounding Tamper Resistant |
| Voltage Rating | 125 V AC |
| Size | 4.21 in H x 1.77 in W x 1.56 in D |
| Alternative Part Number | 10770628 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 10 years Limited |
| Standards Approvals | ANSI C73 | NOM 057 | NEMA WD1/WD6 | UL 498/1449 | CSA C22.2 | UL94 V-2 Flammability Rating |
| Application | Commercial Applications |
| Connection | Back/Side Wired |
| Mounting | Surface |
| Operating Temperature | -40 to 60 deg C |
| Outlet | Duplex |
| Short Circuit Current Rating | 5 kA |
| Type Of Indicators | Lights |
