Telemecanique

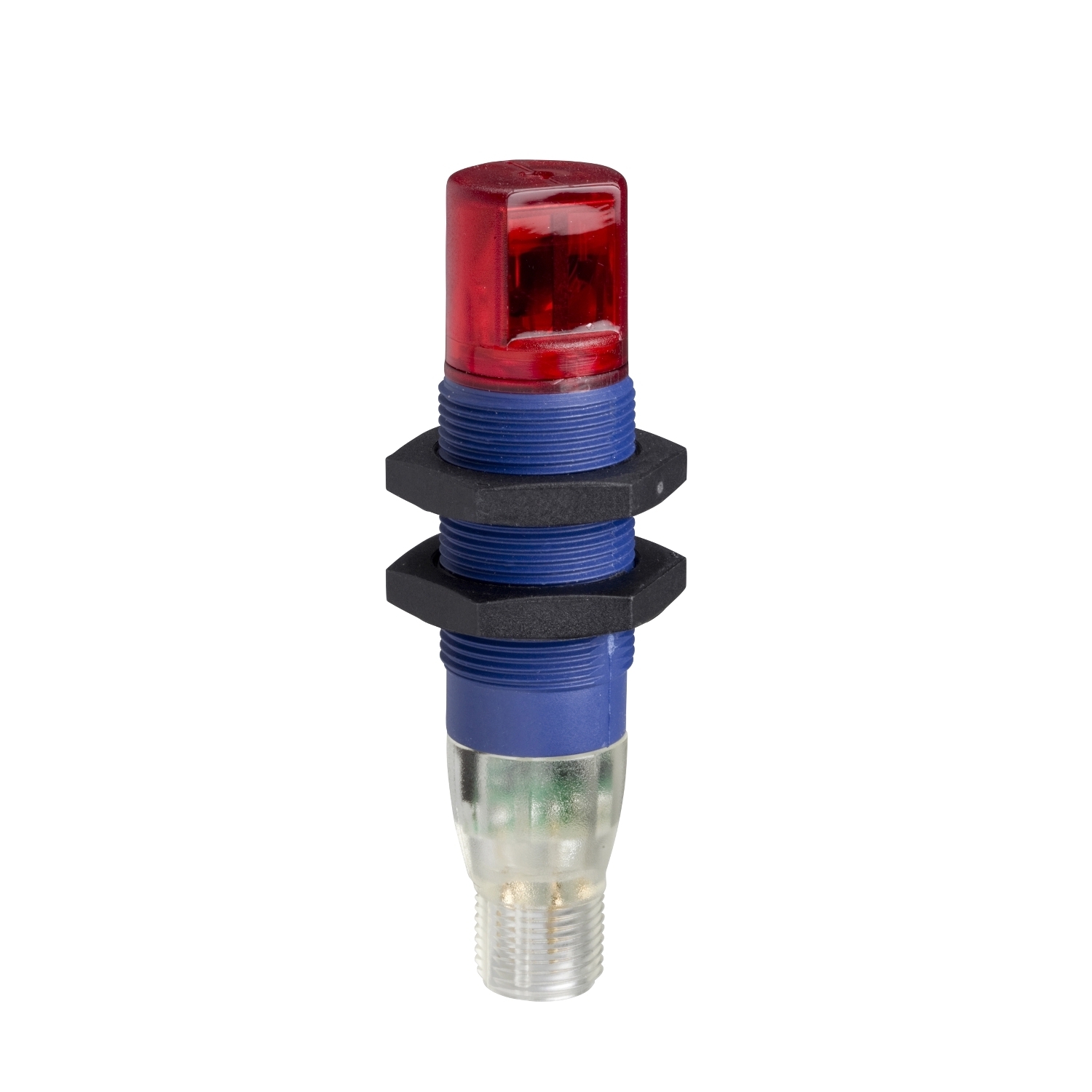

XUB2BKSWM12T OsiSense XU 3-Wire 90 deg Lateral Corrosion-Resistant Dusttight/Watertight Photoelectric Sensor, M18 Cylindrical Shape, 20 m, Infrared Sensing Beam, 1 ms Response, Solid State Output

MFR:
Telemecanique Sensors
MFR #:
XUB2BKSWM12T
UPC:
785901509561
Item #:
155531

Availability

Location Available Qty
Available Available to Order
$80.16 each

This photo-electric sensor is part of the XU range, single mode function. It is a design 18, metal transmitter with an M12 connector. Three-wire DC, solid-state output. Thru-beam system with a 15m sensing distance. The line of sight is 90 to case axis.

Manuals and Documentation
Catalog Number XUB2BKSWM12T
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connection 1 male connector M12, 4 pins
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,NICKEL PLATED BRASS
Operating Cycles <= 500 Hz
Output Discrete;Solid state
Sensing Range 15-15 M THRU BEAM NEED A RECEIVER,> 16.4...49.21 FT (> 5...15 M)
Special Features 1 LED green)supply on
Standard CE-UL-CSA,IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872826&lang=en-us
UPC 785901509561
GTIN 03389110149630
Item Type General purpose single mode;Thru beam;Cylindrical M18;Photo-electric sensor transmitter
Size 0.71
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
