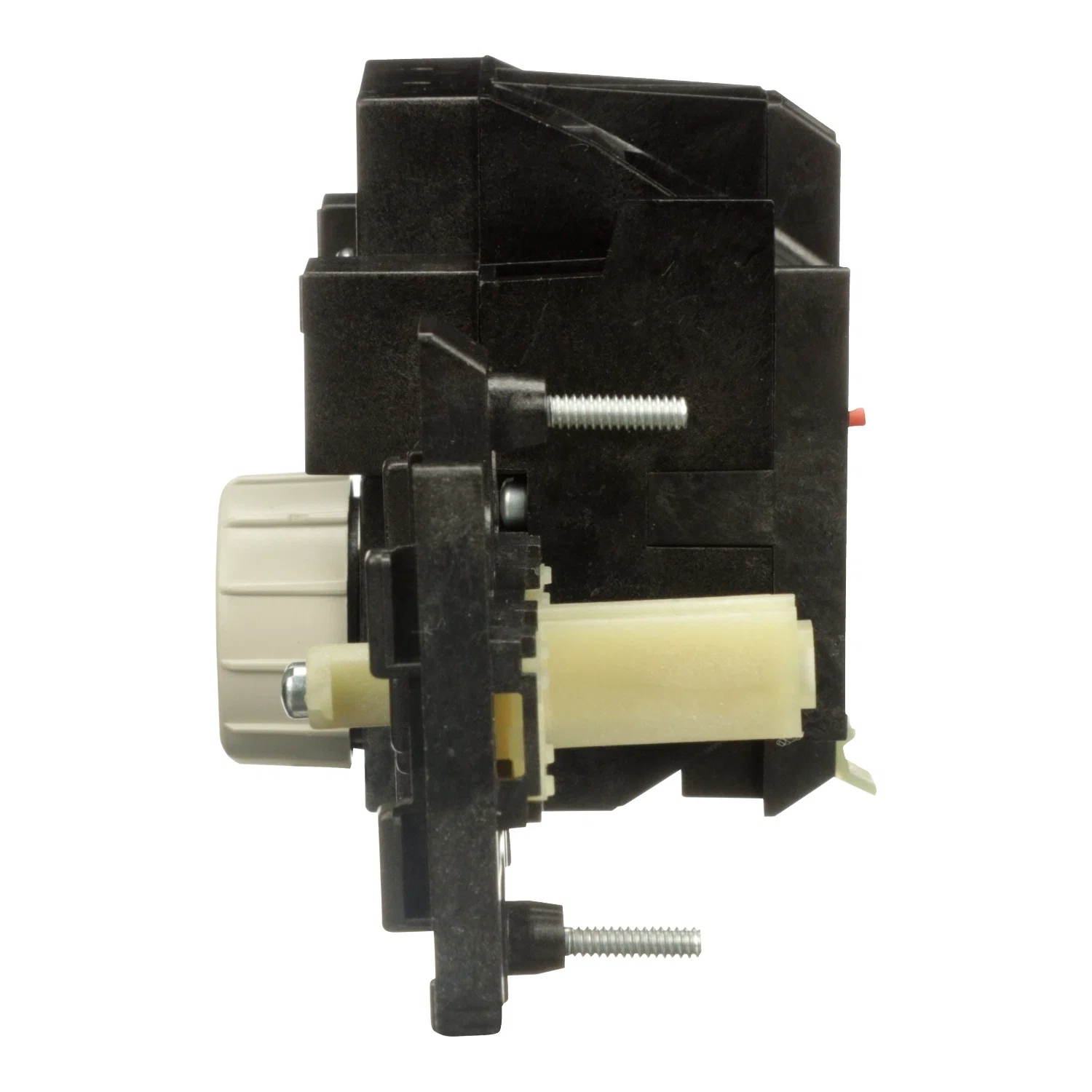

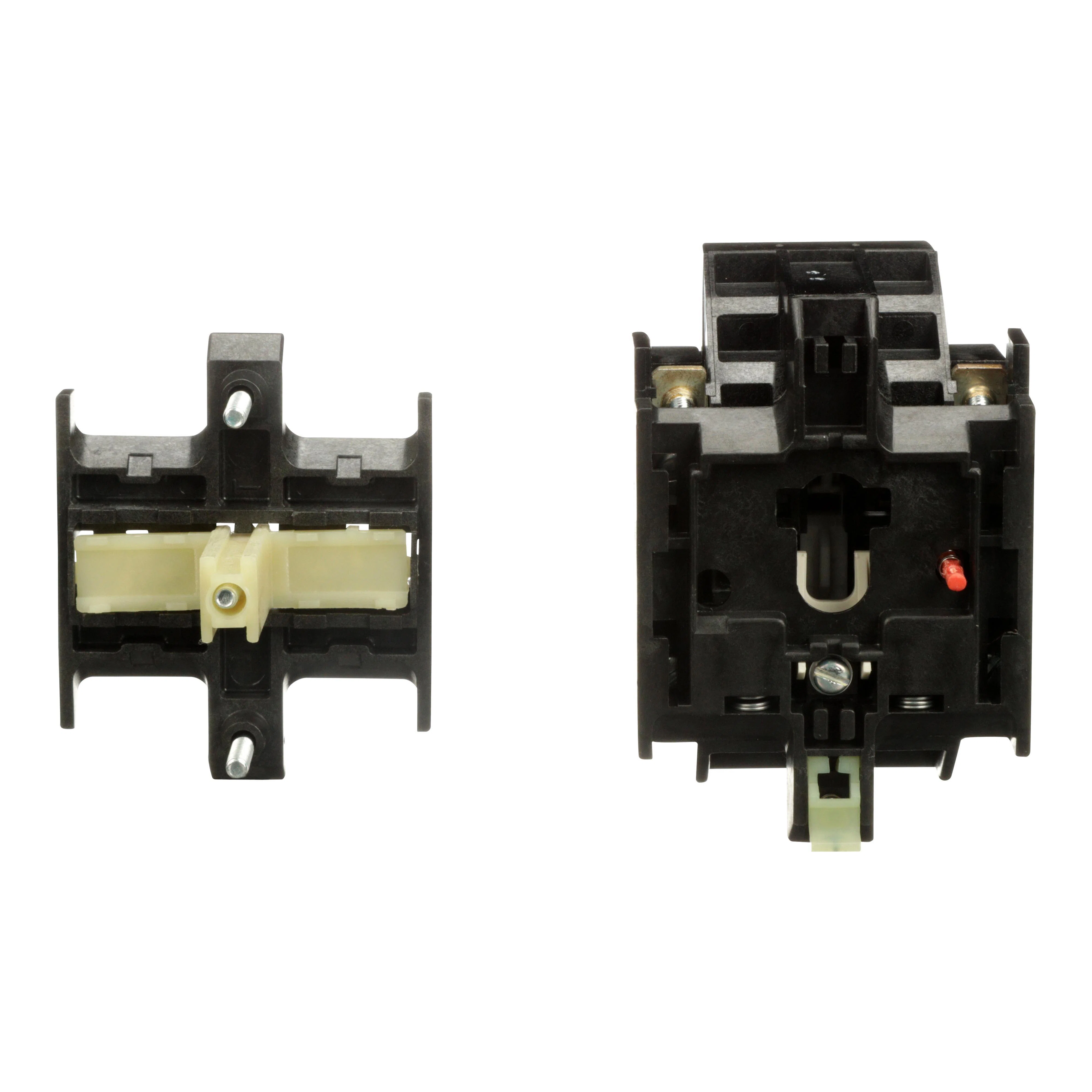

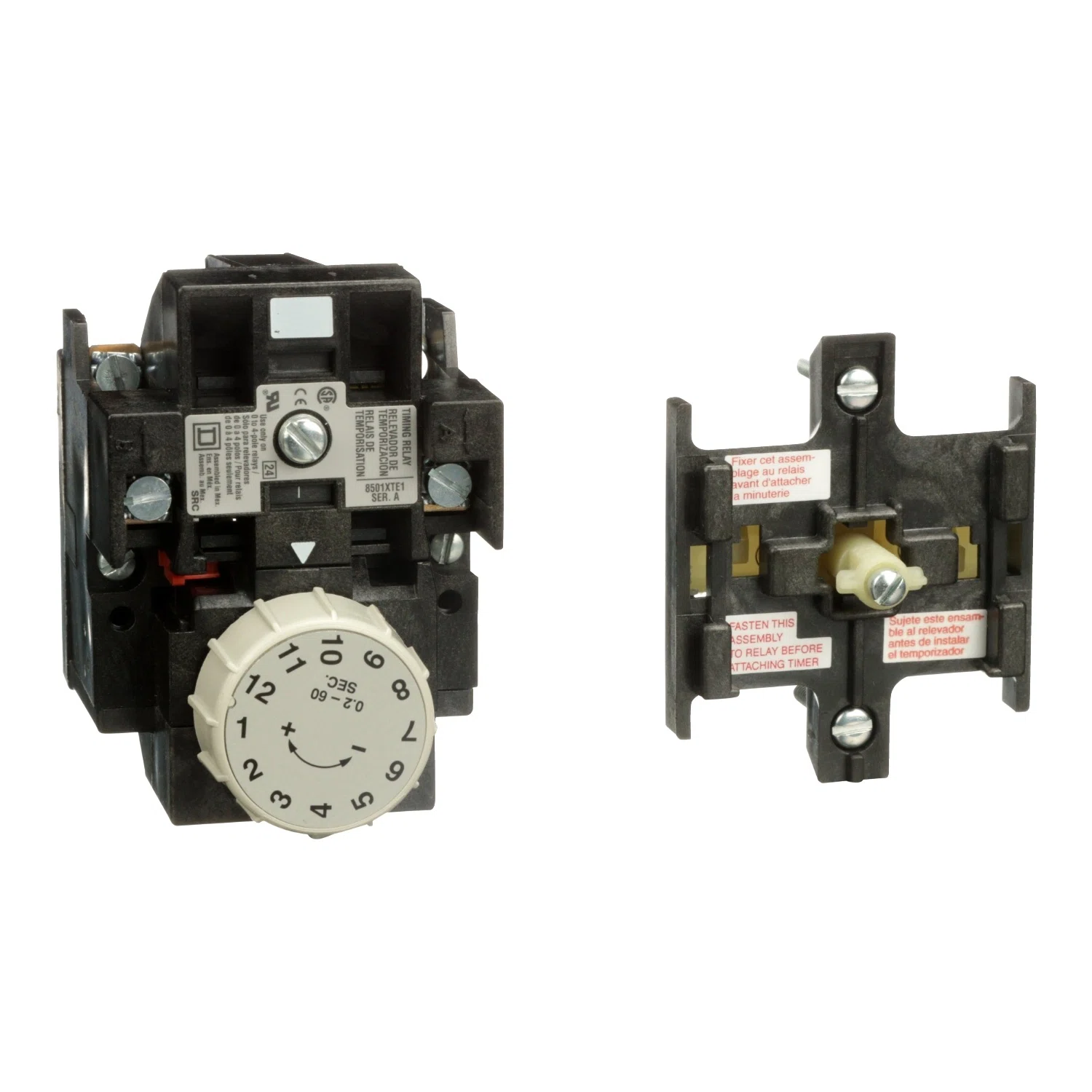

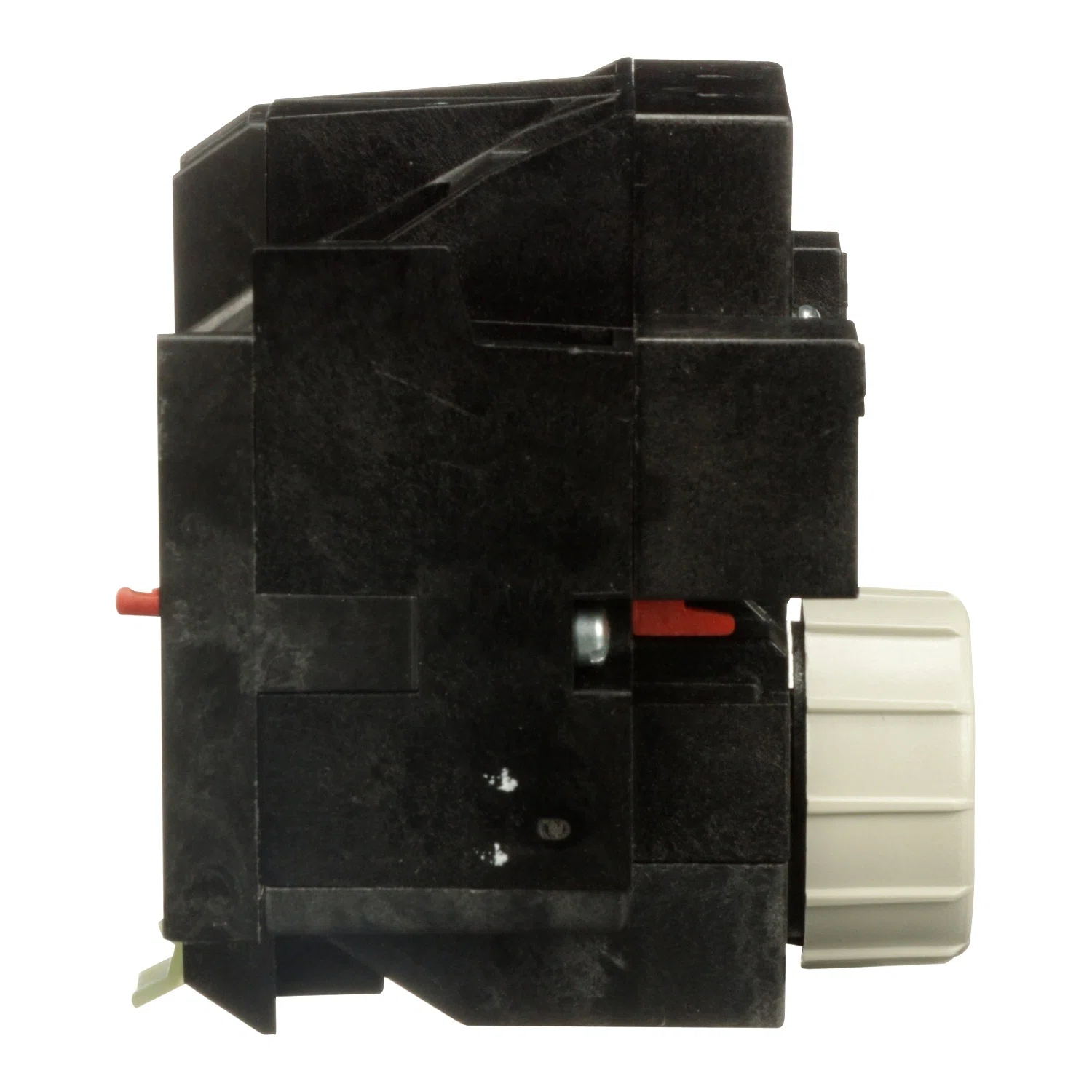

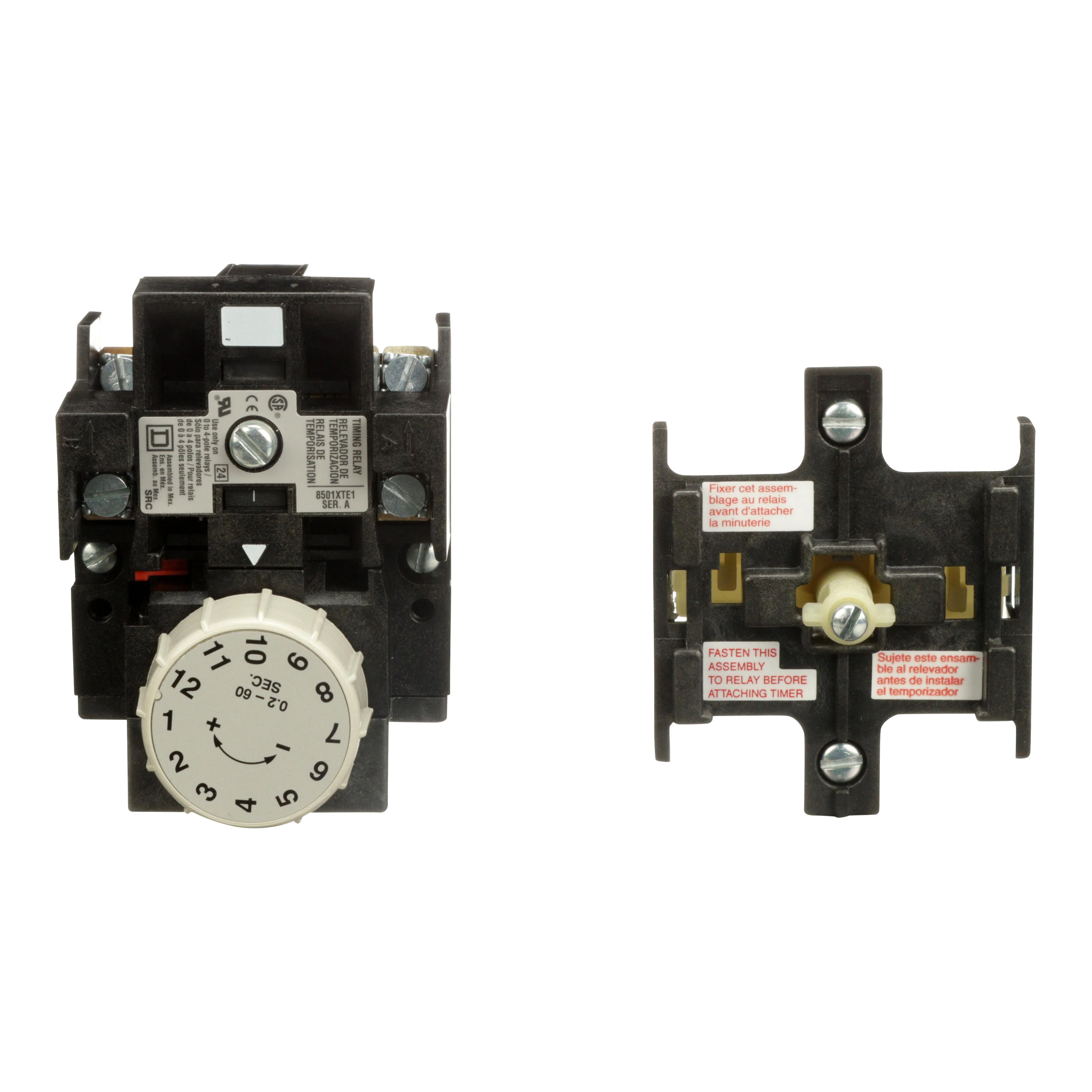

8501XTE1 Pneumatic Relay Timer Attachment, 600 V AC, 10 A, For Use With 8501X Series Control Relay, 1NO-1NC 1 Form A/1 Form B Contact, 8 Poles
- MFR:
- Schneider Electric
- MFR #:
- 8501XTE1
- UPC:
- 785901537342
- Item #:
- 155486
8501XTE1 Pneumatic Relay Timer Attachment, 600 V AC, 10 A, For Use With 8501X Series Control Relay, 1NO-1NC 1 Form A/1 Form B Contact, 8 Poles
- MFR #:
- 8501XTE1
- UPC:
- 785901537342
- Item #:
- 155486
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This pneumatic timer attachment can be added to a standard 4 pole relay. This timer attachment comes as standard in the on delay mode but can be converted to off delay. The timer attachment comes with one normally closed and one normally open timed contact. The contacts are the standard 8501XC1 relay cartridge. The timing range of this timer attachment is from 0.2 to 60 seconds. This timer attachment is UL listed and CSA certified. The timing range of this timer attachment is from 0.2 to 60 seconds. This timer has screw clamp terminals. This timer attachment is UL listed and CSA certified.
Manuals and Documentation
Features
- Wide range of time delay for adjustment - from 0.01 s to 999 hr
- Unprecedented accuracy, predictive maintenance, and superior security
- Flexible choice of screw or spring connection terminals for wiring
| Manufacturer Part Number | 8501XTE1 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901537342 |
| EAN | 0785901537342 |
| Country Of Origin | MX |
| Amperage Rating | 10 A |
| Suitable For Use With | 8501X Series Control Relay |
| Type | Pneumatic |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 8084212 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | RoHS Compliant | PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Contact Form | 1NO-1NC 1 Form A/1 Form B |
| Number Of Poles | 8 |
