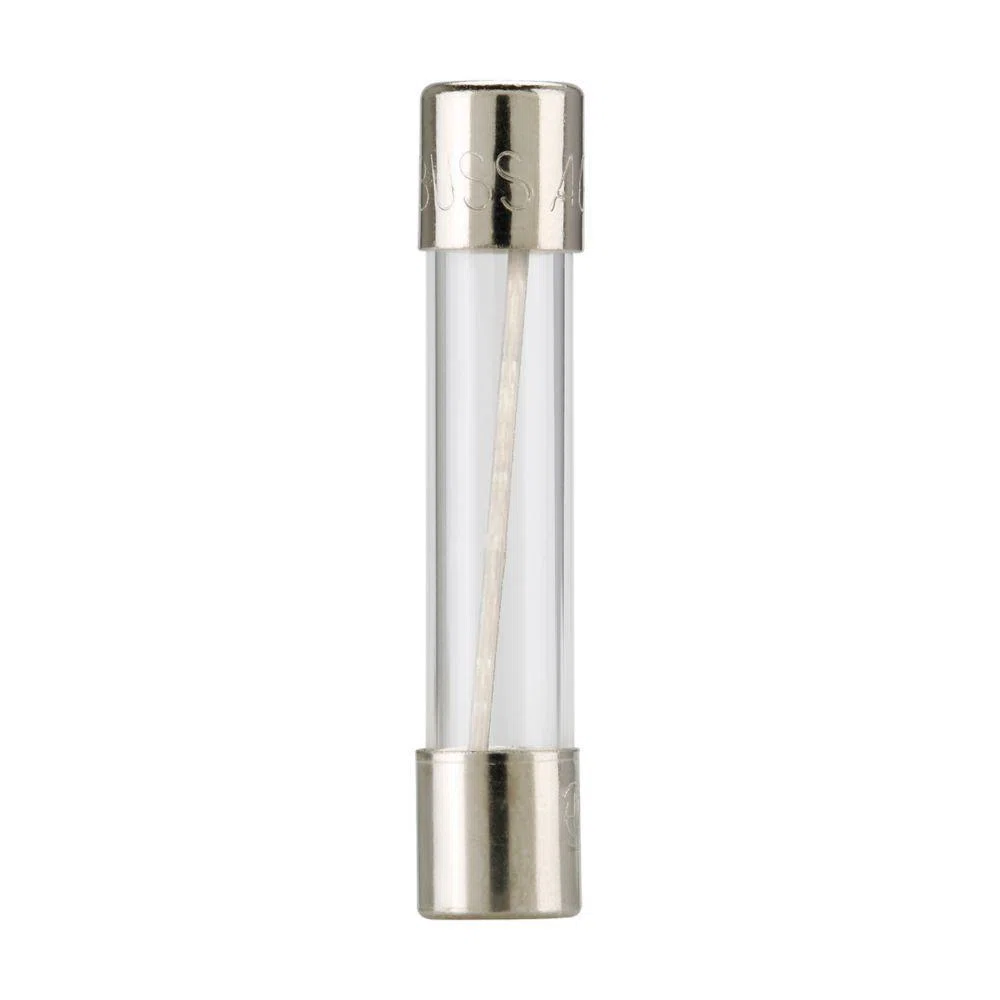

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Manuals and Documentation
Features
- Fast acting for maximum component protection
- Wide amp/volt ratings allow versatility of protecting electronic circuits
- 100 A at 250 VAC, 10 kA at 250 VAC interrupt rating
- 60 min maximum at 135%, 120 sec maximum at 200% response time
| Manufacturer Part Number | AGC-3-1/2-R |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712655125 |
| Country Of Origin | TW |
| Amperage Rating | 3.5 A |
| Material | Glass |
| Mounting Type | Holder |
| Series | AGC |
| Type | Small Dimension |
| Voltage Rating | 250 V AC |
| Alternative Part Number | 9383135 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | RoHS Compliant | CSA Certified | CSA Class 1422-01 | UL File No. 053787 | CE Certified | UL Listed | UL 248-14 Guide JDYX | UL File No. E19180 |
| Application | Electronic Circuit Applications |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Body Type | Cylindrical |
| Element | Single |
| Indicating Non Indicating | Non-Indicating |
| Interrupt Rating | 100 A, 10 kA |
| Rejection Non Rejection | Non-Rejection |
| Response Time | 60 min, 120 s |
| Terminal Type | Ferrule |
