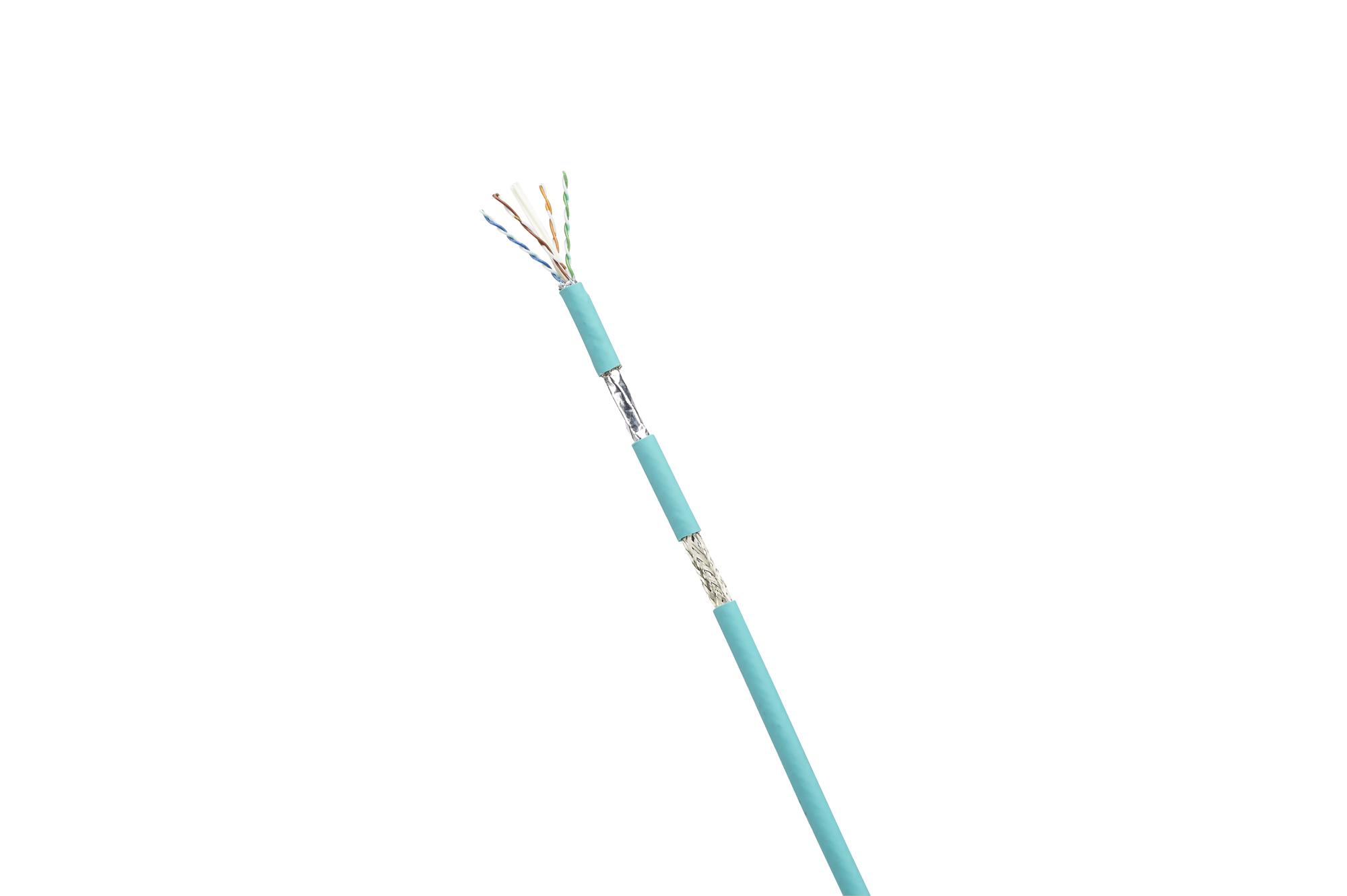

ISFCH6X04ATL-UG IndustrialNet Cat 6A Copper Cable, Reel Packaging, 80 V, (4) 24 AWG SF/UTP Stranded Copper Conductor, 1 ft L
- MFR:
- Panduit
- MFR #:
- ISFCH6X04ATL-UG
- UPC:
- 613056318694
- Item #:
- 1553913
ISFCH6X04ATL-UG IndustrialNet Cat 6A Copper Cable, Reel Packaging, 80 V, (4) 24 AWG SF/UTP Stranded Copper Conductor, 1 ft L
- MFR #:
- ISFCH6X04ATL-UG
- UPC:
- 613056318694
- Item #:
- 1553913
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3.4313
each
The Cat 6A SF/UTP copper cable is constructed of 24/7AWG stranded copper conductors with HDPE polyethylene insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.
Manuals and Documentation
| Catalog Number | ISFCH6X04ATL-UG |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | Teal |
| Conductor Material | Copper |
| Construction | SF/UTP |
| Insulation Material | High-Density Polyethylene |
| Jacket Material | Thermoplastic Elastomer |
| Number of Conductors | 4 |
| Resistance | UV-Resistant |
| Standard | Exceeds the requirements IEC 61156-6 Category 6A, ANSI/TIA-568-C.2 Category 6A;Standard compliances: UL AWM Style 2463 (80 Degrees C 600V)Flex Life Test: 1 million cycles at 10 x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million |
| UPC | 613056318694 |
| GTIN | 00613056318694 |
| Item Type | Industrial Copper Cable |
| Outside Diameter | 0.32 IN |
| Temperature Rating | 176 °F |
| Voltage Rating | 80 |
