Discontinued

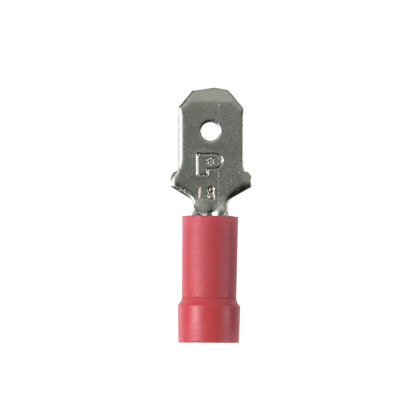

Pan-Term DV18-250MB-MY Loose Piece Disc
- MFR:
- Panduit
- MFR #:
- DV18-250MB-MY
- UPC:
- 074983410286
- Item #:
- 155140
Discontinued
Pan-Term DV18-250MB-MY Loose Piece Disc
- MFR #:
- DV18-250MB-MY
- UPC:
- 074983410286
- Item #:
- 155140
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.98 (24.9 mm) long and 0.25 (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
Manuals and Documentation
| Catalog Number | DV18-250MB-MY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | funnel Entry |
| Finish | Nickel-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983410286 |
| GTIN | 00074983410286 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
| Cross Reference Products | 3M MVU18-250DMX|ABBInstall 18RA-250T|ABBInstall KV18-250MD-M|ABBInstall RA2517|ABBInstall WCTR-188-2-D|Burndy QP18M250D|Burndy QP18M25X03D|Gardner 10-141M|GCWaldom N-5628-SP|Greaves M18-250V |
