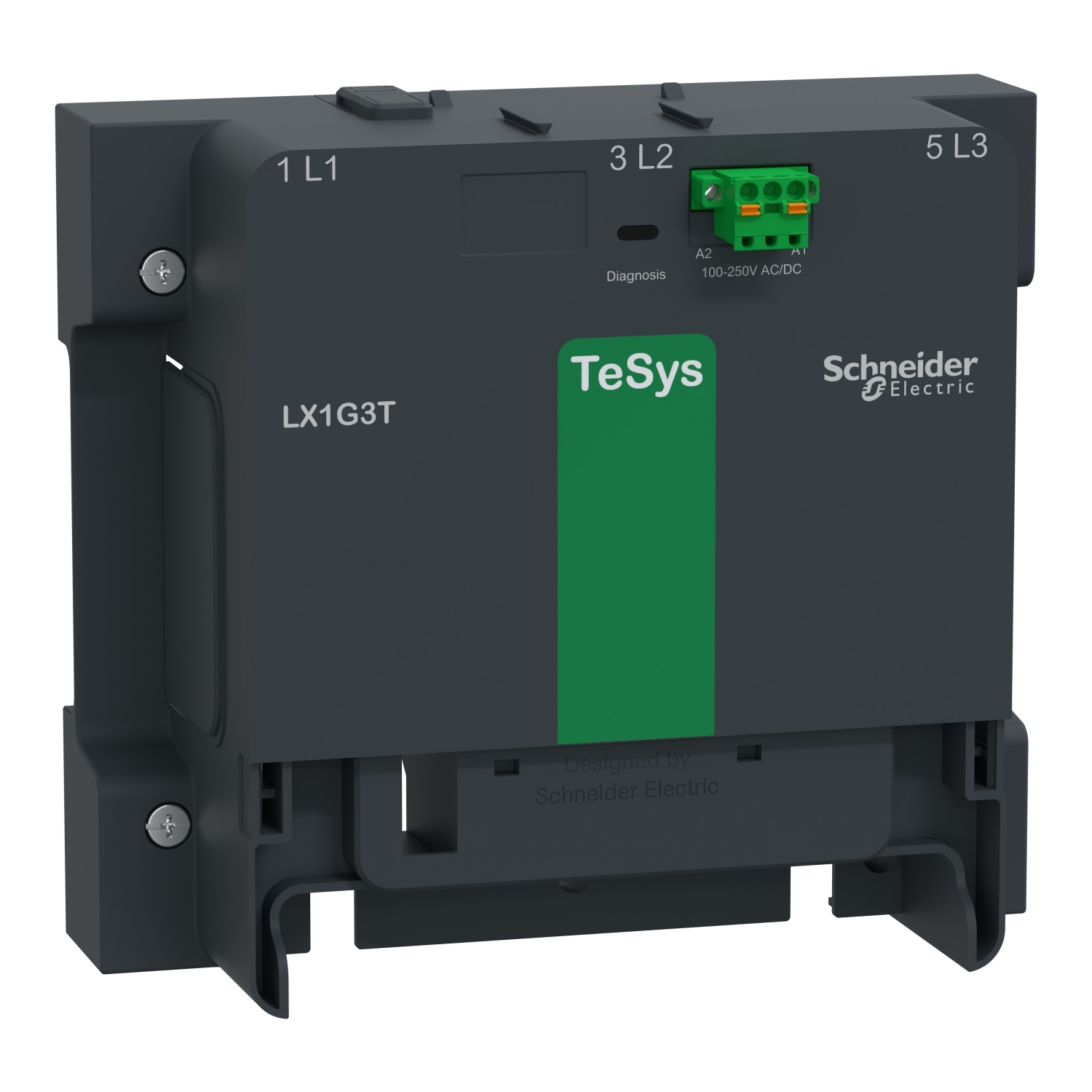

LX1G3TKUEN LX1G Control Module, 3 Poles, For Use With LC1G630-800, 3 pole
- MFR:
- Schneider Electric
- MFR #:
- LX1G3TKUEN
- Item #:
- 1550919
LX1G3TKUEN LX1G Control Module, 3 Poles, For Use With LC1G630-800, 3 pole
- MFR #:
- LX1G3TKUEN
- Item #:
- 1550919
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
It is a 100-250V AC/DC control module for 3 poles TeSys Giga 630-800 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
Manuals and Documentation
| Catalog Number | LX1G3TKUEN |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | China |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=535287977&lang=en-us |
| GTIN | 03606481946355 |
