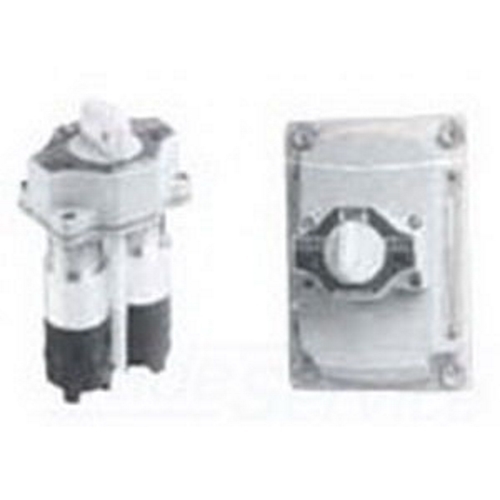

Selector Switch with Cover Assembly, 600 VAC, 10 A, 2NO 2NC, Malleable Iron
- MFR:
- Appleton Electric
- MFR #:
- EDKB345
- UPC:
- 781381673914
- Item #:
- 154973
Selector Switch with Cover Assembly, 600 VAC, 10 A, 2NO 2NC, Malleable Iron
- MFR #:
- EDKB345
- UPC:
- 781381673914
- Item #:
- 154973
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$578.58
each
Contender EDKB Series 4 Circuit Selector Switch With Cover, Number Of Steps: 3, Contact Configuration: 2 NO/2 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 1/2 IN NPSM, Operation: Moment
Manuals and Documentation
| Catalog Number | EDKB345 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors |
| Contact Configuration | 2 NO/2 NC |
| Contact Rating | 10 AMP At 600 VAC |
| Enclosure | NEMA 3, 7CD, 9EFG |
| Mounting | Surface |
| Number of Steps | 3 |
| Special Features | Ground screw installed in bodies for ground continuity; Corrosion resistant stainless steel hex head captive screws hold covers to body; Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance; Selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements; Assures positive contact and long, trouble free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations |
| Standard | UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III |
| UPC | 781381673914 |
| GTIN | 00781381673914 |
| Item Type | EDKB Series 4 Circuit Selector Switch With Cover |
