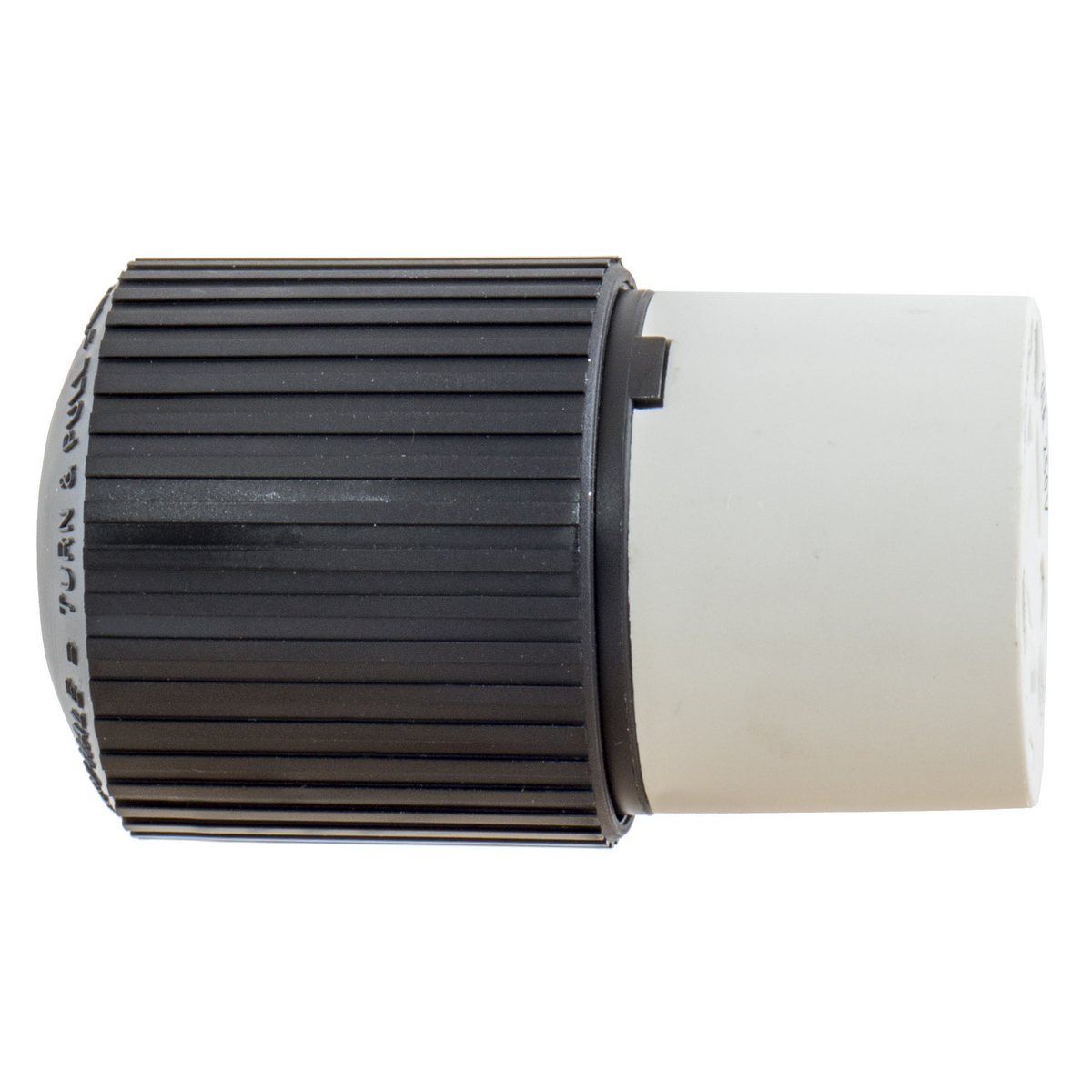

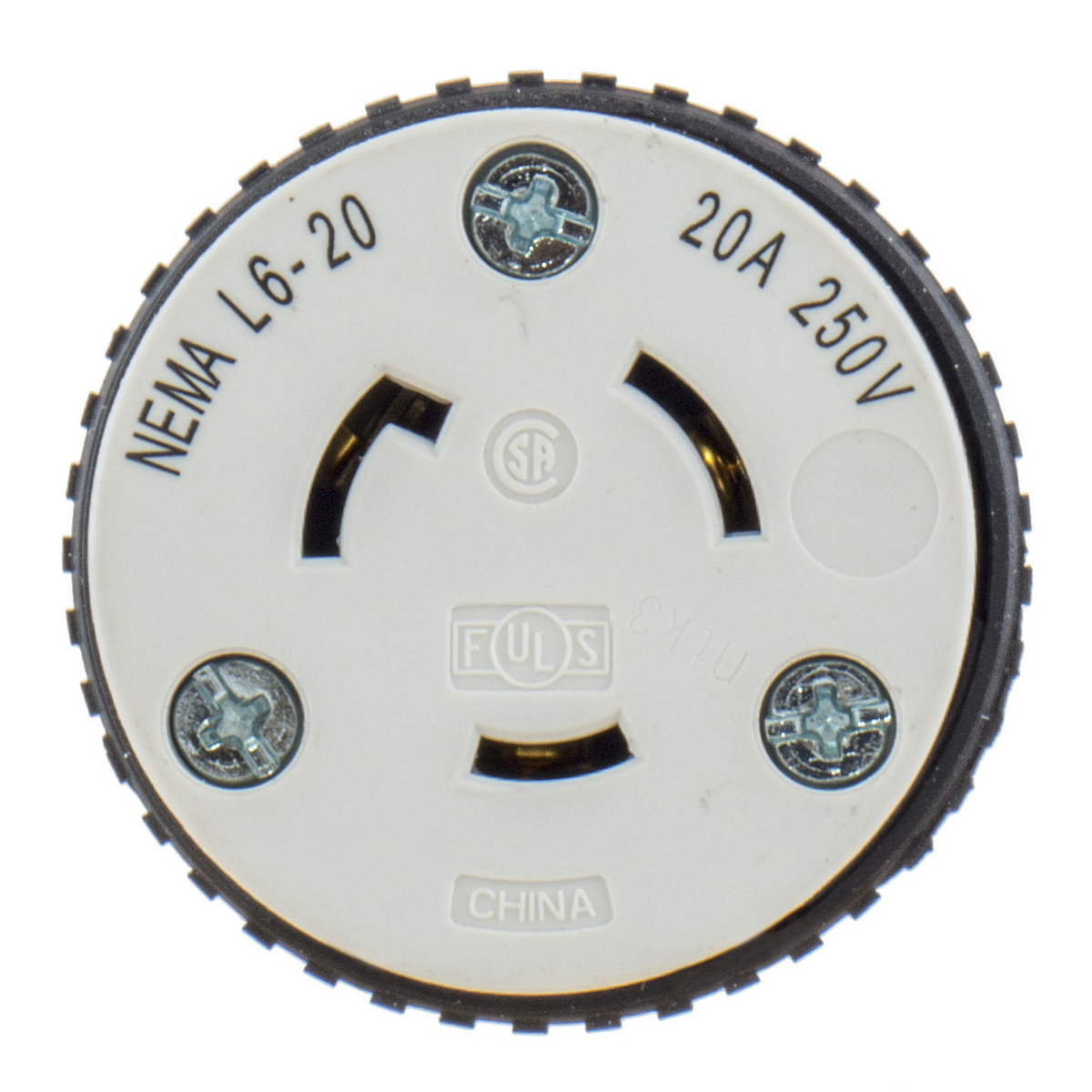

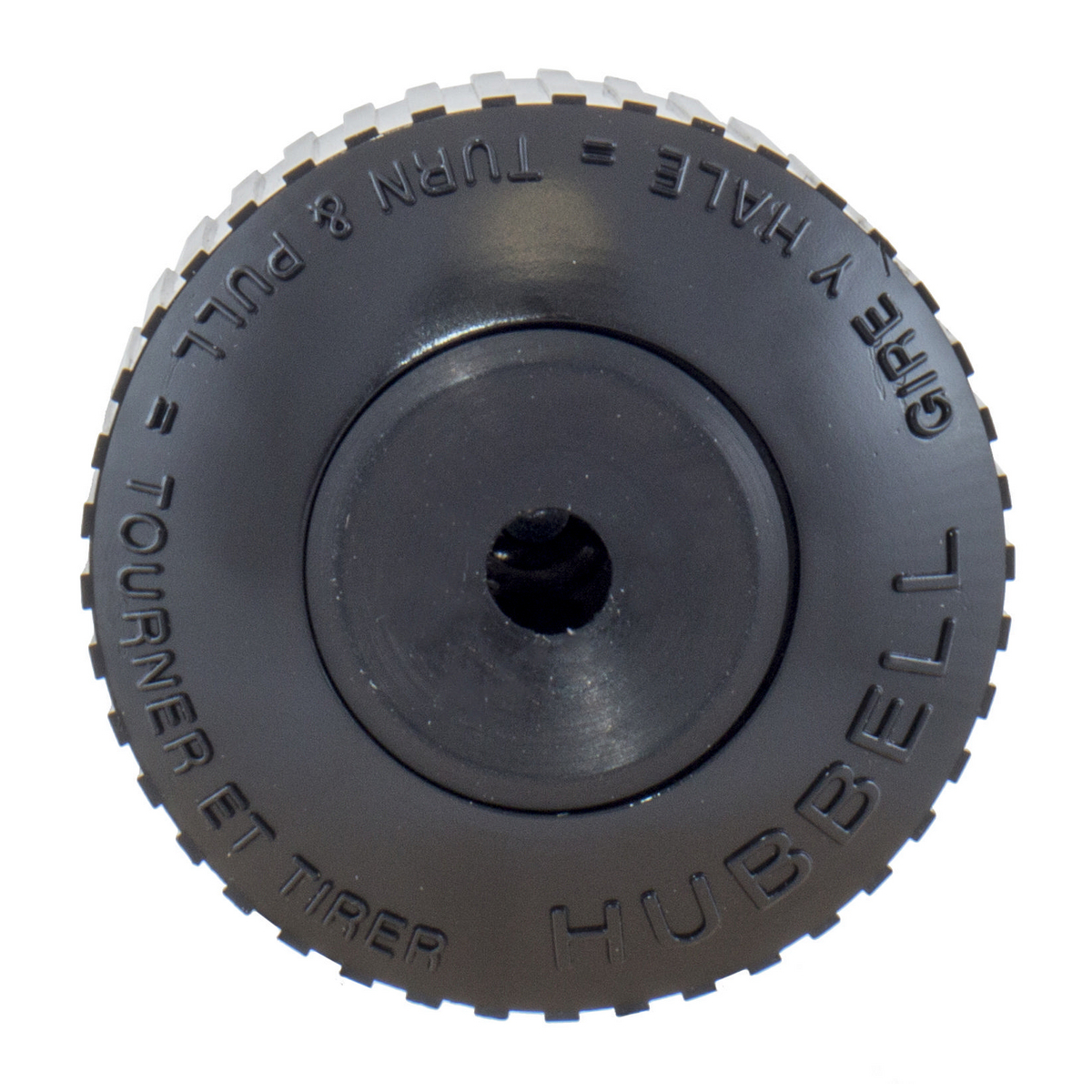

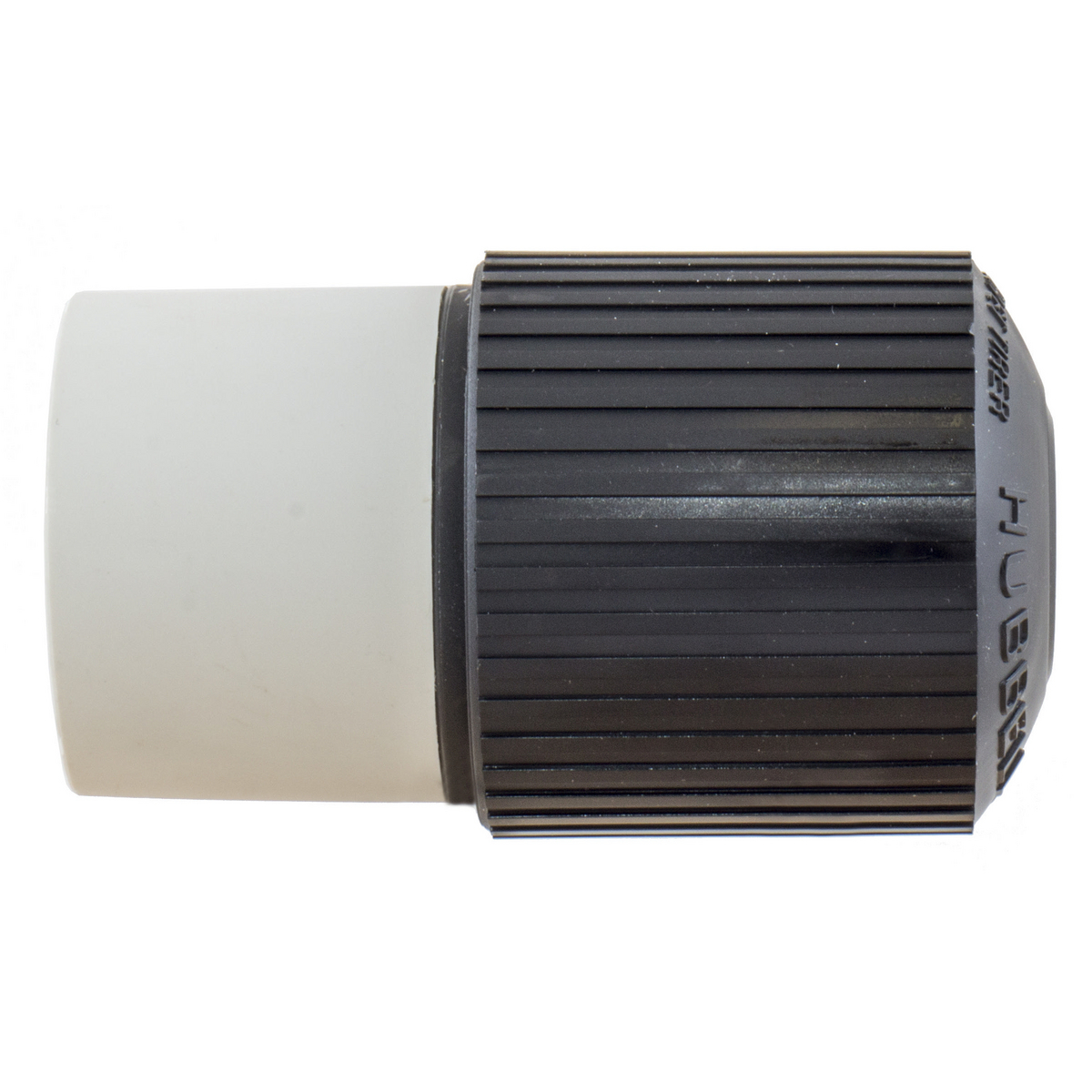

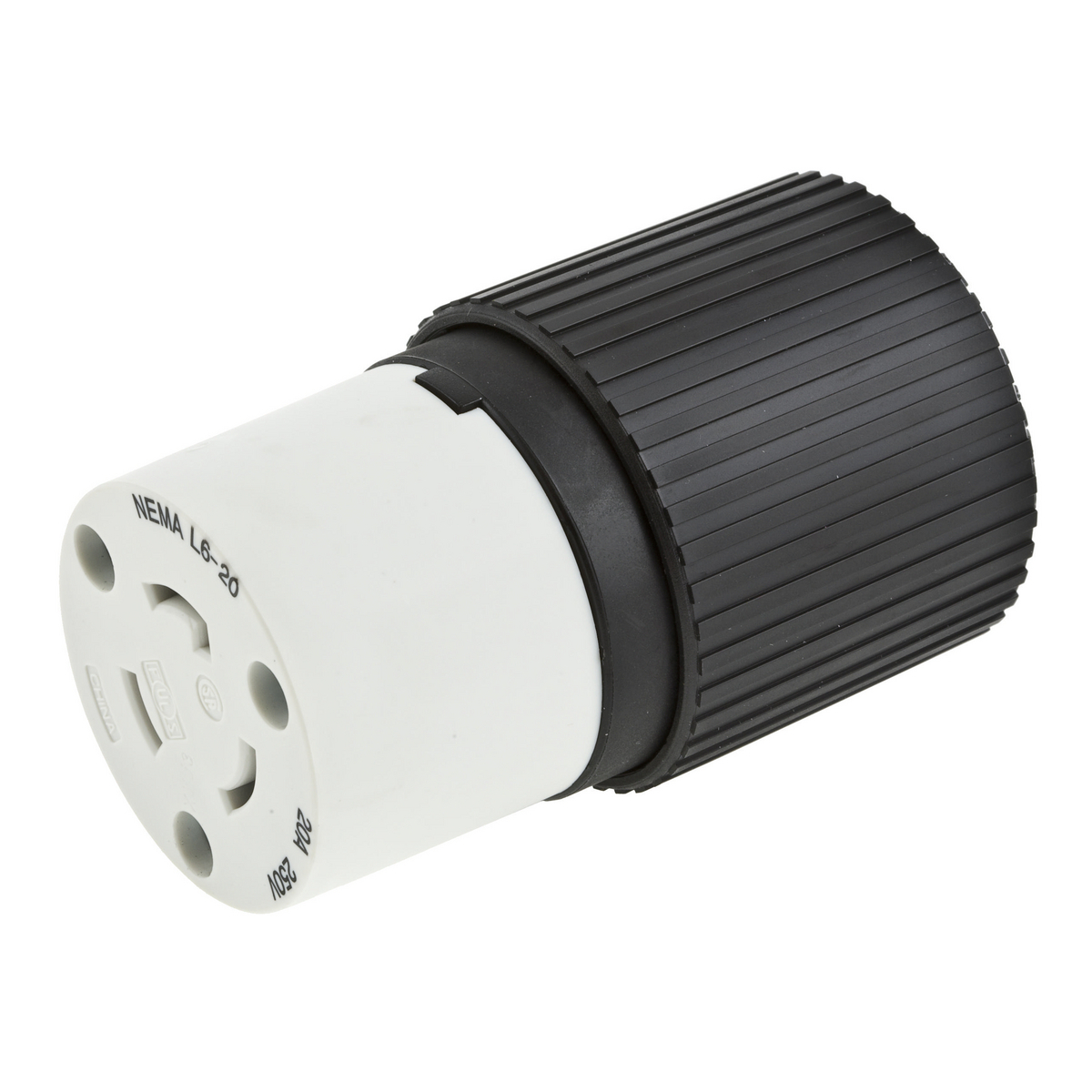

L620C Female Grounding Standard Cord Mount Locking Connector, 250 V AC, 20 A, 2 Poles, 3 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- L620C
- UPC:
- 783585835792
- Item #:
- 154765
L620C Female Grounding Standard Cord Mount Locking Connector, 250 V AC, 20 A, 2 Poles, 3 Wires, Black/White
- MFR #:
- L620C
- UPC:
- 783585835792
- Item #:
- 154765
Availability
| Location | Available Qty |
|---|---|
| Available | 2 ea |
$63.63
each
Manuals and Documentation
| Catalog Number | L620C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Heavy Duty |
| Color | Black; White |
| Conductor Range | #14 AWG to #12 AWG |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| NEMA Rating | 6 |
| Number of Conductors | 3-Wire Grounding |
| Number of Poles | 2 |
| Special Features | Standard Product |
| Standard | NEMA WD1 and WD5, UL498 |
| UPC | 783585835792 |
| GTIN | 00783585835792 |
| Item Type | Hubbell Pro |
| Size | Standard |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 250V kV |
