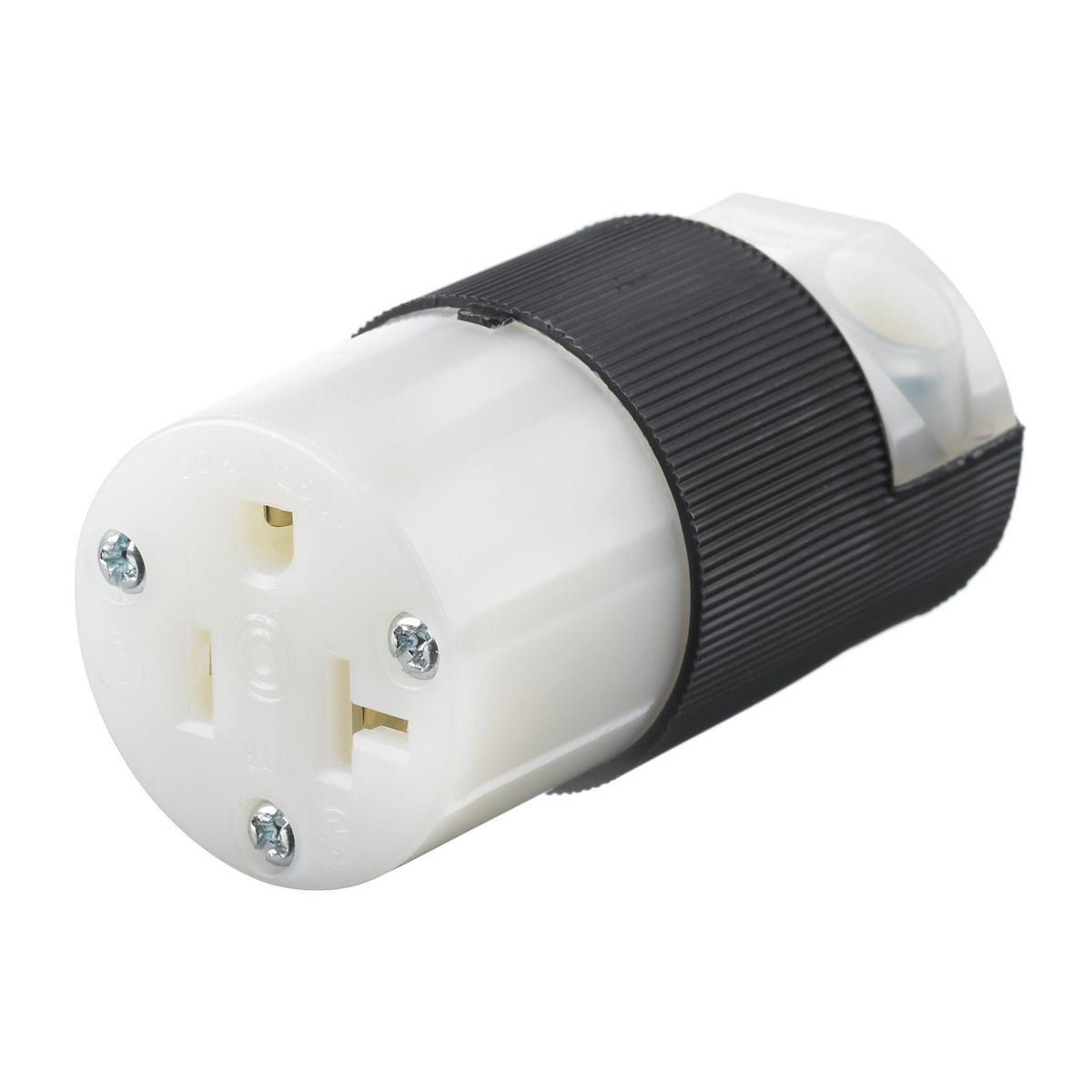

HBL5369C Female Grounding Insulated Cord Mount Straight Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL5369C
- UPC:
- 783585174259
- Item #:
- 154622
HBL5369C Female Grounding Insulated Cord Mount Straight Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, Black/White
- MFR #:
- HBL5369C
- UPC:
- 783585174259
- Item #:
- 154622
Availability
| Location | Available Qty |
|---|---|
| Available | 452 ea |
$58.66
each
Manuals and Documentation
| Catalog Number | HBL5369C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Industrial/Commercial Grade |
| Color | Black; White |
| Conductor Range | #18 AWG to #10 AWG |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Polycarbonate |
| Mounting | Cord |
| NEMA Rating | 5 |
| Number of Conductors | 3-Wire Grounding |
| Number of Poles | 2 |
| Special Features | Standard Product |
| Standard | CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 |
| UPC | 783585174259 |
| GTIN | 00783585174259 |
| Item Type | Connector Body |
| Size | 2.78 in x 1.41 in x 1.53 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Voltage Rating | 125 |
| Cross Reference Products | 5369-C |
