Elastimold

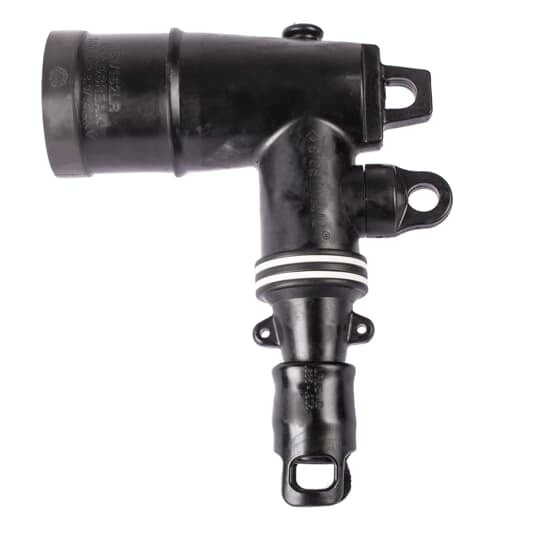

162LRJS-C5250 Elastimold Insulated Loadbreak Elbow Connector With Test Point, 15 kV, 200 A, 2/0 to 3/0 AWG Conductor, 0.805 to 1.06 in Dia Insulation, EPDM Rubber

MFR:
ABB - Installation Products
MFR #:
162LRJS-C5250
UPC:
075114190893
Item #:
1542891

Availability

Location Available Qty
Available Available to Order
$170.10 each
Manuals and Documentation
Catalog Number 162LRJS-C5250
Manufacturer ABB - Installation Products
Brand Elastimold
Country of Origin United States
Made in USA Yes
Amperage Rating 200
Application 15 kv, 200 Amp
Color Black
Conductor Range 2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG
Insulation Yes, EPDM Rubber
Material Housing - EPDM Rubber
Special Features 15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point
Standard ANSI/IEEE Standard 386
UPC 075114190893
GTIN 00075114190893
Item Type Loadbreak Elbow Connector with Test Point and Jacket Seal
Size 11.47 inch End to Center of Installation Eye X 8.20 inch width, 2.87 inch Diameter
Environmental Conditions All Weather Conditions
Temperature Rating -40 to +65 C
Voltage Rating 15 kV
