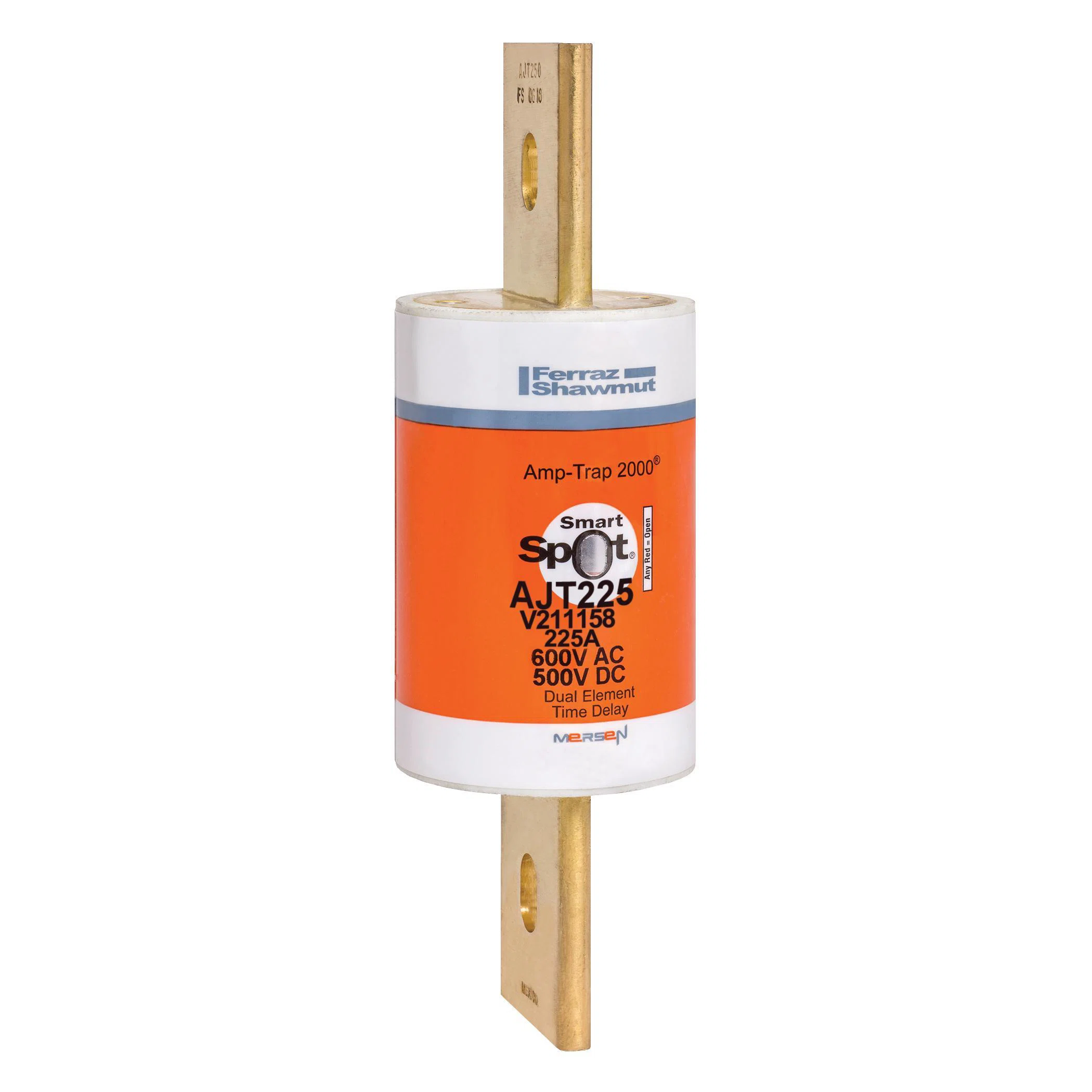

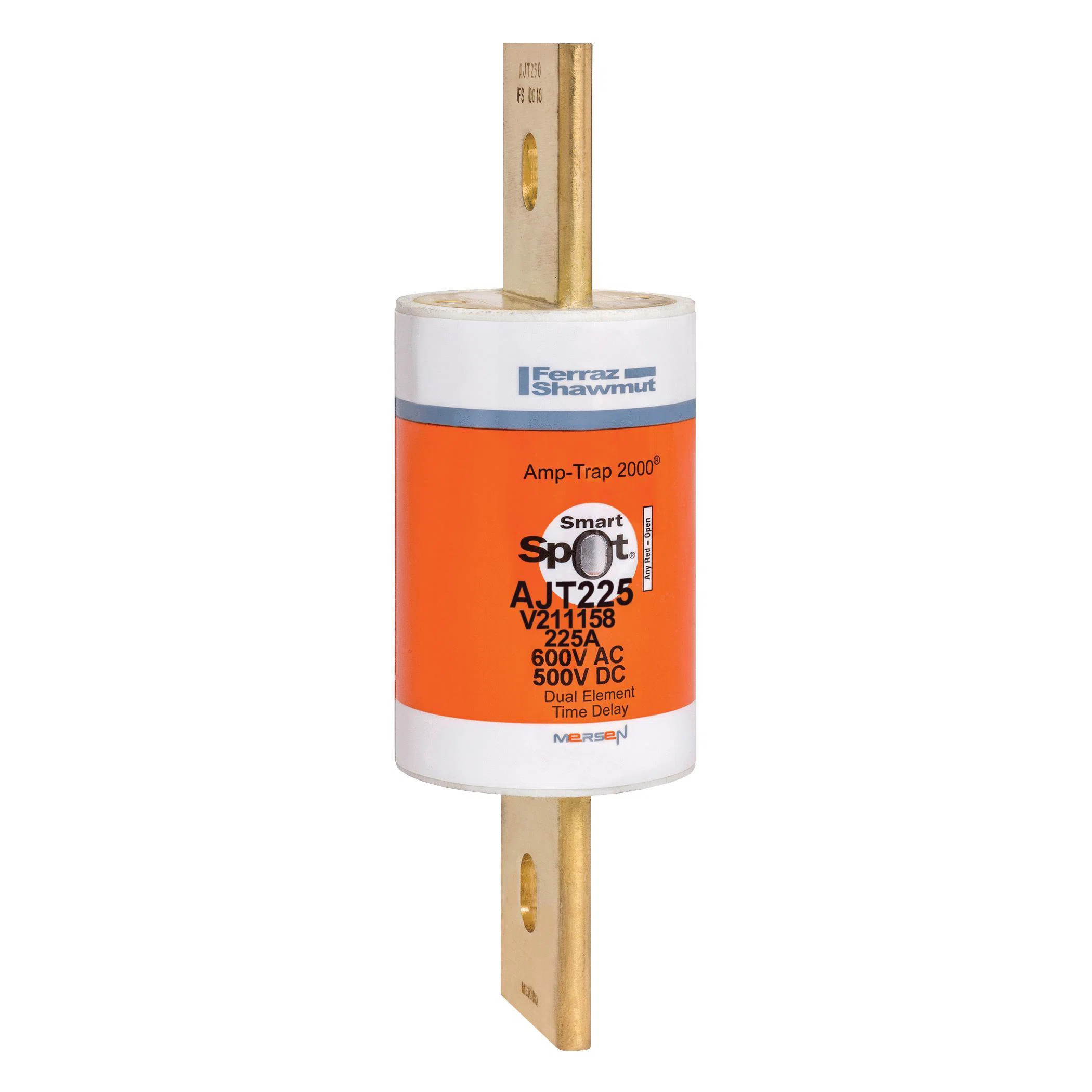

AJT225 Amp-Trap 2000 SmartSpot Current Limiting Low Voltage North American Time Delay Power Fuse, 225 A, 600 V AC, 200 kA Interrupt, J Class, Cylindrical Body
- MFR:
- MERSEN
- MFR #:
- AJT225
- UPC:
- 782001962289
- Item #:
- 153997
AJT225 Amp-Trap 2000 SmartSpot Current Limiting Low Voltage North American Time Delay Power Fuse, 225 A, 600 V AC, 200 kA Interrupt, J Class, Cylindrical Body
- MFR #:
- AJT225
- UPC:
- 782001962289
- Item #:
- 153997
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,316.11
each
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Manuals and Documentation
Features
- Solid state SmartSpot® indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Most current limiting UL class fuse
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Tin-plated copper, silver-plated copper contact
| Manufacturer Part Number | AJT225 |
| Brand | Mersen |
| Manufacturer | MERSEN |
| UPC | 782001962289 |
| Country Of Origin | MX |
| Amperage Rating | 225 A |
| Material | Fiberglass |
| Mounting Type | Clip |
| Series | AJT |
| Type | Current Limiting Low Voltage North American Time Delay |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 7718333 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | CSA C22.2 No. 248.8 | DC Listed | IEC 269-2-1 | RoHS Compliant | UL 248 | UL 248-8 File No. E2137 |
| Application | Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers Applications |
| Body Size | 2-1/8 in Dia x 7-1/8 in L |
| Body Type | Cylindrical |
| Class | J |
| Element | Dual |
| Indicating Non Indicating | Indicating |
| Interrupt Rating | 200 kA |
| Rejection Non Rejection | Rejection |
| Terminal Type | Blade |
