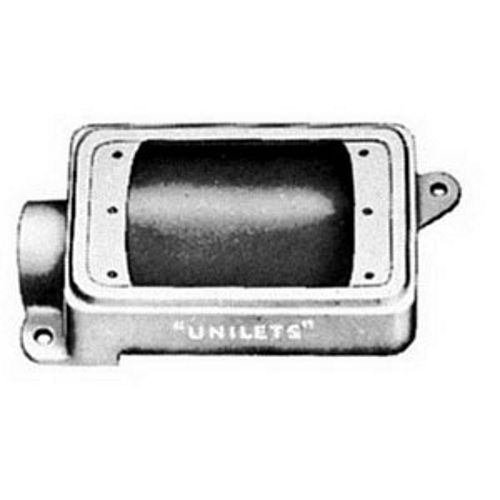

FD-1-100-A Unilets Type FD Deep Heavy Duty Device Box With Internal Ground Screw, Aluminum, 25 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 4.56 in H x 2.81 in W x 2.69 in D
- MFR:
- Appleton Electric
- MFR #:
- FD-1-100-A
- UPC:
- 781381455718
- Item #:
- 153749
FD-1-100-A Unilets Type FD Deep Heavy Duty Device Box With Internal Ground Screw, Aluminum, 25 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 4.56 in H x 2.81 in W x 2.69 in D
- MFR #:
- FD-1-100-A
- UPC:
- 781381455718
- Item #:
- 153749
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$99.91
each
UNILETS FD Deep Depth 1-Gang Cast Device Box, Number Of Outlet: 1, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 1 IN, Cable Entry: (1) 1 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81 IN, Depth: 2.69 IN, Finish: Epoxy Powder Coat, Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1, For Use With Threaded Metal Conduit And IMC
Manuals and Documentation
Features
- Dimension: 2.690 Inch Depth
| Catalog Number | FD-1-100-A |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit And IMC |
| Cable Entry | (1) 1 IN Hub |
| Cubic Capacity | 25 CU IN |
| Knockouts | No |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Special Features | Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; |
| Standard | UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381455718 |
| GTIN | 00781381455718 |
| Item Type | FD Deep Depth 1-Gang Cast Device Box |
| Length | 6.5000 |
| Length UOM | Inch |
| Width | 4.7000 |
| Width UOM | Inch |
| Height | 3.1000 |
| Height UOM | Inch |
| Weight | 0.970 |
| Weight UOM | Pounds |
| Size | 1 |
