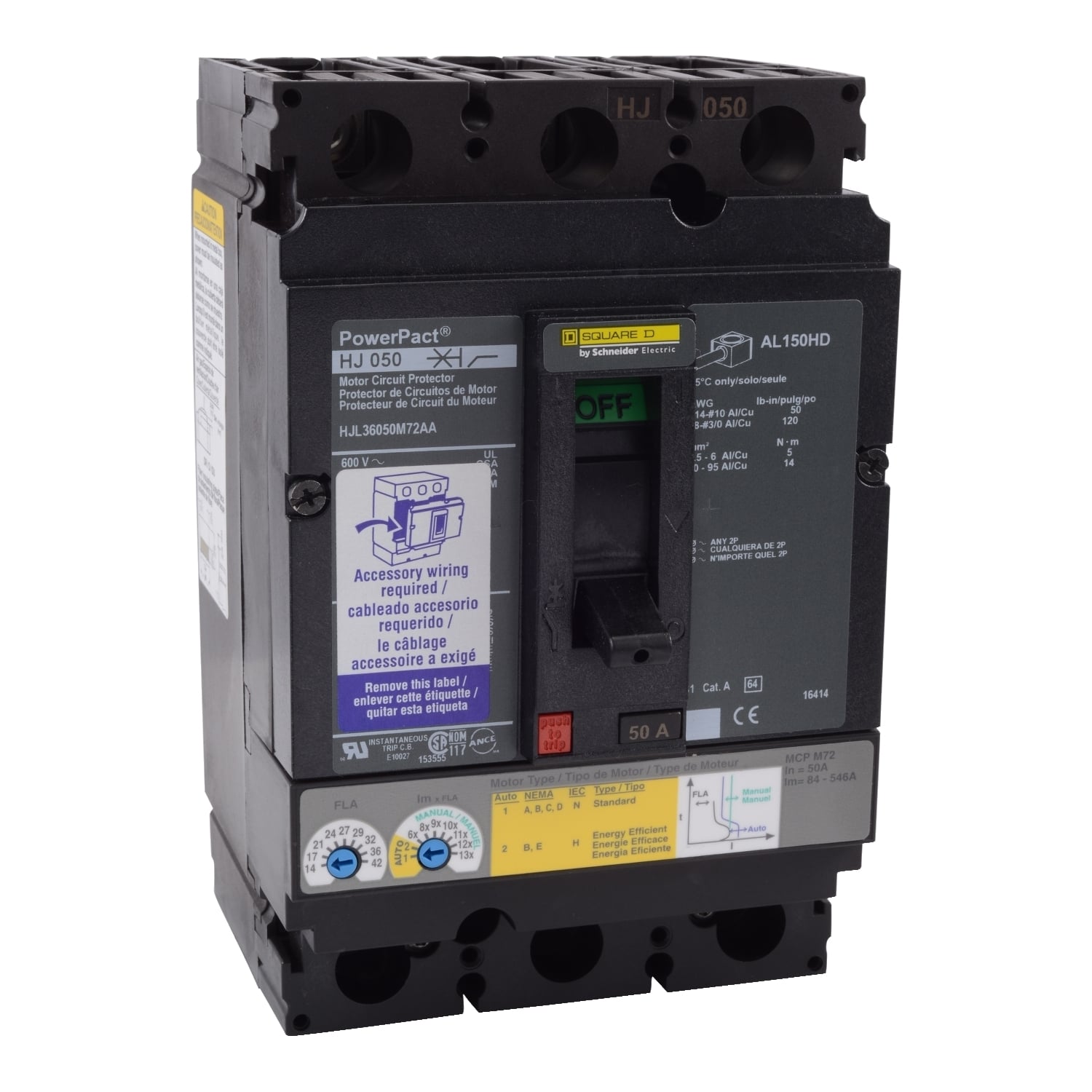

HJL36050M72BC PowerPact Type HJL Motor Circuit Protector, 600 V AC/250 V DC, 50 A, 65 kA at 480 VAC/25 kA at 600 VAC/100 kA at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- HJL36050M72BC
- UPC:
- 785901437543
- Item #:
- 1533740
HJL36050M72BC PowerPact Type HJL Motor Circuit Protector, 600 V AC/250 V DC, 50 A, 65 kA at 480 VAC/25 kA at 600 VAC/100 kA at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- HJL36050M72BC
- UPC:
- 785901437543
- Item #:
- 1533740
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,943.76
each
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 50A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. This unit includes an alarm switch. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Manuals and Documentation
| Catalog Number | HJL36050M72BC |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Distribution |
| Color | Black |
| Connection | Lugs, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Control | Toggle |
| Number of Poles | 3 |
| Special Features | Alarm switch 24 V AC/DC 1 NO + 1 NC cover frame;Modbus;Ethernet |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268666283&lang=en-us |
| UPC | 785901437543 |
| GTIN | 00785901437543 |
| Item Type | Motor Circuit Protector |
| Trip Type | Thermal-magnetic |
