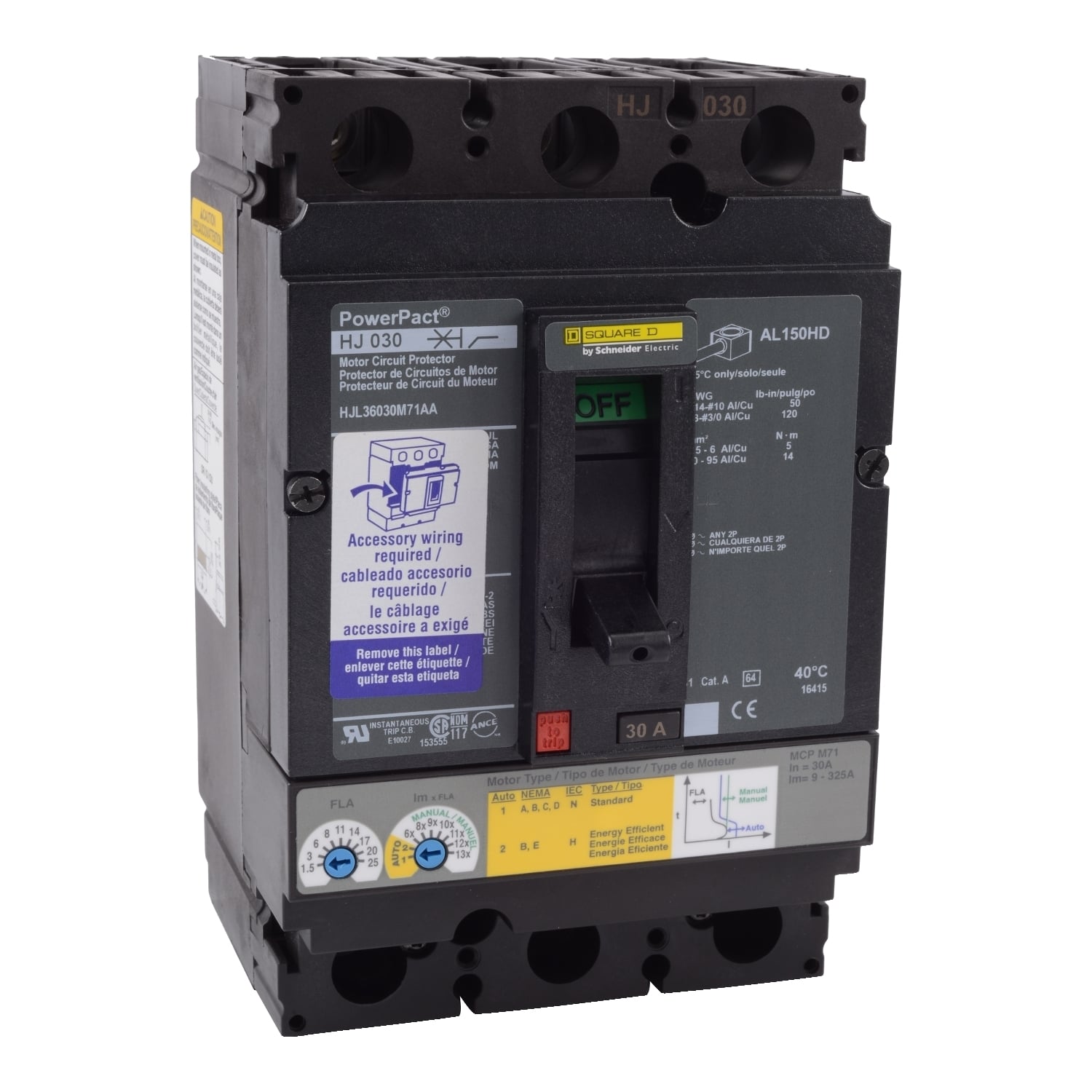

Motor circuit protector, PowerPacT H, 30A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%, alarm switch
MFR: Schneider Electric
MFR #: HJL36030M71BC
Item #: 1533739
Motor circuit protector, PowerPacT H, 30A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%, alarm switch
MFR #: HJL36030M71BC
Item #: 1533739
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2146.17
each
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 30A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. This unit includes an alarm switch. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Manuals and Documentation
- Catalog Number
- HJL36030M71BC
- Manufacturer
- Schneider Electric
- Brand
- SQUARE D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- United States
- Made in USA
- Yes
- Actuator
- Toggle
- Application
- Distribution
- Color
- Black
- Connection
- Lugs, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal
- Frequency Rating
- 50/60 Hz
- Number of Poles
- 3
- Special Features
- Modbus;Ethernet;1
- GTIN
- 03606486282106
- Item Type
- Motor Circuit Protector;Alarm switch 24 V AC/DC 1 NO + 1 NC cover frame
- Trip Type
- Thermal-magnetic
