BURNDY

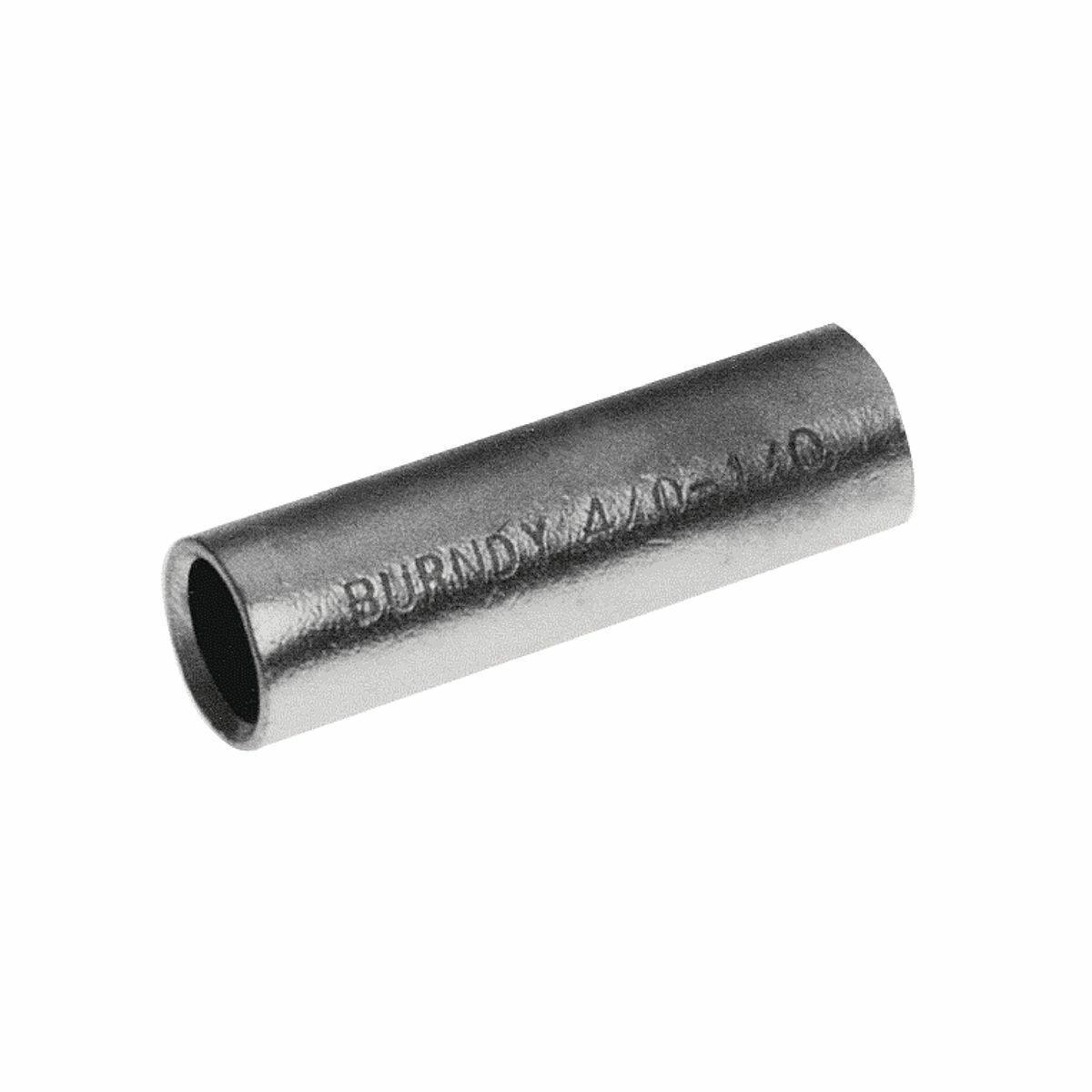

Y282CR Type Y-R Uninsulated Reducer Adapter Sleeve, 2 to 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1-3/4 in L, Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
Y282CR
UPC:
781810000984
Item #:
153365

Availability

Location Available Qty
Available Available to Order
$73.46 each
Manuals and Documentation
Catalog Number Y282CR
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Reducing Splice Adapter Insert
Finish Tin-Plated
Material COPPER
Special Features Features: The Y-R Reducing Adapter Has Been Designed To Allow Large Size, Long Barrel, Copper Long Barrel HYDENT, HYSPLICE And HYTEE Terminals, Splices, And T Taps To Be Used On Smaller Conductor Sizes, To Use, Simply Insert The Reducer Into The Barrel, Insert The Wire Into The Reducer Adapter And Crimp The Outer Barrel Using Its Recommended Tooling, Wide Range Of Conductors Are Accommodated: Lowers Inventory Requirements And Affords Maximum Versatility, Same Die Set For All Legs Of The Connection: Permits The Same Tool And Die Combination Normally Used On The Compression Barrel, Length Fits The Long Barrel Connector Design (YS, YA): Can Be Used On All Long Barrel Connectors, Field Cut To Fit Shorter Length Compression Barrels (YS-L, YA-L), Manufactured From High Conductivity Electrolytic Copper And Electro-Tin Plated: Provides Maximum Conductivity Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, And Provides Long Lasting Corrosion Resistance, Conductor Type: Copper
UPC 781810000984
GTIN 00781810000984
Item Type Y-R, Compression
Temperature Rating 194
