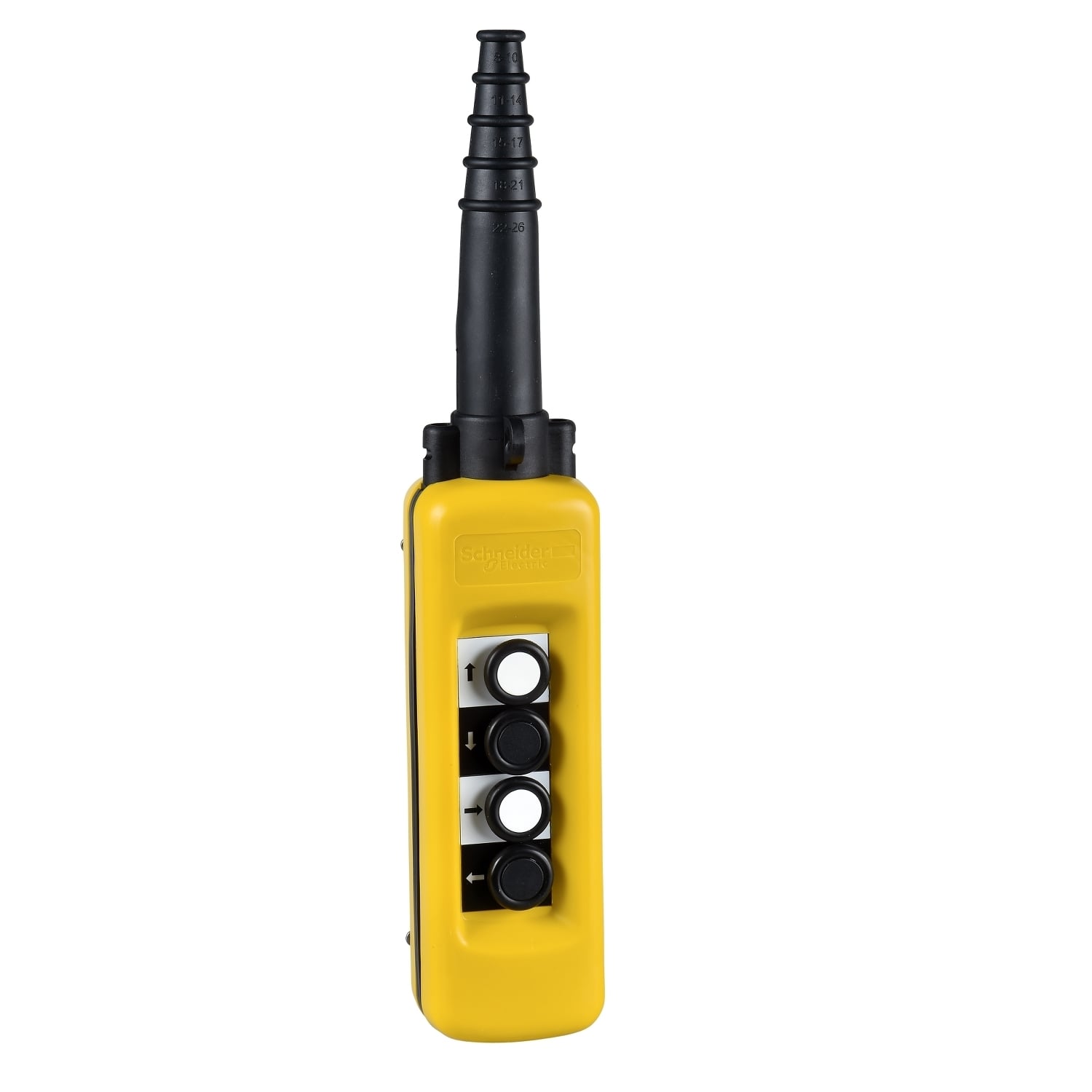

XACA471H7 Harmony Medium Duty Pendant Control Station, 600 V AC/DC, 10 A, 4NO Contact, 4 Operators, NEMA 4/4X/5/IP65 NEMA Rating
- MFR:
- Schneider Electric
- MFR #:
- XACA471H7
- Item #:
- 153358
XACA471H7 Harmony Medium Duty Pendant Control Station, 600 V AC/DC, 10 A, 4NO Contact, 4 Operators, NEMA 4/4X/5/IP65 NEMA Rating
- MFR #:
- XACA471H7
- Item #:
- 153358
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$320.47
each
pendant control station XAC-A - double insulated type - 4 pushbuttons
Manuals and Documentation
| Catalog Number | XACA471H7 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Action | Slow-break |
| Actuator | 4 push-buttons |
| Application | ZB2BE101 for each direction |
| Cable Entry | Rubber sleeve with stepped entry 8-26 mm |
| Color | Yellow |
| Connection | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end;screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Enclosure | Complete ready for use;Polypropylene |
| Insulation | Double insulated |
| Special Features | First push-button 1 NO raise, slow;second push-button 1 NO lower, slow;fourth push-button 1 NO left, slow;third push-button 1 NO right, slow |
| Standard | CSA;UL;GOST;CCC;IK08 conforming to IEC 62262;IEC 60947-5-1;IEC 60204-32;CSA C22.2 No 14;UL 508;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674046&lang=en-us |
| GTIN | 03389110321166 |
| Item Type | Pendant control station |
