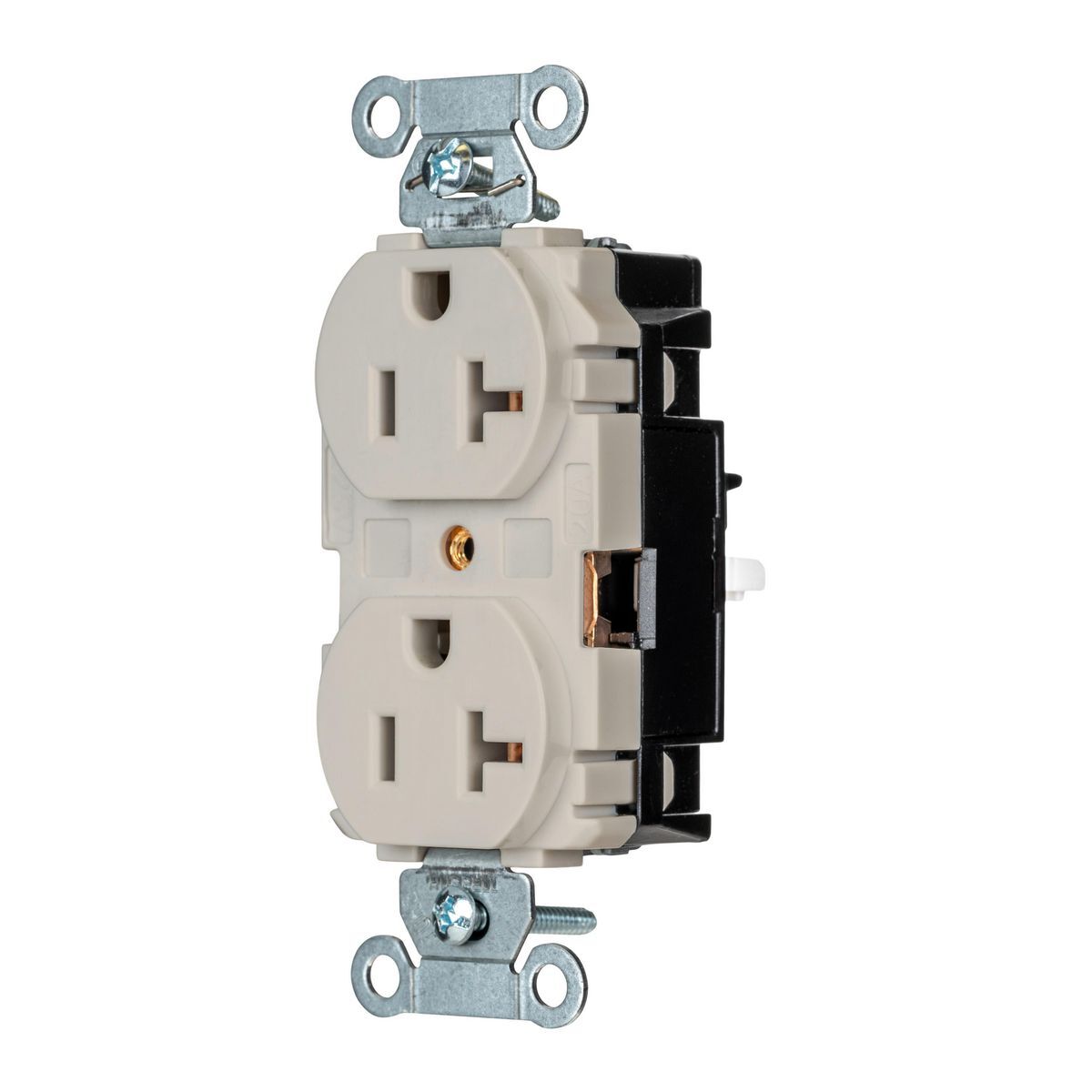

BR20STLA EdgeConnect Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Light Almond
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- BR20STLA
- UPC:
- 783585727929
- Item #:
- 1533059
BR20STLA EdgeConnect Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Light Almond
- MFR #:
- BR20STLA
- UPC:
- 783585727929
- Item #:
- 1533059
Availability
| Location | Available Qty |
|---|---|
| Available | 42 ea |
$8.82
each

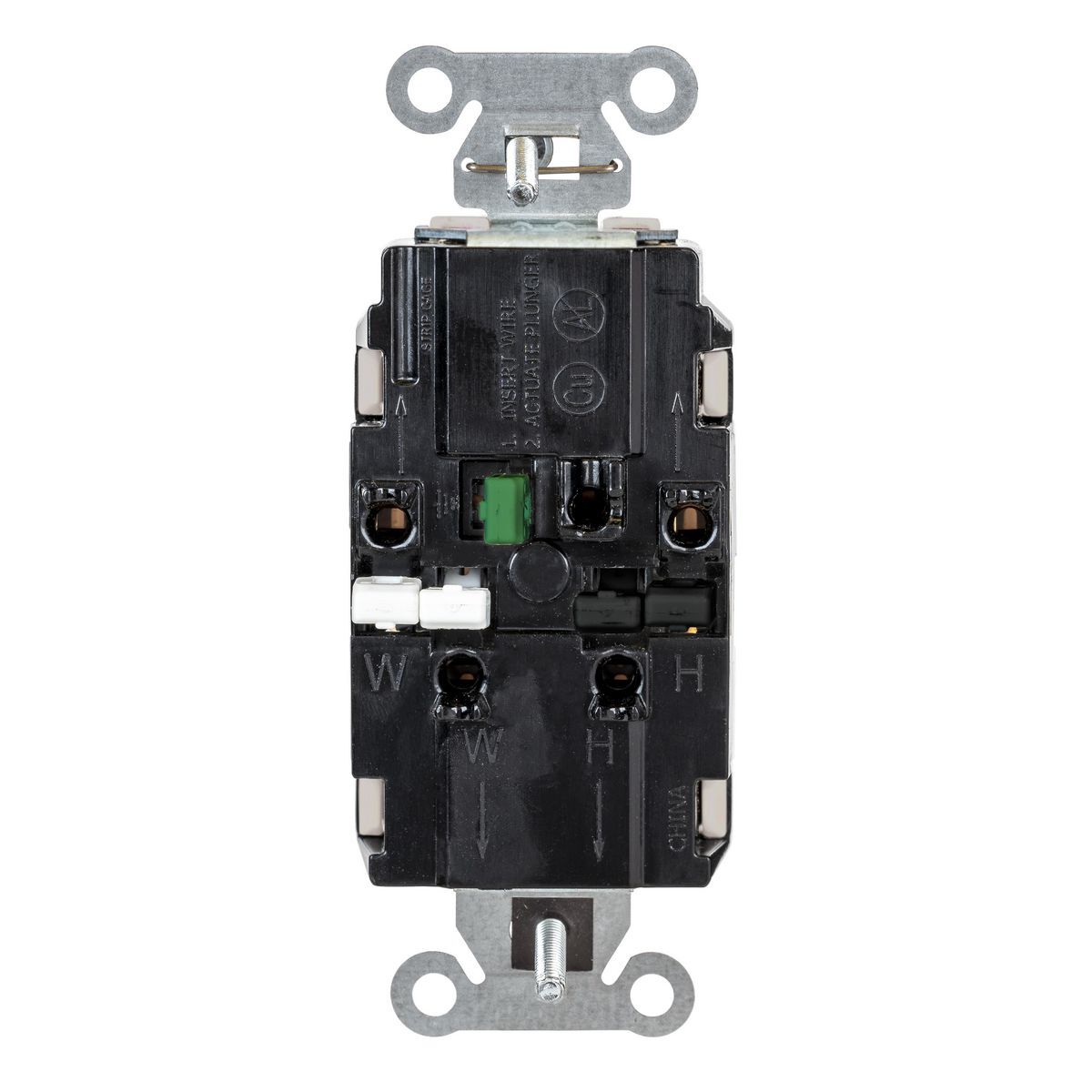

EdgeConnect Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualifi ed installer regardless of level of training can guarantee a high qualilty result. Elapsed time About 11 seconds!
Manuals and Documentation
| Catalog Number | BR20STLA |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Application | Commercial Specification Grade |
| Color | Light Almond |
| Connection | 2-Pole, 3 Wire |
| Material | Thermoplastic/C |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Special Features | EdgeConnect™ Technology, Screwless Termination |
| Standard | UL Listed to UL498 File No. E2186;Certified to CSA 22.2, No. 42 File 285;NEMA® WD-6 Compliant |
| UPC | 783585727929 |
| GTIN | 00783585727929 |
| Item Type | Standard Duplex |
| Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum continuous 75 Degrees C; minimum -40 Degrees C (w/o impact) |
| Voltage Rating | 125 |
| Wire Size | #14 AWG to #10 AWG |
