Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$38.38
each

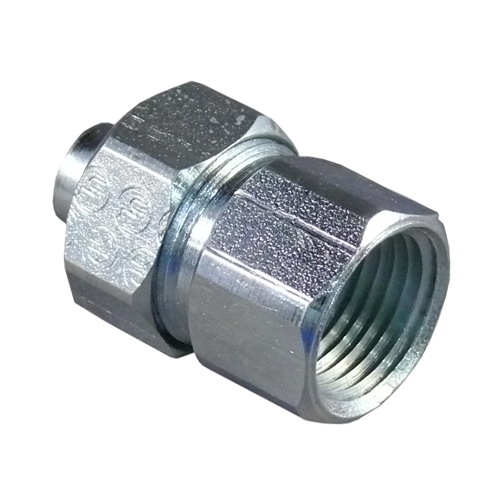

ST Series Female Liquidtight Connector With Threaded Hub, Size: 3/4 IN, Connection: Threaded X Compression, Material: Steel, Finish: Zinc Electroplate, Dimensions: 1.44 IN Length X 1.5 IN Height, Thread Length: 0.5 IN, Standard: Class I, D
Manuals and Documentation
| Catalog Number | ST-75F |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Liquidtight Flexible Metal Conduit When Making Connection To Threaded Rigid Conduit And IMC |
| Connection | Threaded X Compression |
| Finish | Zinc Electroplate |
| Material | Steel |
| Special Features | Female ST connectors have a unique long ferrule with more pronounced threads that provide over four times UL pull-out requirements; The ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Suitable for wet locations; Full, machined tapered threads (NPT); ST connectors have compact design with small turning radius Steel ferrule |
| Standard | Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| UPC | 781381679350 |
| GTIN | 00781381679350 |
| Item Type | ST Series Female Liquidtight Connector With Threaded Hub |
| Size | 3/4 |
