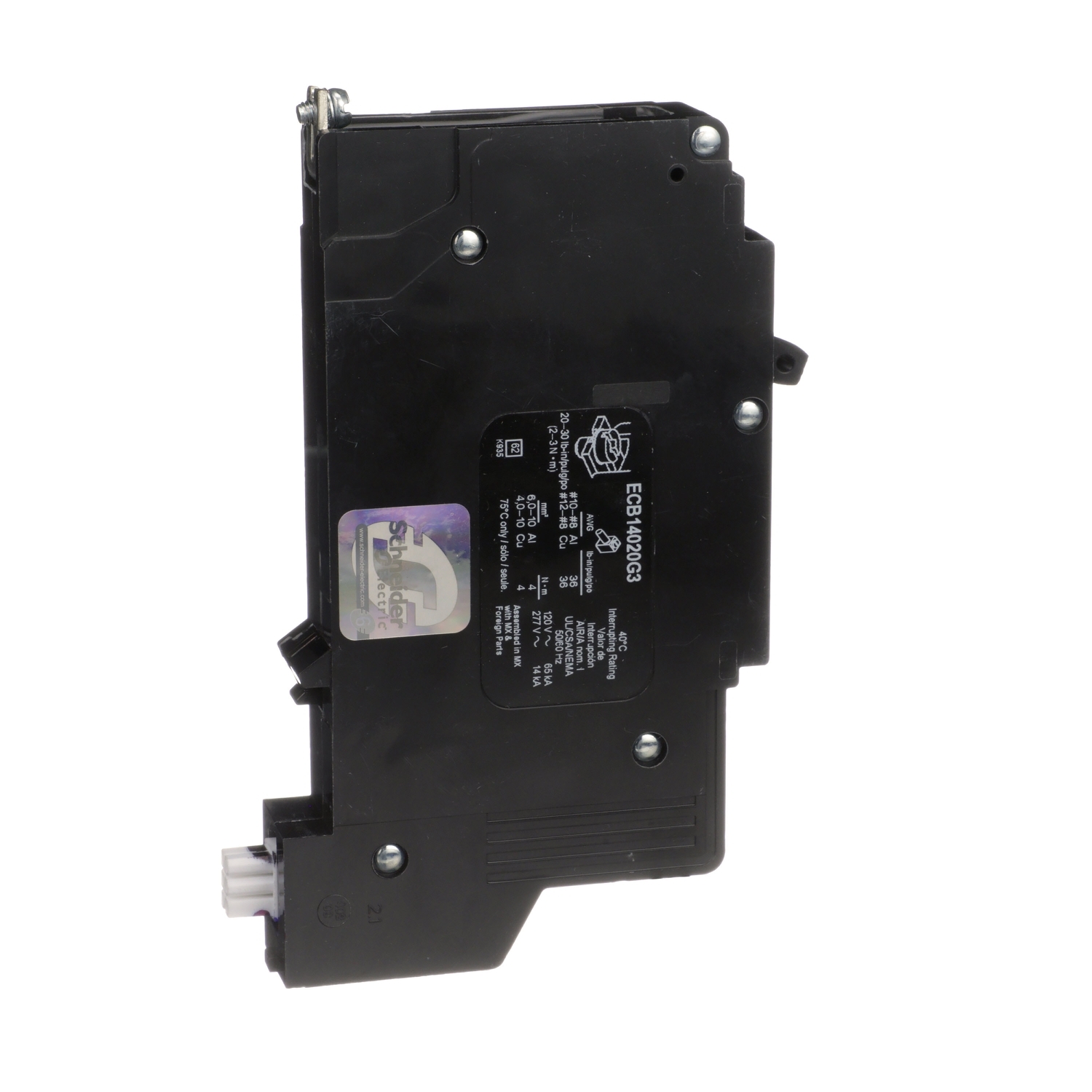

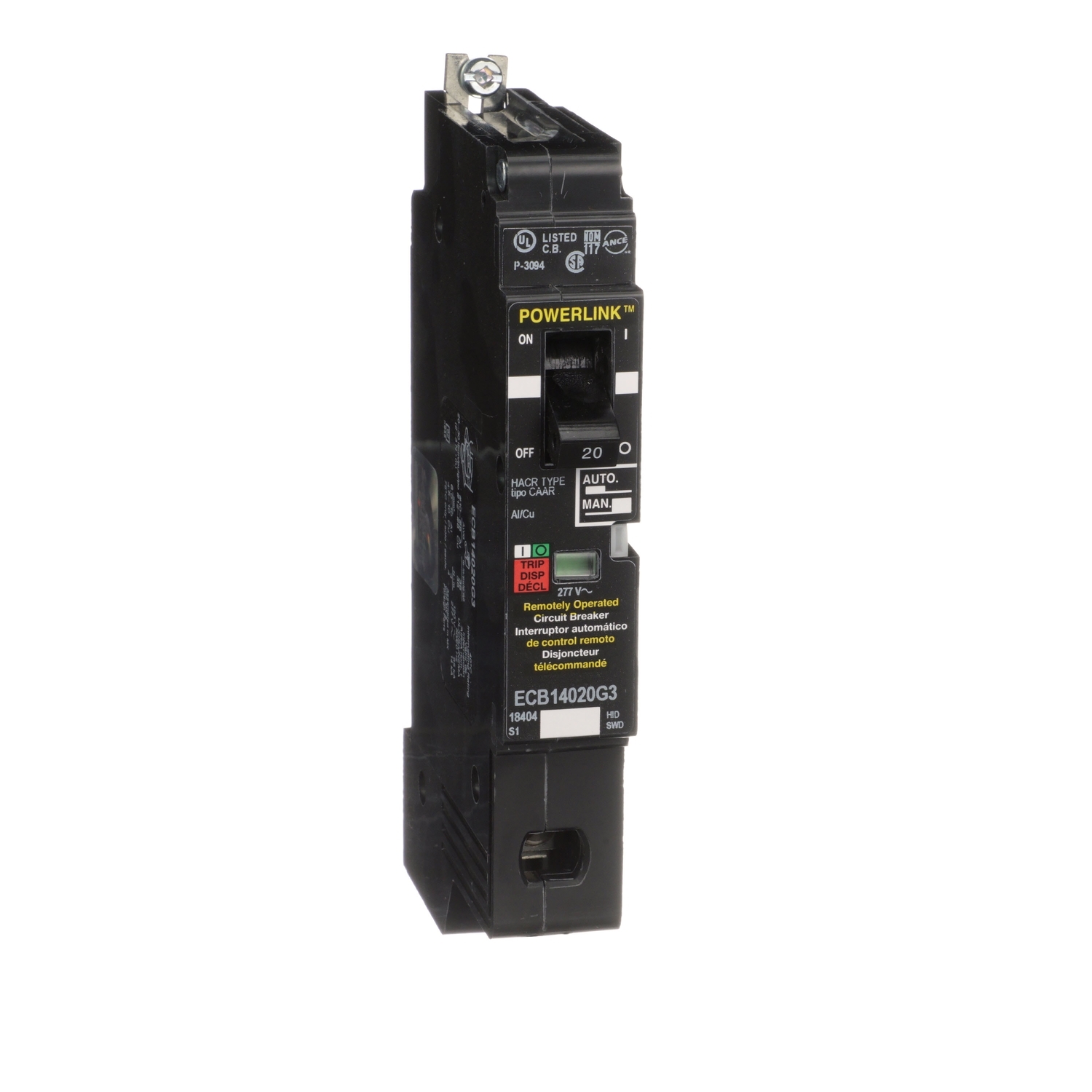

ECB14020G3 Powerlink Type ECB Molded Case Circuit Breaker, 480Y/277 V AC, 20 A, 14/65 kA Interrupt, 1 Pole, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- ECB14020G3
- UPC:
- 785901000976
- Item #:
- 153021
ECB14020G3 Powerlink Type ECB Molded Case Circuit Breaker, 480Y/277 V AC, 20 A, 14/65 kA Interrupt, 1 Pole, Thermal Magnetic Trip
- MFR #:
- ECB14020G3
- UPC:
- 785901000976
- Item #:
- 153021
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$316.02
each
PowerLink circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for PowerLink Intelligent panelboard. They can be configured to automatically or manually reset once tripped using a bimetallic strip. This circuit breaker is HACR rated to a current capacity of 20 amperages, allowing for it be ideally used in congruence with HVAC systems. Certified by the Underwriters Laboratory to meet the designed specifications.
Manuals and Documentation
| Catalog Number | ECB14020G3 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | HACR rated;Switching Duty rated;HID rated |
| Connection | Bolted connection;AWG 10...AWG 8 aluminium;AWG 12...AWG 8 copper |
| Number of Poles | 1 |
| Standard | UL Listed;CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253625&lang=en-us |
| UPC | 785901000976 |
| GTIN | 00785901000976 |
| Item Type | Motor for circuit-breaker 24 V DC;Circuit breaker |
| Trip Type | Thermal-magnetic, standard, LI |
