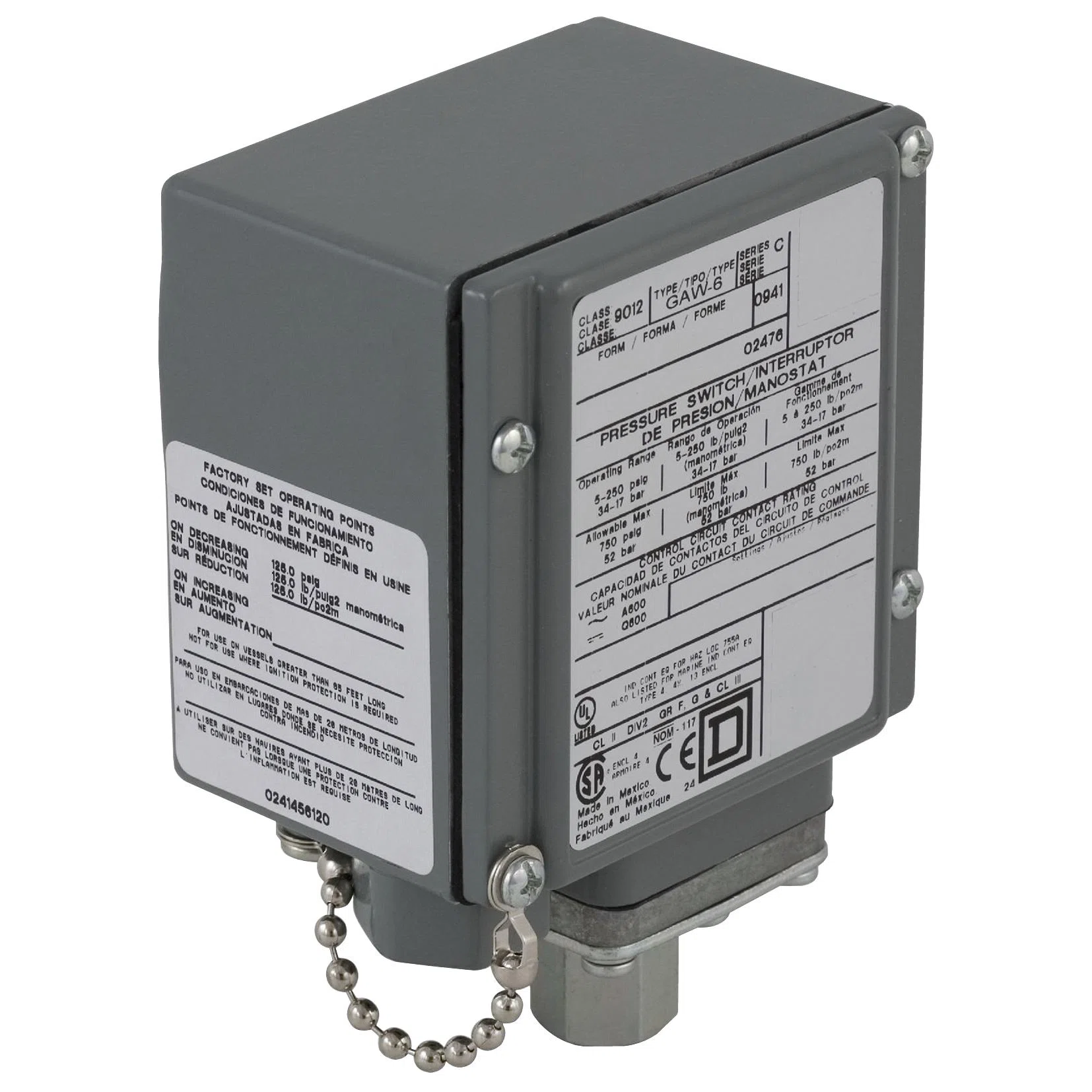

Pressure switch 9012G, adjustable scale, 2 thresholds, 3.0 to 150 PSIG
- MFR:
- Schneider Electric
- MFR #:
- 9012GAW5G17
- UPC:
- 785901024750
- Item #:
- 1529843
Pressure switch 9012G, adjustable scale, 2 thresholds, 3.0 to 150 PSIG
- MFR #:
- 9012GAW5G17
- UPC:
- 785901024750
- Item #:
- 1529843
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$571.26
each
Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and more. Classes 9012, 9013, 9016, 9036, 9037 and 9038.
Manuals and Documentation
Features
- 9012G industrial pressure switches control circuit rated for pneumatic and hydraulic systems
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Drift proof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- For use in sensitive pressure control application
- 1/4-18 NPTF pressure
- +/- 2.5 % full scale adjustable differential at mid range
- Adjustable differential
- 1/2 in NPT conduit entrance
| Manufacturer Part Number | 9012GAW5G17 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901024750 |
| EAN | 0785901024750 |
| Country Of Origin | MX |
| Dimensions | 3.5 in W x 3.11 in D x 5.55 in H |
| Enclosure Type | NEMA 4/4X/13 |
| Housing Material | Die Cast Aluminum Alloy |
| Series | 9012G |
| Temperature Rating | -10 to 185 deg F |
| Type | Single Stage Low Pressure |
| Alternative Part Number | 8152528 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | CE Certified | CSA C22.2 No 14/LR25490 Class 3211-03 | IEC 68-2-6/58-2-27 | REACH Compliant | UL 50/508/File E12158 CCN NKPZ and CCN NTHT | RoHS Compliant | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP) , which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | Industrial, Pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical |
| Connection Material | Zinc Plated Steel/Nitrile |
| Connection Type | Screw Clamp |
| Contact Configuration | 1CO SPDT-DB |
| Diaphragm Material | Nitrile |
| Differential | 6 to 30 psi |
| Maximum Pressure | 475 psi |
| Operating Cycles | 120 cpm |
| Pressure Rating | 3 to 150 psi |
