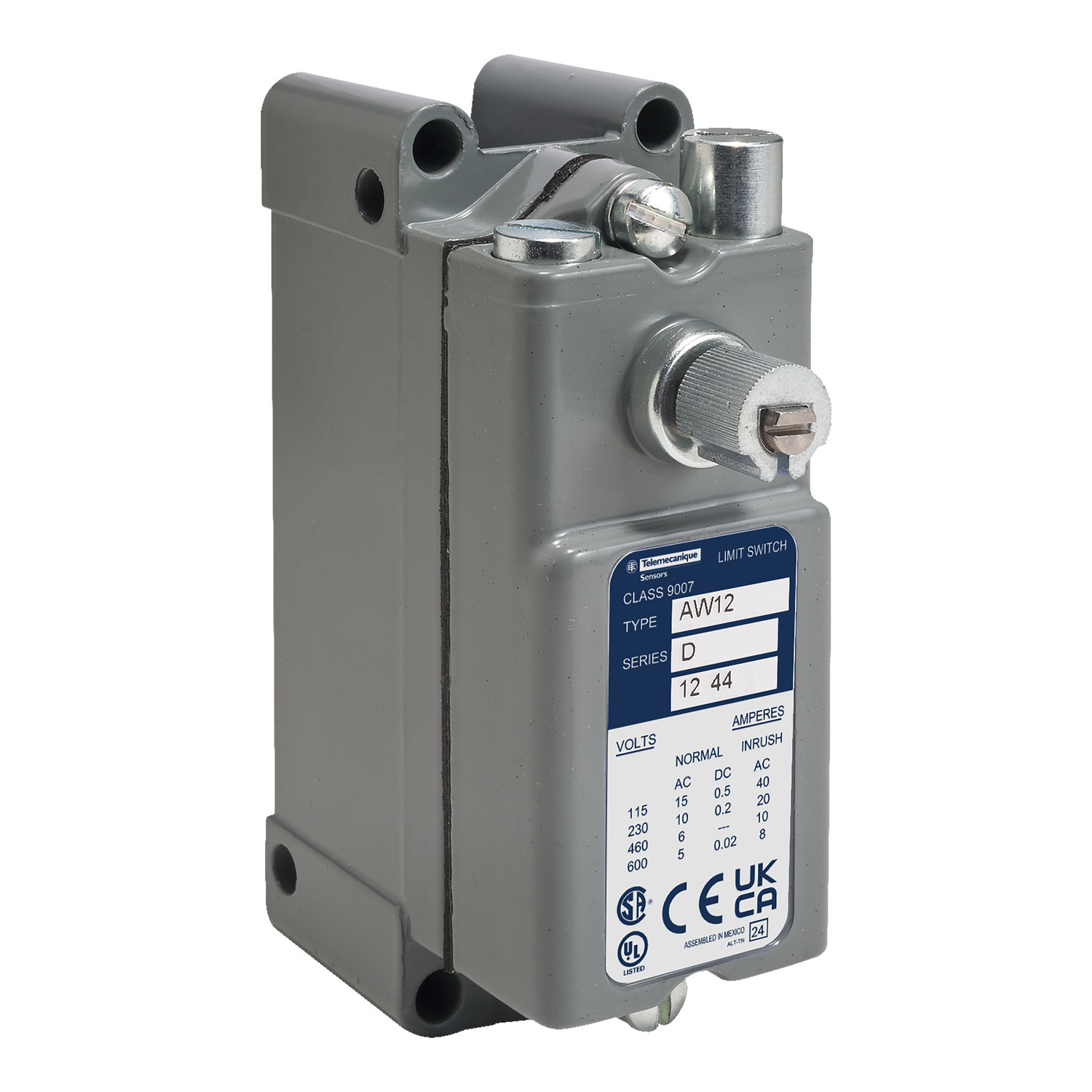

Limit switch, 9007, 600 VAC 10amp aw +options
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007AW19
- UPC:
- 785901809425
- Item #:
- 152923
Limit switch, 9007, 600 VAC 10amp aw +options
- MFR #:
- 9007AW19
- UPC:
- 785901809425
- Item #:
- 152923
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$455.70
each
LIMIT SWITCH 600VAC 10AMP AW +OPTIONS
Manuals and Documentation
| Catalog Number | 9007AW19 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Action | From left convertible to right;CCW convertible to CW;Lateral approach, 1 direction programmable;Snap action |
| Actuator | Cast zinc;Rotary head;Spring return without operating lever cast zinc |
| Amperage Rating | 10 |
| Application | Precision |
| Connection | 1-2 screw-clamp terminals AWG 22...AWG 12) |
| Contact Configuration | Form AA;Form BB;2 NC DPST-NC-DB;2 NO DPST-NO-DB |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | Surface |
| Number of Poles | 2 |
| Special Features | METAL,PLUG-IN |
| Standard | IP65 IEC 60529 |
| UPC | 785901809425 |
| GTIN | 00785901809425 |
| Item Type | Limit switch |
| Size | 1.44 |
| Operating Temperature | -65-185 A Degrees F |
| Voltage Rating | 0.6 A 600 V AC, B600 NEMA RATING DESIGNATION-0.75 A 480 V AC, B600 NEMA RATING DESIGNATION-1.5 A 240 V AC, B600 NEMA RATING DESIGNATION-3 A 120 V AC, B600 NEMA RATING DESIGNATION-0.1 A 600 V DC, Q600 NEMA RATING DESIGNATION-0.3 A 250 V DC, Q600 NEMA RATING DESIGNATION-1 A 125 V DC, Q600 NEMA RATING DESIGNATION |
