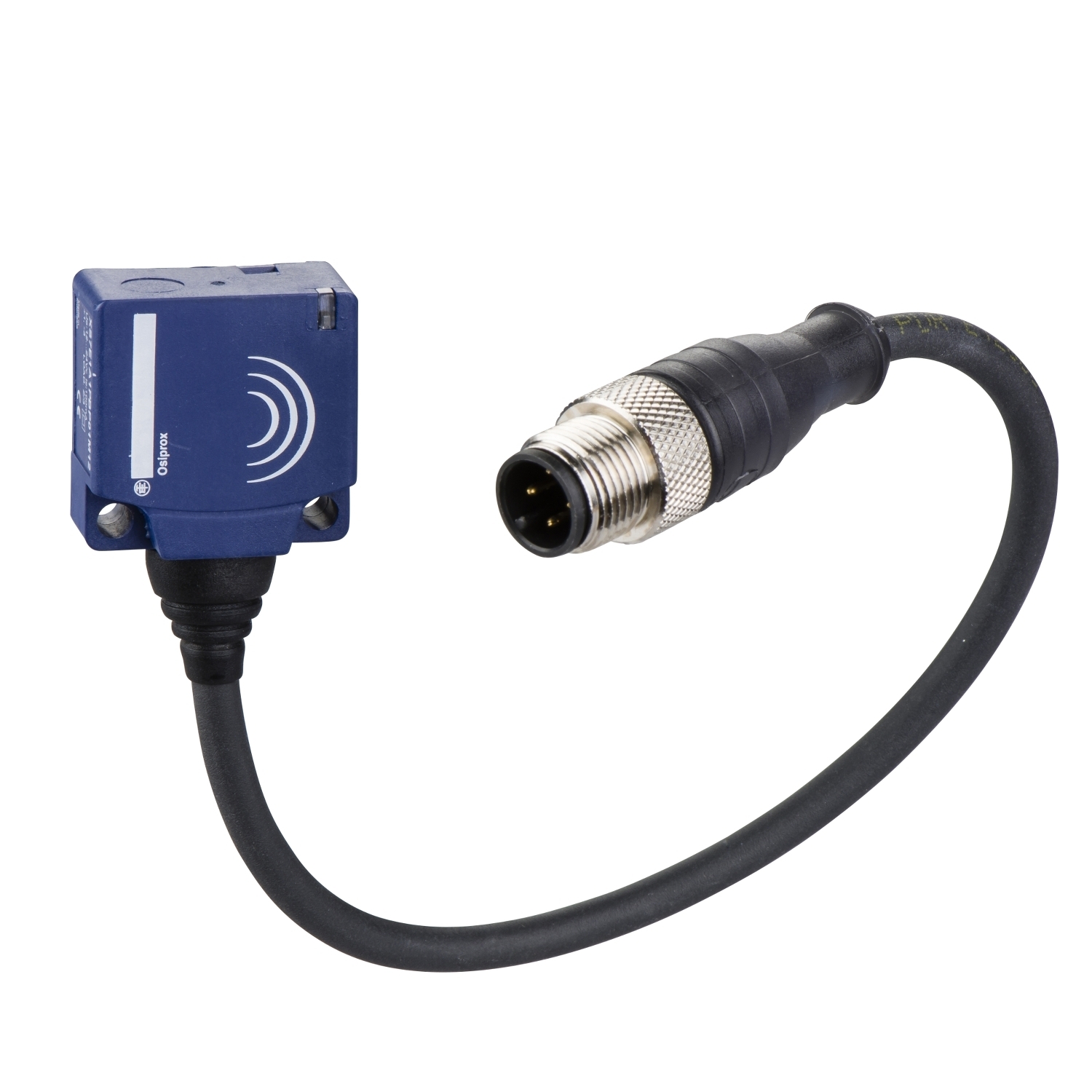

This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in a flat form design and fixed body. It is flush mountable and in a frontal detection face. It supports 10mm nominal sensing distance and 1 NO PNP discrete output. The inductive proximity sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, 10V to 36V DC and no load current consumption of =10mA. It is furnished with 4-pin M12 remote male connector for electrical connection. It is an IP67 double insulation rated product. The enclosure is made of PBT. Its dimensions are 26mm (width) x 13mm (depth) x 26mm (height). It weighs 0.04kg. It is suitable for railway, mobile equipment, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE. Inductive sensors come in flush and non flush versions, M8, M12, M18, M30 short and long bodies cylindrical forms, standard cubic, rectangular and flat forms. The inductive proximity sensors for non contact sensing of metal objects up to 60mm. It is designed for use in industrial applications relating to presence detection.
