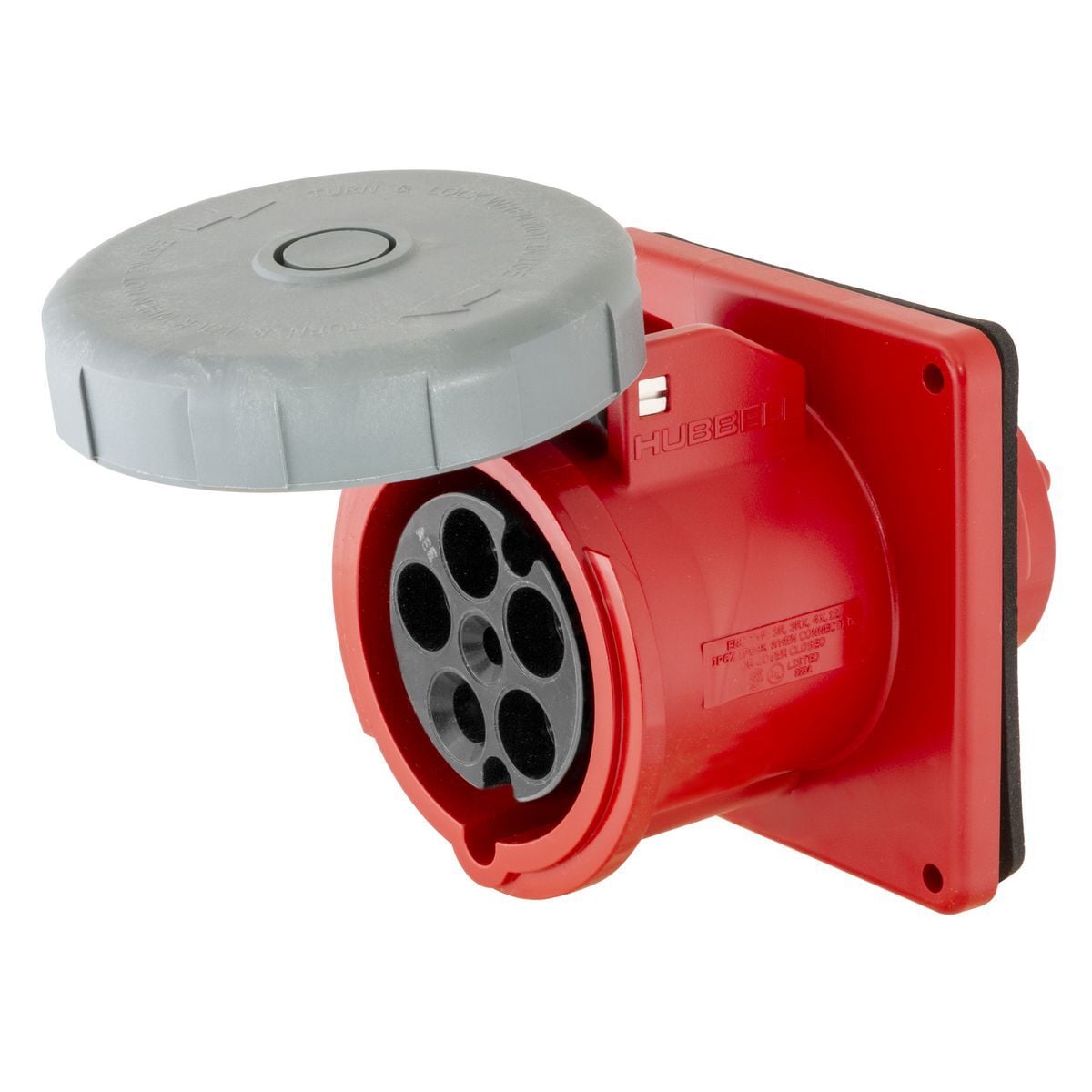

HBL520R6W Grounding Heavy Duty Female Multi-Phase Pin and Sleeve Receptacle, 220 to 415 V AC, 16/20 A, 4 Poles, 5 Wires, Red
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL520R6W
- UPC:
- 783585574677
- Item #:
- 1521974
HBL520R6W Grounding Heavy Duty Female Multi-Phase Pin and Sleeve Receptacle, 220 to 415 V AC, 16/20 A, 4 Poles, 5 Wires, Red
- MFR #:
- HBL520R6W
- UPC:
- 783585574677
- Item #:
- 1521974
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Watertight Devices - Hubbells IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbells horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting line of sight disconnecting means.
Manuals and Documentation
| Catalog Number | HBL520R6W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | High Ampacity Watertight Connections |
| Color | Red |
| Connection | Screw Mount |
| Insulation | Insulated Body |
| Material | Thermoplastic |
| Mounting | Screw |
| Number of Poles | 4 |
| Number of Wires | 5-Wire |
| Special Features | Watertight |
| Standard | CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed to UL1682 |
| UPC | 783585574677 |
| GTIN | 00783585574677 |
| Item Type | Watertight Receptacle |
| Size | Standard Sized Product |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact |
| Voltage Rating | 200/346-240/415 V;220/380-240/415 V |
| Wire Size | #14 AWG to #10 AWG |
