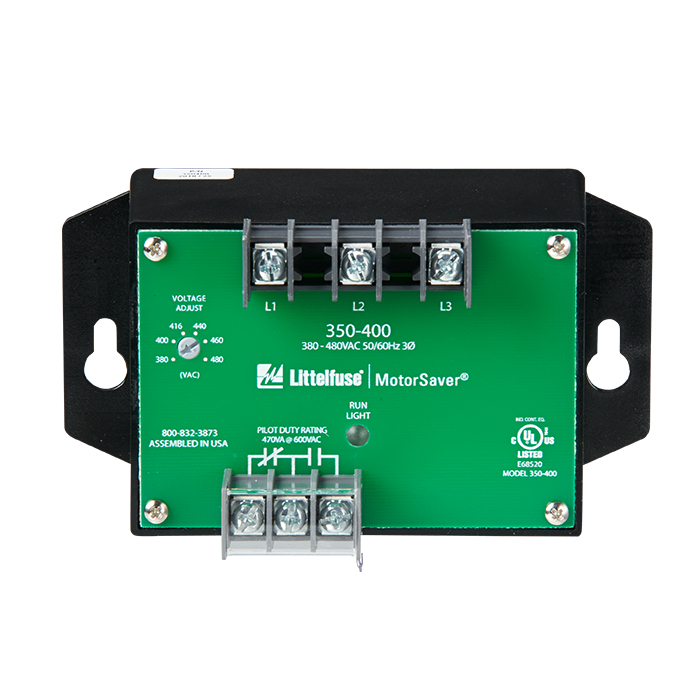

350-400-2-5 Symcom 3Ph Vm/380-480V/Adj.Rd/Dpdt 480V Relay

MFR: Littelfuse
MFR #: 350-400-2-5
UPC: 079458989953
Item #: 1521030

350-400-2-5 Symcom 3Ph Vm/380-480V/Adj.Rd/Dpdt 480V Relay

MFR #: 350-400-2-5
UPC: 079458989953
Item #: 1521030
Availability
Location Available Qty
Available Available to Order
$1248.28 each

The 350 is a heavy-duty voltage monitor. This product should be used when high current relays or dual contacts are required, or 480V controls are used. Since the 350 uses heavy-duty relays, it comes in fixed voltage range models rather than a dual autoranging version like the Model 250. The 350-200 has a 15A general purpose contact. The 350-400 provides a SPDT (Form C) relay rated to switch up to 600V, allowing the use of 480V controls, eliminating the need for a control power transformer to step the voltage down to 120-240V. Several DPDT (two Form C contacts) relay models are also available. The 350 microcontroller-based family of products are low cost yet highly advanced solutions to heavy-duty problems. The 350 includes advanced single LED diagnostics. Five different light patterns distinguish faults and normal operating conditions. Other options such as high voltage trip and adjustable restart delay are available.

Catalog Number
350-400-2-5
Manufacturer
Littelfuse
Brand
Littelfuse
Country of Origin
United States
Made in USA
Yes
Special Features
5YR WARR
Standard
UL/CSA/CE
UPC
079458989953
GTIN
00079458989953
Operating Temperature
-40 to 158
Voltage Rating
380-480
