Discontinued
Square D

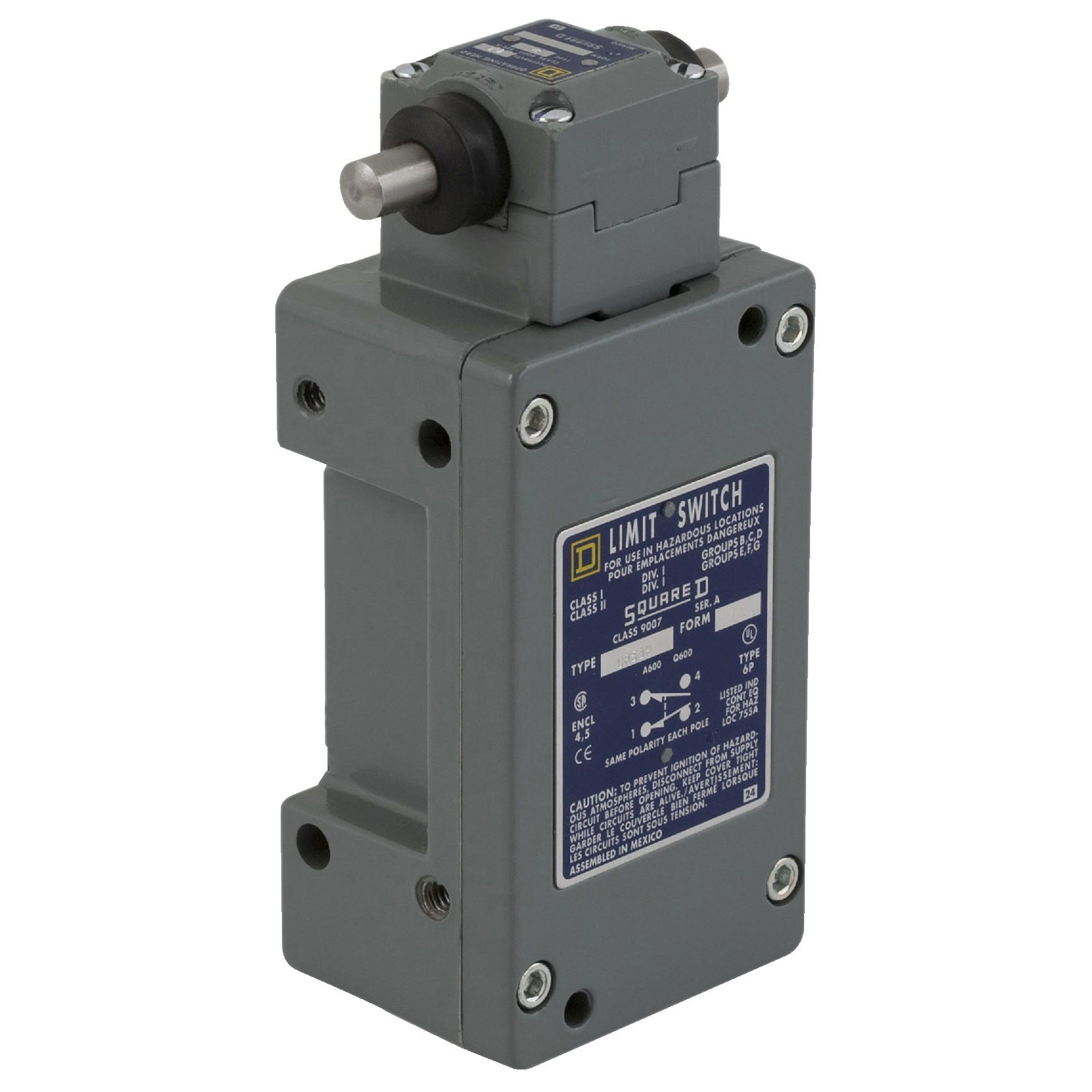

9007CR53H Fixed Heavy Duty Limit Switch, 600 V AC, 10 A, Stay Put Side Plunger Actuator, 1NO-1NC Contact, 1 Poles

MFR:
Schneider Electric
MFR #:
9007CR53H
UPC:
785901637912
Item #:
151522

Availability

Location Available Qty
Available Available to Order

LIMIT SWITCH 600V 10AMP C +OPTIONS

Manuals and Documentation
Catalog Number 9007CR53H
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty: 18 months
Country of Origin Mexico
Made in USA No
Action LATERAL APPROACH, 1 DIRECTION,ON END,SNAP ACTION
Actuator STAINLESS STEEL STAY PUT SIDE PLUNGER -)
Amperage Rating 10
Application HAZARDOUS LOCATION BOX
Connection SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Contact Configuration NC-NO
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Mounting By The Body
Number of Poles 1
Operating Cycles 1000000 CYCLES
Special Features WITHOUT
Standard 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
UPC 785901637912
GTIN 00785901637912
Item Type LIMIT SWITCH,PLUNGER HEAD
Size 2.72 IN,3.12 IN,6.1-6.1 IN
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -20-185 A Degrees F HAZARDOUS LOCATION
Voltage Rating 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.1 A 600 V DC, Q600 NEMA-0.27 A 250 V AC, Q600 NEMA-0.55 A 125 V DC, Q600 NEMA
