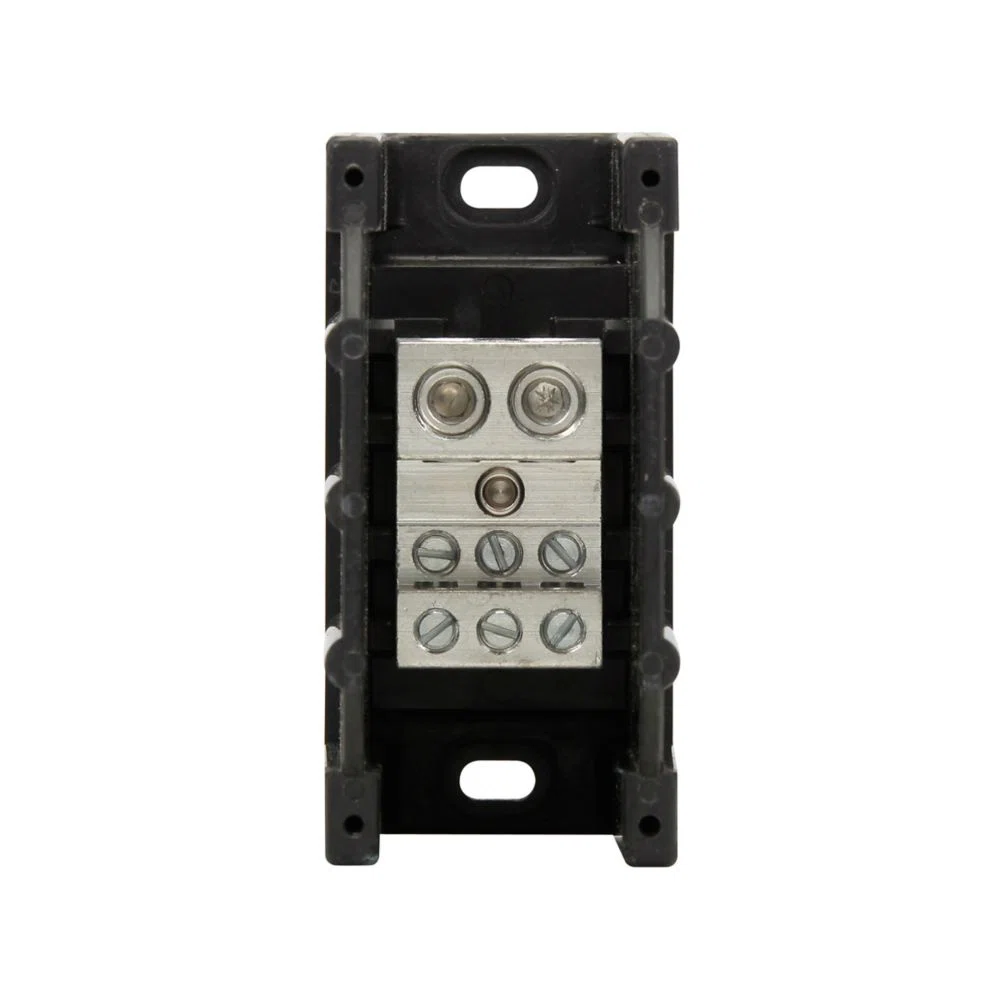

16325-1 Barrier Power Distribution Block, 600 V AC/DC, 350 A, 1 Pole, (2) 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, Aluminum/Thermoplastic
- MFR:
- Eaton
- MFR #:
- 16325-1
- UPC:
- 051712149297
- Item #:
- 15143
16325-1 Barrier Power Distribution Block, 600 V AC/DC, 350 A, 1 Pole, (2) 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, Aluminum/Thermoplastic
- MFR #:
- 16325-1
- UPC:
- 051712149297
- Item #:
- 15143
Availability
| Location | Available Qty |
|---|---|
| Available | 5 ea |
$255.35
each
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Manuals and Documentation
Features
- 10 kA short circuit current rating
- (2) 14 to 2/0 AWG copper, 8 to 2/0 AWG aluminum line side and (6) 14 to 4 AWG copper, 8 to 4 AWG aluminum load side wire
| Manufacturer Part Number | 16325-1 |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712149297 |
| Country Of Origin | MX |
| Amperage Rating | 350 A |
| Color | Black |
| Dimensions | 1.98 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Series | 163 |
| Type | Barrier |
| Voltage Rating | 600 V AC/DC |
| Alternative Part Number | 7602643 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | CE Certified | CSA 6228-01 Guide XCFR2 | RoHS Compliant | UL 1059File No. E221592 | UL 94 V-0 Flammability Rating |
| Application | Power Distribution, Electrical Assemblies, Panels and EOEMs Applications |
| Number Of Poles | 1 |
| Short Circuit Current Rating | 10 kA |
| Wire Size | (2) 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load |
