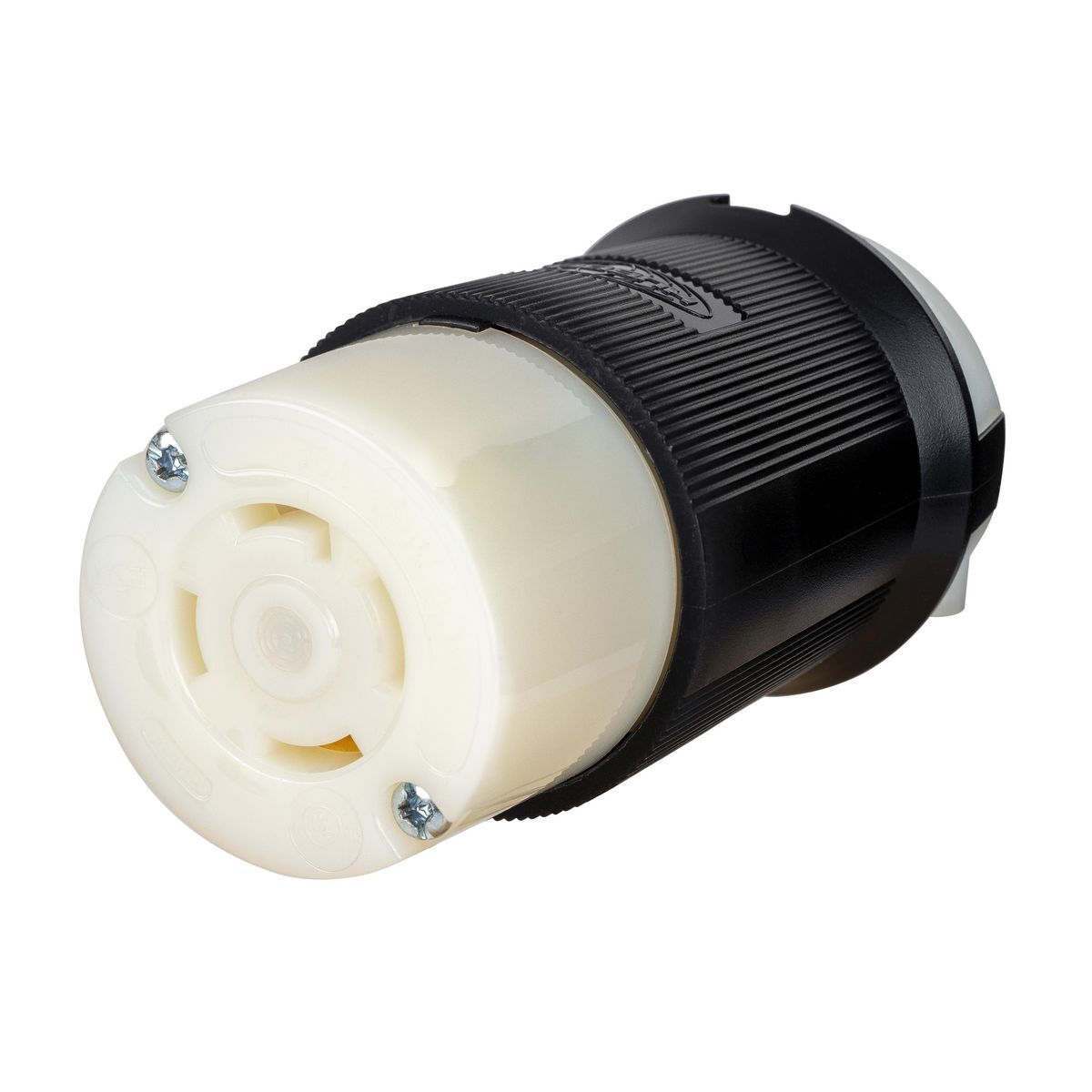

HBL2733ST Twist-Lock Locking Connector, 480 V AC, 30 A, 3 Poles, 4 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2733ST
- UPC:
- 783585719054
- Item #:
- 1510224
HBL2733ST Twist-Lock Locking Connector, 480 V AC, 30 A, 3 Poles, 4 Wires, Black/White
- MFR #:
- HBL2733ST
- UPC:
- 783585719054
- Item #:
- 1510224
Availability
| Location | Available Qty |
|---|---|
| Available | 2 ea |
$132.53
each
EdgeConnect Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.
Manuals and Documentation
| Catalog Number | HBL2733ST |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Application | Industrial |
| Color | Black;White |
| Connection | EdgeConnect™ Screwless Termination |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 6 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | 3 |
| Special Features | EdgeConnect™ Technology, Screwless Termination |
| Standard | Listed to UL 498, Fed.Spec. W-C-596, Certified to CSA C22.2 No.42 |
| UPC | 783585719054 |
| GTIN | 00783585719054 |
| Item Type | Connector |
| Size | Standard Sized Product |
| Environmental Conditions | IP20 Suitability |
| Temperature Rating | Maximum Continuous 75 Degrees C, Minimum -40 Degrees C (w/o impact) |
| Voltage Rating | 3P 480 |
