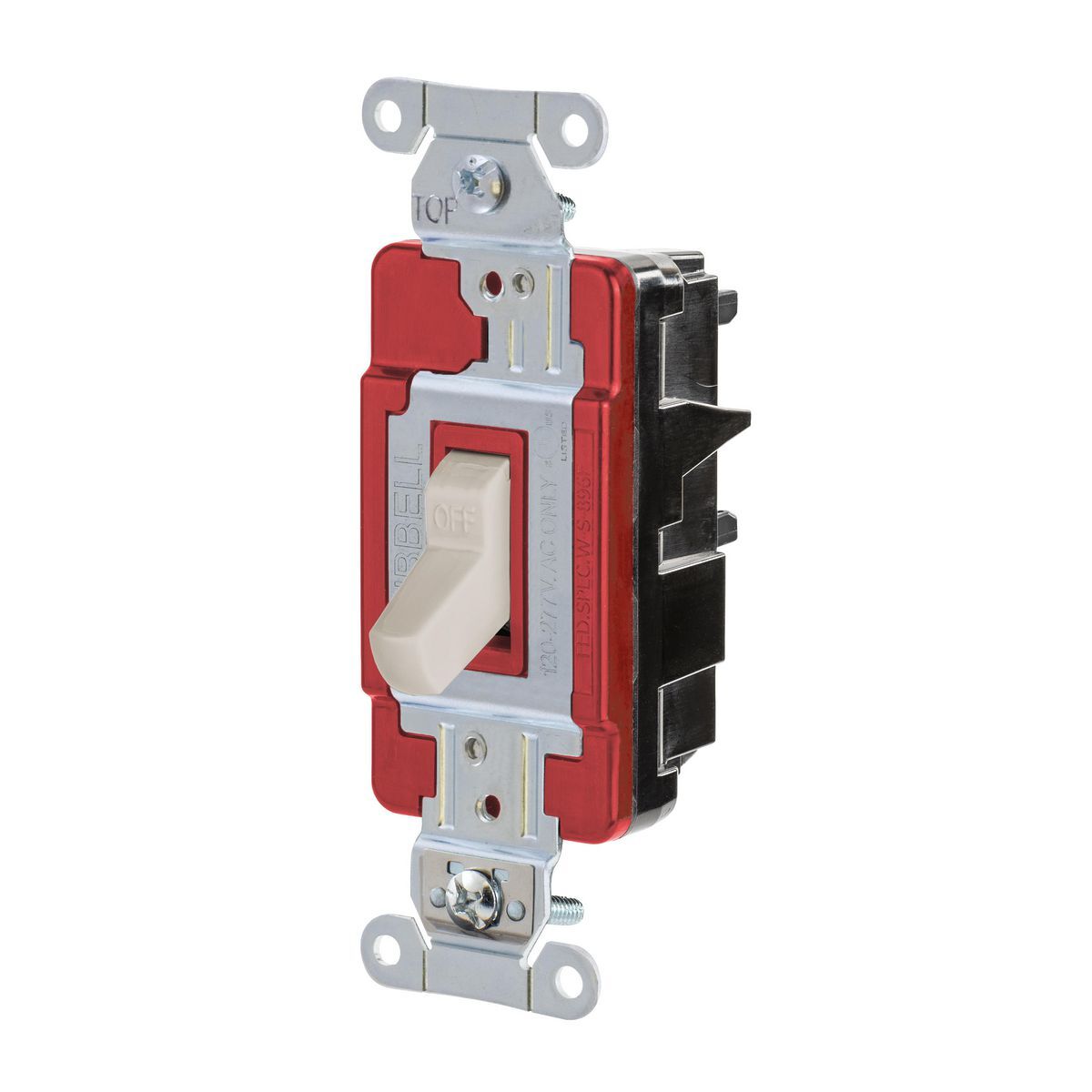

HBL1223STLA EdgeConnect 3-Way Toggle Switch, 120/277 V, 20 A, 3 W Power Rating, 2-Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL1223STLA
- UPC:
- 783585963716
- Item #:
- 1509643
HBL1223STLA EdgeConnect 3-Way Toggle Switch, 120/277 V, 20 A, 3 W Power Rating, 2-Position Contact
- MFR #:
- HBL1223STLA
- UPC:
- 783585963716
- Item #:
- 1509643
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$41.61
each

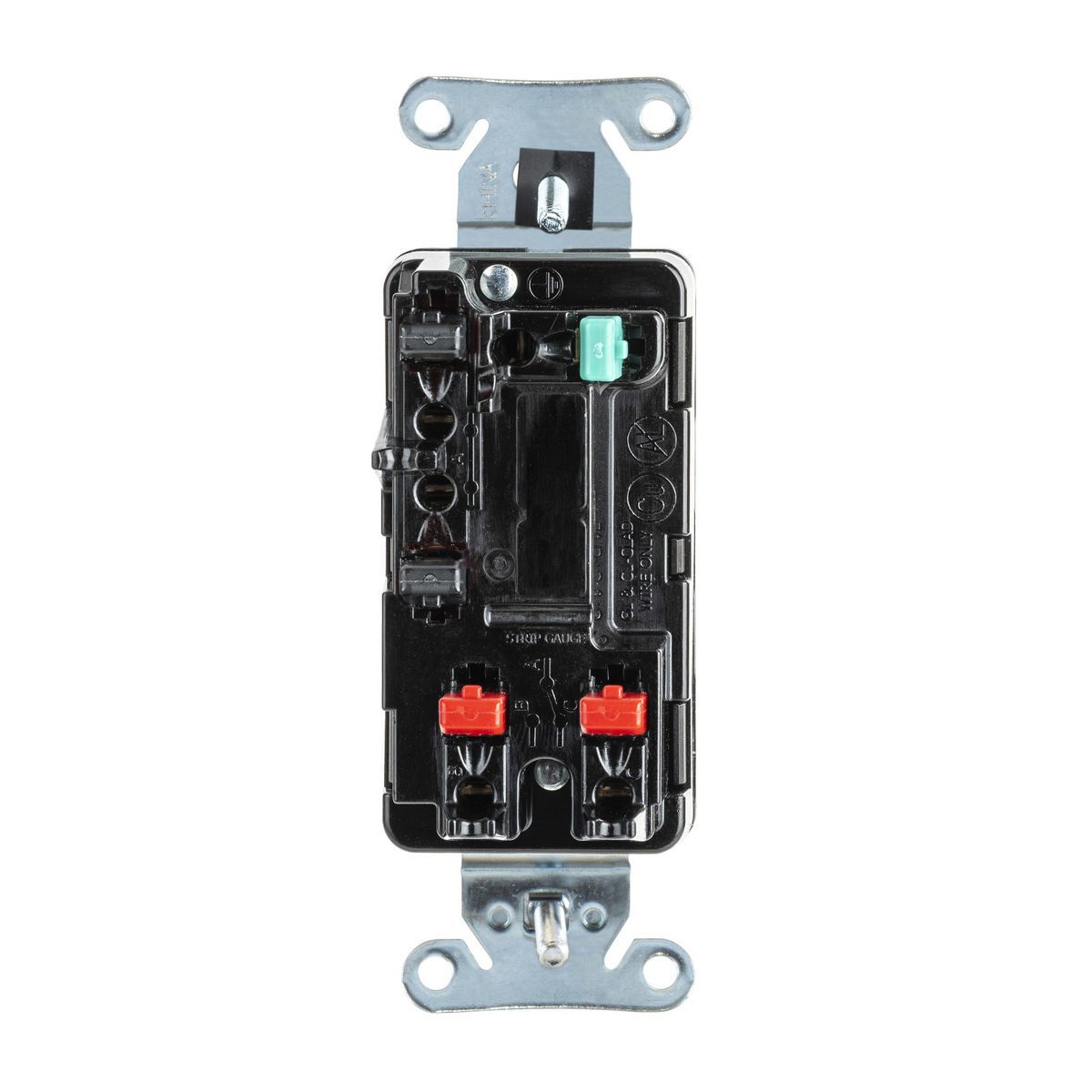

EdgeConnect Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high qualilty result. Elapsed time About 11 seconds!
Manuals and Documentation
| Catalog Number | HBL1223STLA |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Action | Toggle |
| Actuator | Toggle |
| Amperage Rating | 20 |
| Application | Industrial |
| Color | Light Almond |
| Connection | Spring Termination |
| Contact Configuration | Two Position |
| Contact Rating | 20A |
| Insulation | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Material | Polycarbonate |
| Mounting | Strap |
| Number of Poles | 3 |
| Operating Cycles | Minimum 4.8 times rated current for 100 cycles |
| Special Features | Screwless Termination |
| Standard | UL20/CSA C22.2 No.111-18;Fed Spec is W-S-896;NEMA® BI-WD and WD-6 |
| UPC | 783585963716 |
| GTIN | 00783585963716 |
| Item Type | Switch |
| Environmental Conditions | UL 94V-2 |
| Operating Temperature | Max. continuous: 75 Degrees C; Min. continuous: -40 Degrees C without impact |
| Voltage Rating | 120/277 |
