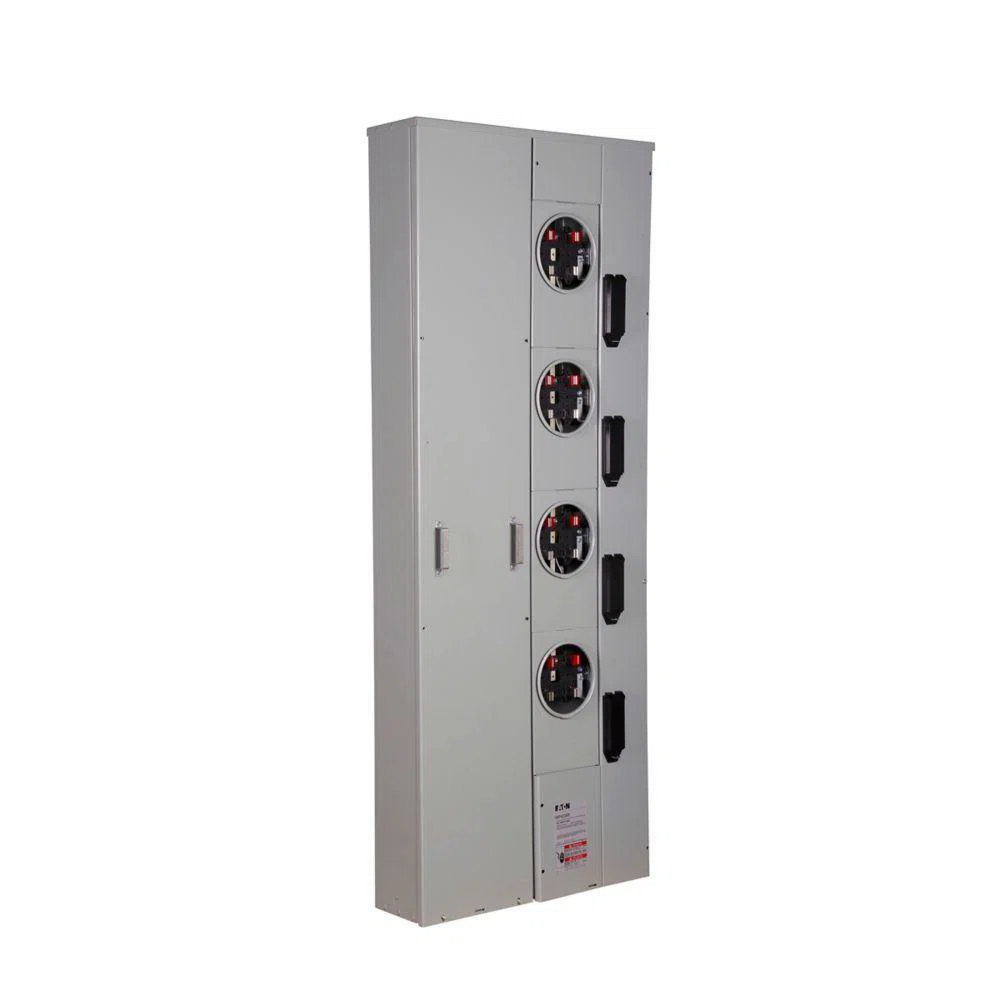

1MP4206R 3-Wire Group Metering Meter Pack, 200 A Self-Contained Socket, Underground Feed, 120/240 V AC, 600 A Bus
- MFR:
- Eaton
- MFR #:
- 1MP4206R
- UPC:
- 786849052447
- Item #:
- 150876
1MP4206R 3-Wire Group Metering Meter Pack, 200 A Self-Contained Socket, Underground Feed, 120/240 V AC, 600 A Bus
- MFR #:
- 1MP4206R
- UPC:
- 786849052447
- Item #:
- 150876
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$10,748.95
each
Eaton's Meter Packs, or All-In-Ones, allow multi-tenant metering in a single location and thus provide a space and installation cost savings for residential and light commercial applications. Ideal for garden apartments, small condominiums and townhouses where six or less units are metered through one centrally located meter pack.
Manuals and Documentation
Features
- Units are self-contained (main terminal box included for installations requiring up to 6 m socket positions in a single enclosure)
- Units are not gangable with any other metering device
- Series rating up to 100 kA
- Bondable neutral
- Provision for 2-pole breaker
| Manufacturer Part Number | 1MP4206R |
| Brand | EATON |
| Manufacturer | Eaton |
| UPC | 786849052447 |
| Country Of Origin | US |
| Dimensions | 7.01 in L x 25.5 in W x 64.56 in H |
| Mounting Type | Bolted-On |
| Type | 3-Wire Group Metering |
| Voltage Rating | 120/240 V AC |
| Alternative Part Number | 7459802 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 year |
| Standards Approvals | UL Listed |
| Application | Electrical Assemblies, Panels and EOEMs and Indoor/Outdoor Applications |
| Includes | Main Terminal Box |
| Breaker Type | CCV2-X/CCVH2-X/CVS2-XMM/CV2-XMM/CVH2-XMM |
| Bus Amps | 600 A |
| Feed Type | Underground |
| Main Lugs | Terminal Box |
| Number Of Meter Sockets | 4 |
| Phase | 1 |
| Socket Amps | 200 A |
| Socket Cover Style | Ring |
| Socket Jaws | 4 |
| Socket Type | Self-Contained |
| Wire Size | 1/0 AWG to 300 kcmil, 14 to 2/0 AWG |
