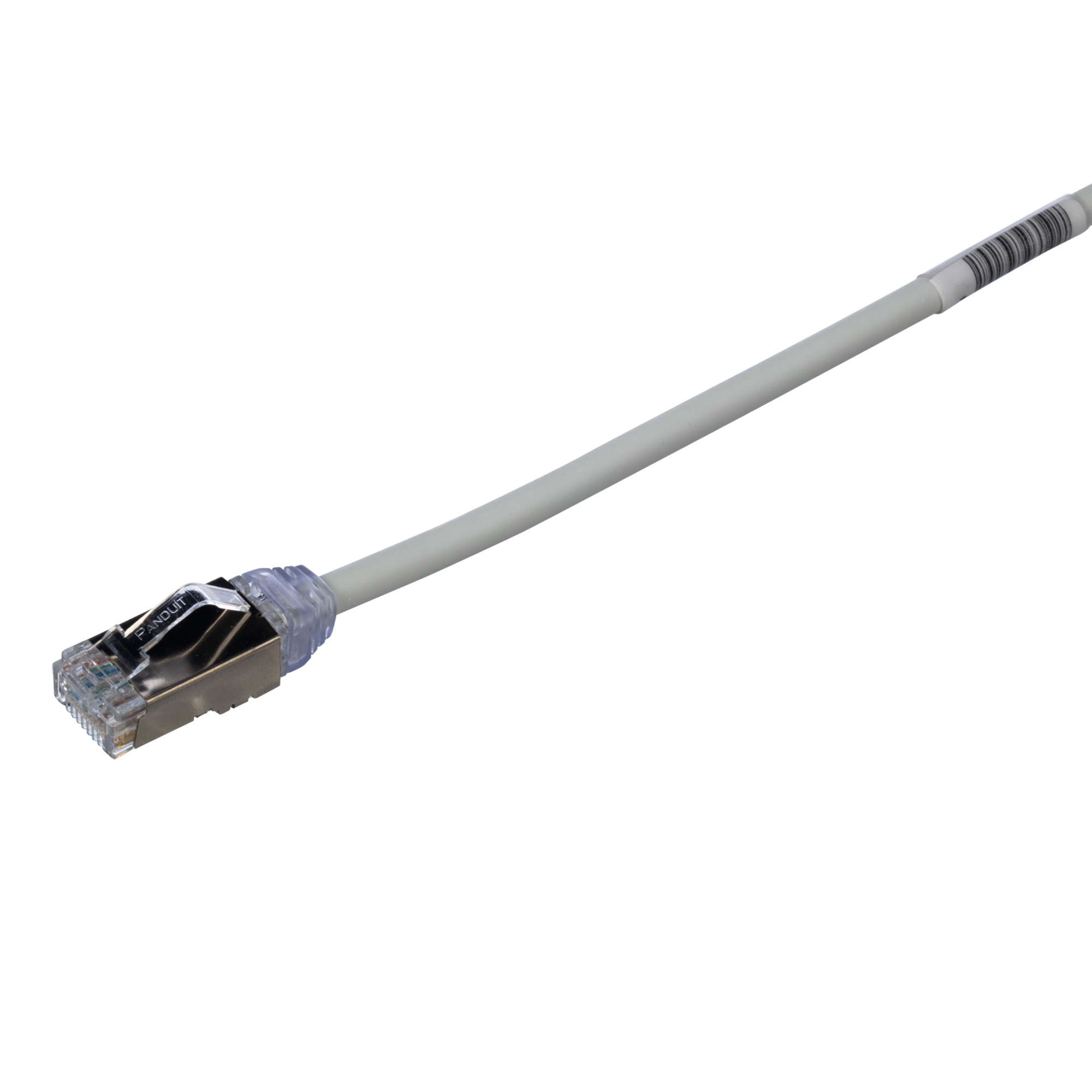

STP28X0.5MIG PanNet TX6A-28 Class EA Small Diameter Patch Cord, Cat 6A, 28 AWG F/UTP Shielded Solid Copper Conductor, RJ45 Modular Plug Connector, 0.5 m L Cord
- MFR:
- Panduit
- MFR #:
- STP28X0.5MIG
- UPC:
- 074983003136
- Item #:
- 1508289
STP28X0.5MIG PanNet TX6A-28 Class EA Small Diameter Patch Cord, Cat 6A, 28 AWG F/UTP Shielded Solid Copper Conductor, RJ45 Modular Plug Connector, 0.5 m L Cord
- MFR #:
- STP28X0.5MIG
- UPC:
- 074983003136
- Item #:
- 1508289
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$28.83
each
The TX6A-28 10Gig Cat 6A STP Patch Cord is a 0.5-Meter, 0.185-inch (4.7mm) diameter, Int'l Grey cord constructed of 28 AWG, shielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals and Documentation
| Catalog Number | STP28X0.5MIG |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| Color | International Gray |
| Conductor Material | Copper |
| Jacket Material | LSZH Material |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/ |
| UPC | 074983003136 |
| GTIN | 00074983003136 |
| Item Type | Patch Cord |
| Length | 1.64 |
| Length UOM | Inch |
| Outside Diameter | 0.19 IN |
| Temperature Rating | 167 °F |
| Wire Size | 28 |
