SCHNEIDER ELECTRIC

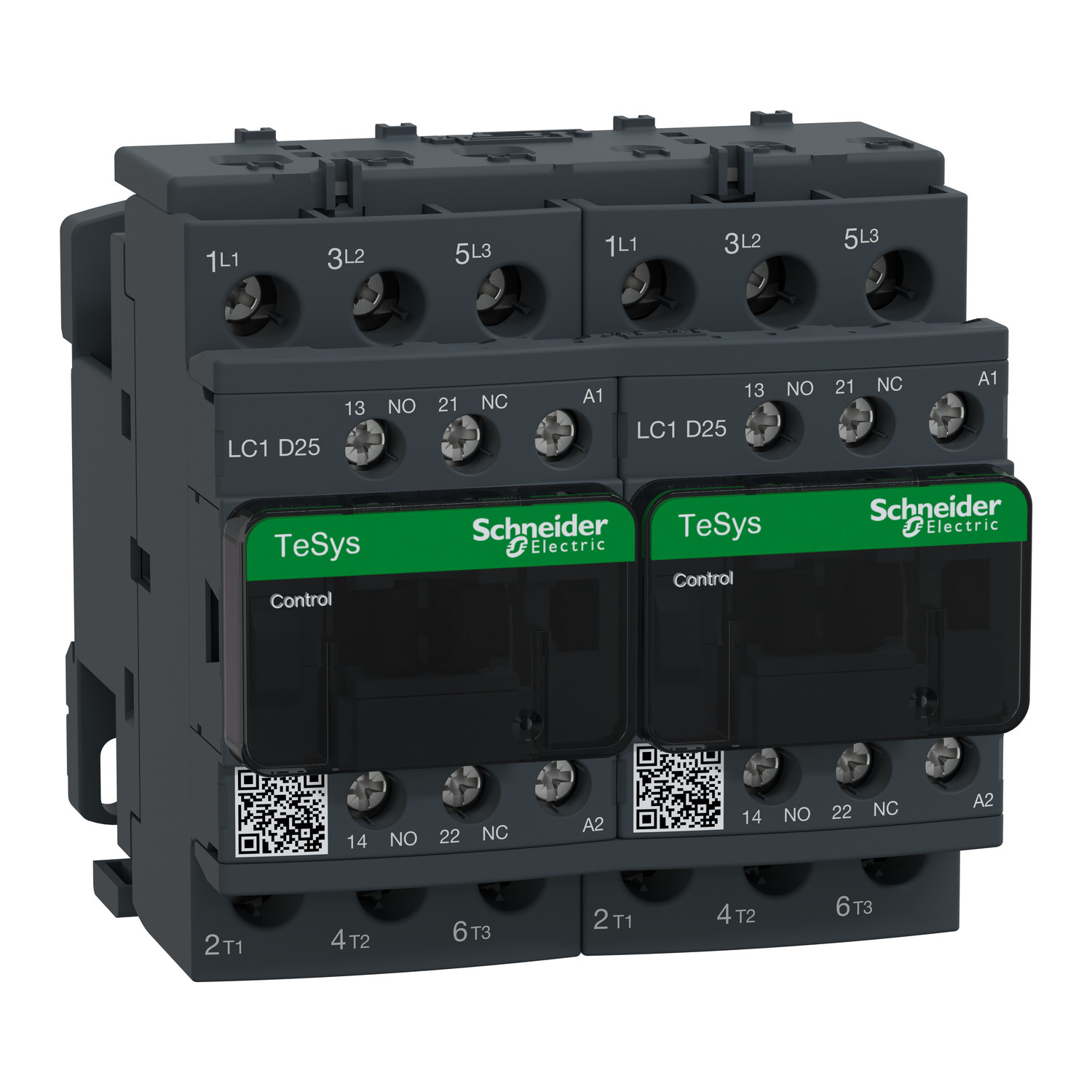

LC2D25FE7 TeSys D Reversing Contactor, 115 V AC V Coil, 25/40 A, 1NO-1NC/3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC2D25FE7
Item #:
150511

Availability

Location Available Qty
Available Available to Order
$727.45 each

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). It provides 110V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Manuals and Documentation
Catalog Number LC2D25FE7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Resistive load;motor control
Coil Voltage 115 V AC 50/60 Hz
Connection Control circuit screw clamp terminals 1 1-4 mm²flexible without cable end;control circuit screw clamp terminals 2 1-4 mm²flexible without cable end;control circuit screw clamp terminals 1 1-4 mm²flexible with cable end;control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end;control circuit screw clamp terminals 1 1-4 mm²solid;control circuit screw clamp terminals 2 1-4 mm²solid;power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end;power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end;power circuit screw clamp terminals 1 1-10 mm²flexible with cable end;power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end;power circuit screw clamp terminals 1 1.5-10 mm²solid;power circuit screw clamp terminals 2 2.5-10 mm²solid
Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Rail Plate
Operating Cycles 25...400 Hz
Special Features Without built-in suppressor module
Standard DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCA;CB;CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1474971&lang=en-us
GTIN 03389110386790
Item Type Mechanical;Reversing contactor
