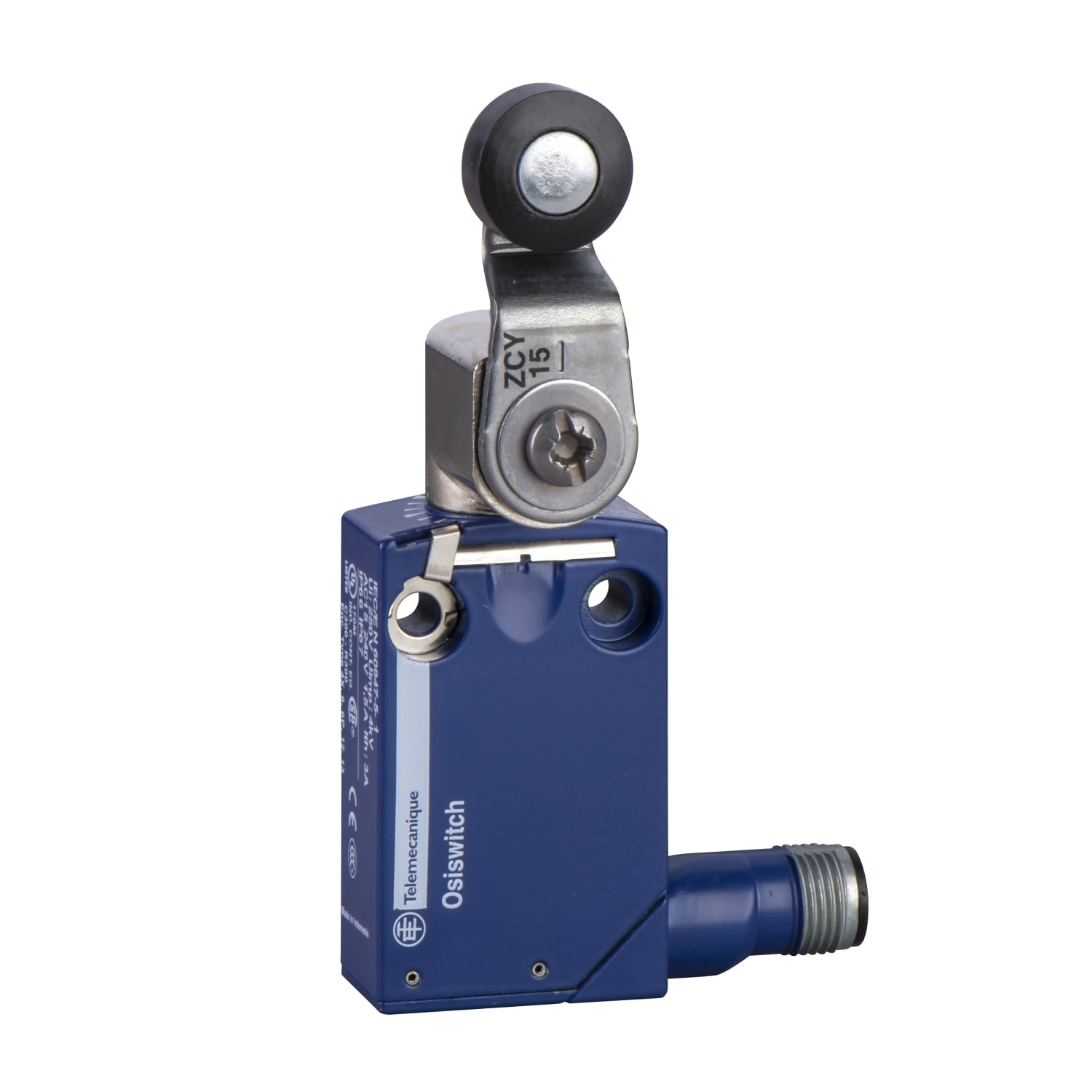

XCMD2115M12 OsiSense Heavy Duty Miniature Modular Standard Limit Switch, 240 V AC, 1.5 A, Spring Return Roller Lever Actuator, 1CO Contact, 1 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCMD2115M12
- UPC:
- 785901965565
- Item #:
- 1502651
XCMD2115M12 OsiSense Heavy Duty Miniature Modular Standard Limit Switch, 240 V AC, 1.5 A, Spring Return Roller Lever Actuator, 1CO Contact, 1 Poles
- MFR #:
- XCMD2115M12
- UPC:
- 785901965565
- Item #:
- 1502651
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

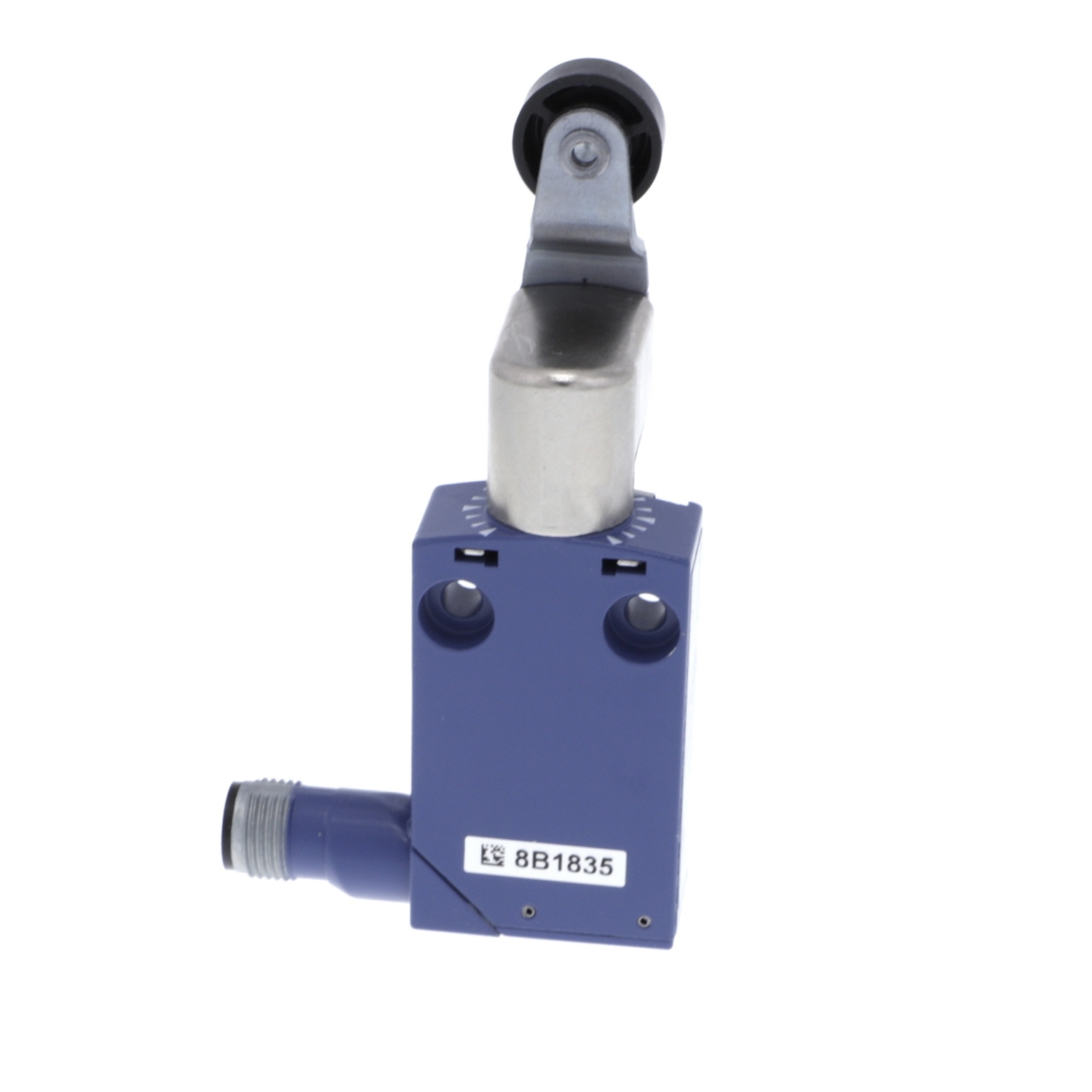

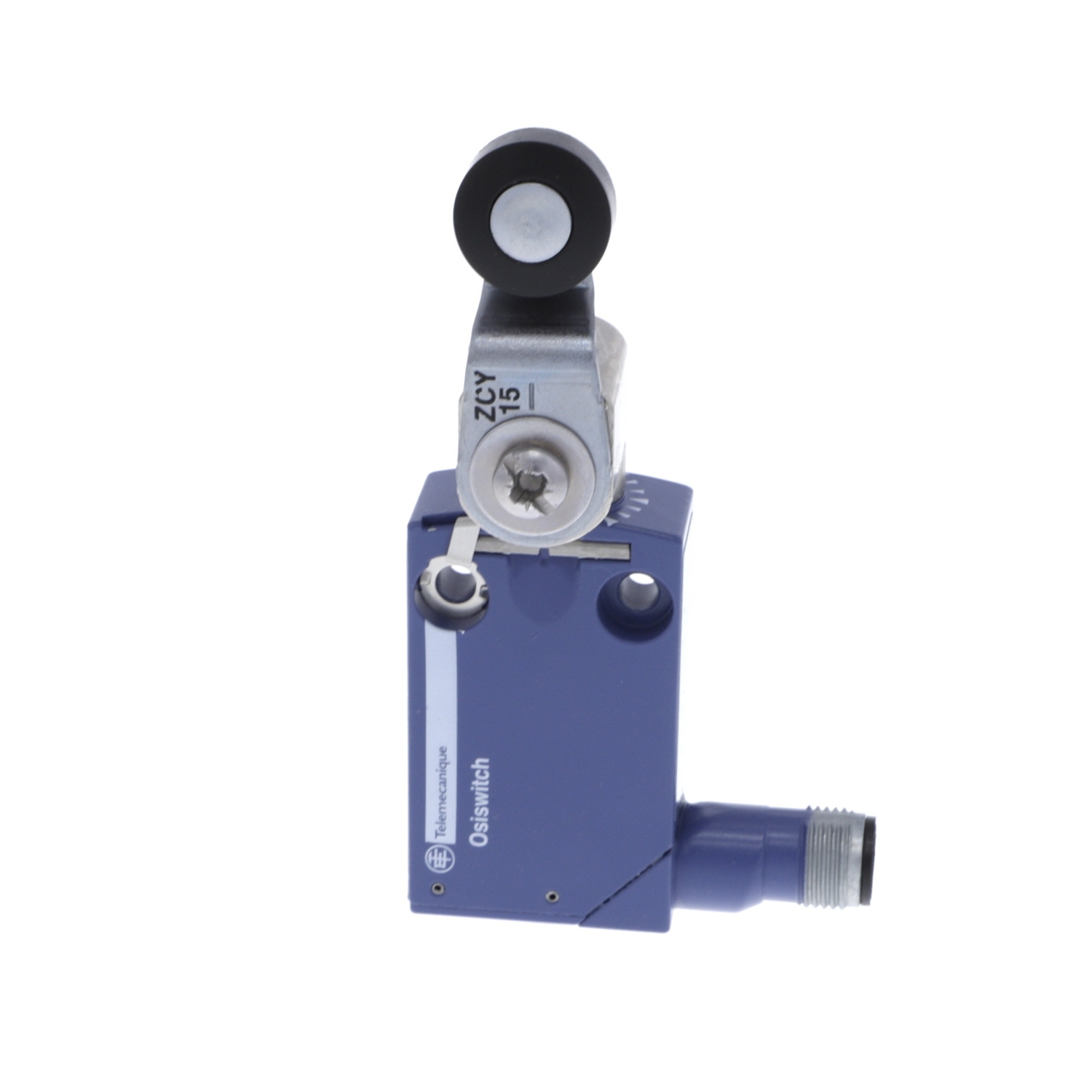

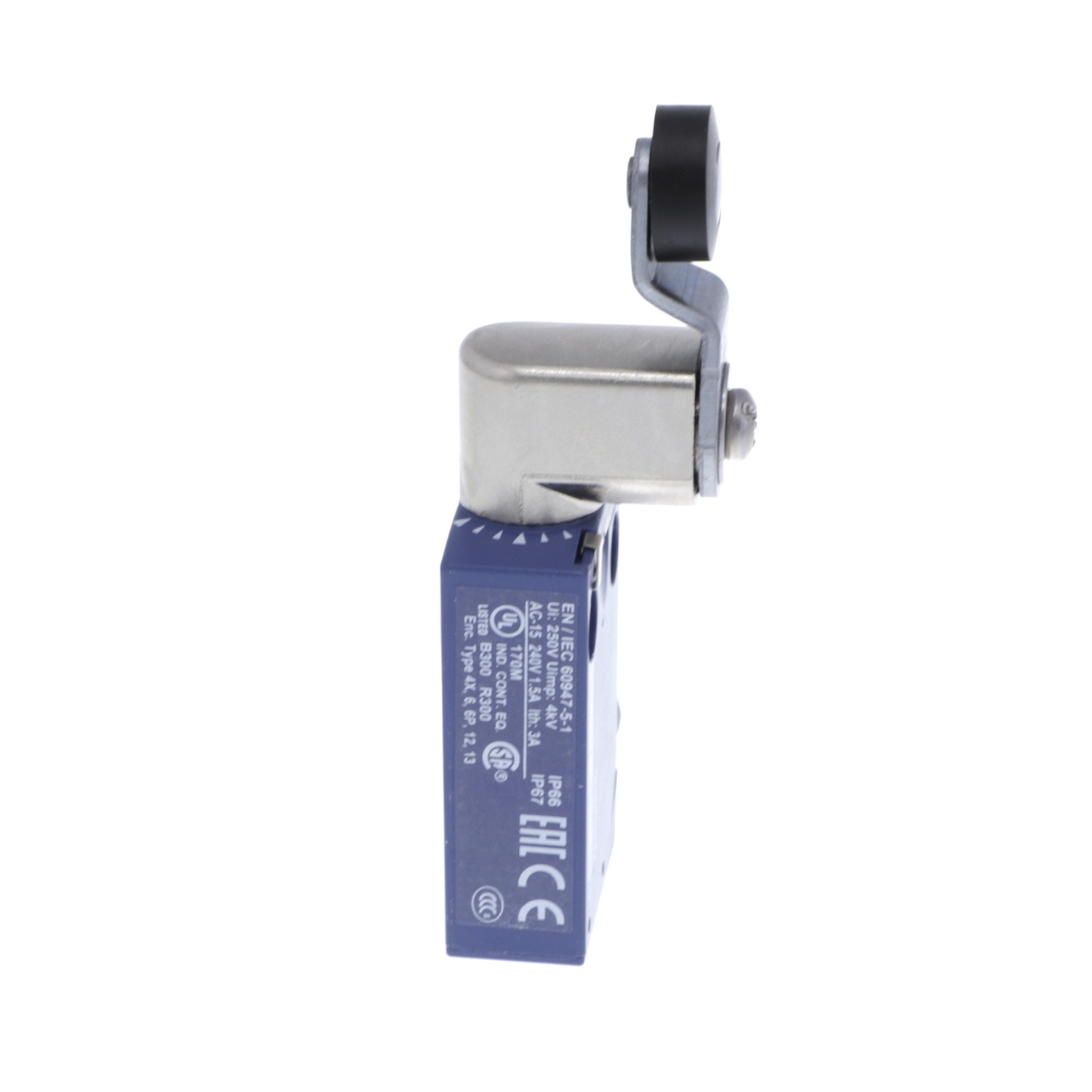

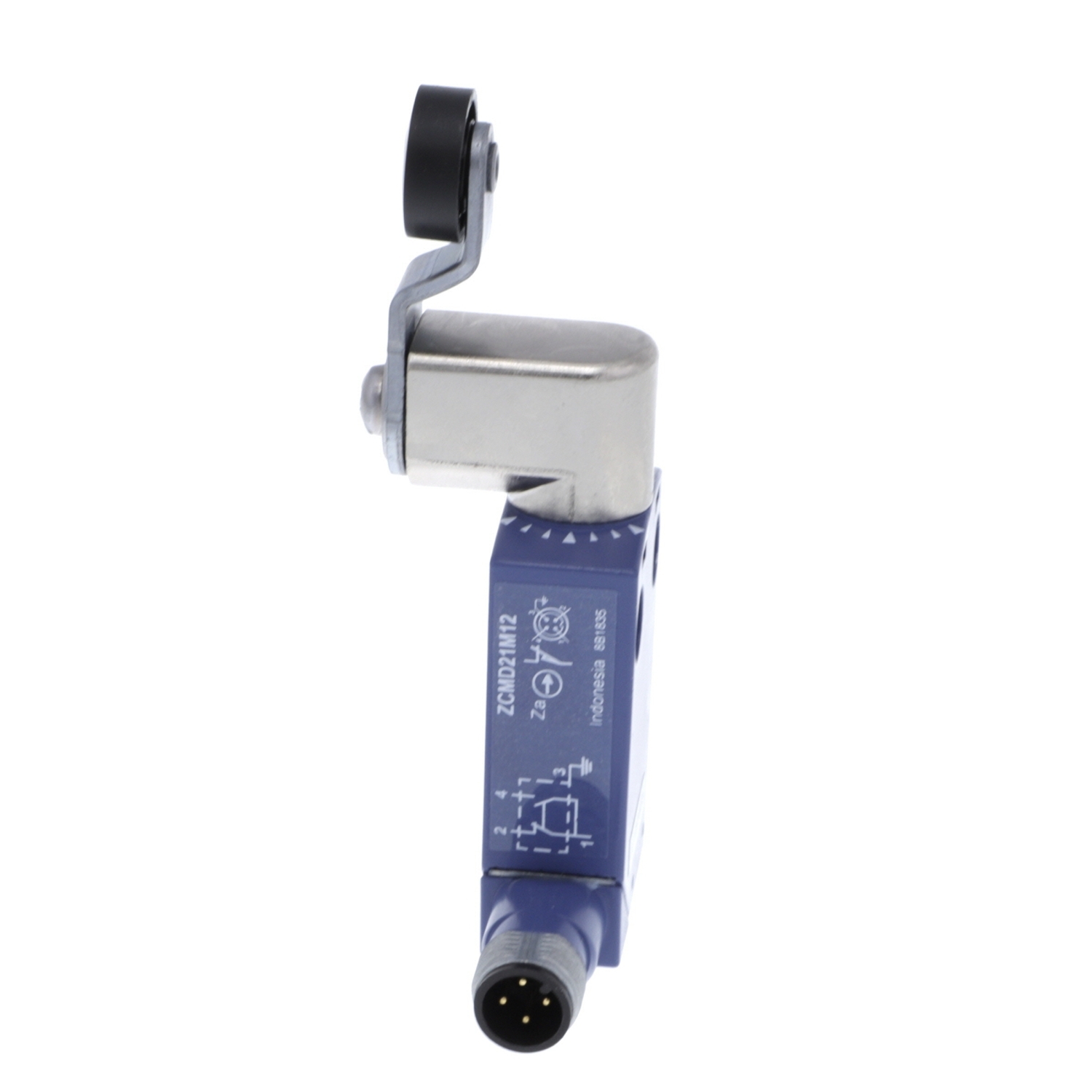

This XCMD miniature format limit switch has a thermoplastic roller lever and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. It has a standard M12 connector, compatible with all existing market sensor cabling.
Manuals and Documentation
| Catalog Number | XCMD2115M12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Snap action;By 30 Degrees cam |
| Actuator | Rotary;Spring return roller lever thermoplastic;Lateral approach, 2 directions |
| Connection | Male connector M12, 4 pins |
| Contact Configuration | 1 C/O |
| Mounting | By The Body |
| Number of Poles | 1 |
| Special Features | IK06 CONFORMING TO EN 50102,IP68 CONFORMING TO IEC 60529-IP66 CONFORMING TO IEC 60529-IP67 CONFORMING TO IEC 60529,MALE CONNECTOR M12, 4 PINS,METAL |
| Standard | 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-UL 508-EN/IEC 60204-1-EN/IEC 60947-5-1,CSA-CCC-UL,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,CLASS I IEC 61140-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857718&lang=en-us |
| UPC | 785901965565 |
| GTIN | 03389110221480 |
| Item Type | Limit switch |
| Size | 0.63 |
| Operating Temperature | -25-70 A Degrees C |
