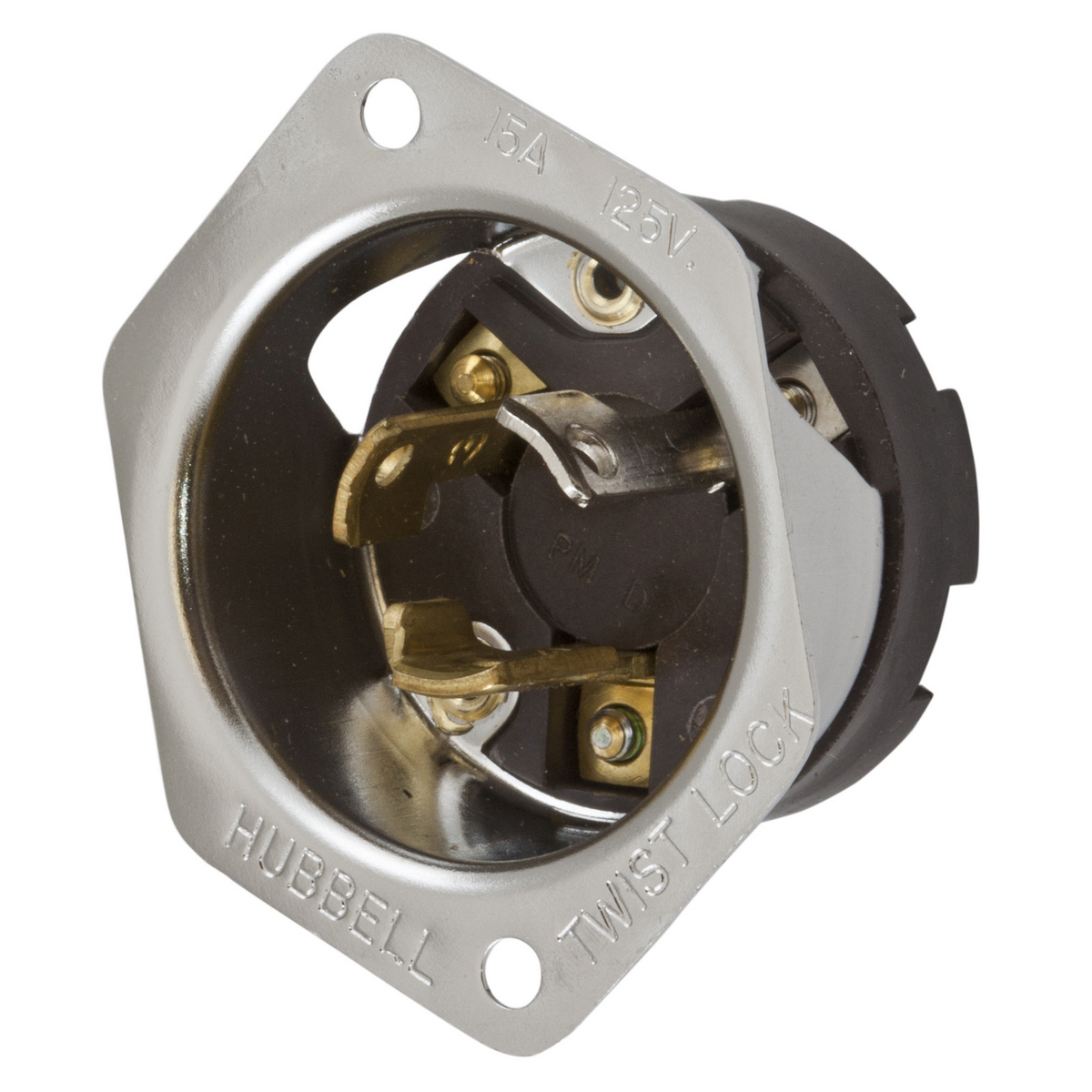

HBL4716 1-Phase Grounding Standard Screw Mount Locking Flanged Inlet, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL4716
- UPC:
- 783585236773
- Item #:
- 150120
HBL4716 1-Phase Grounding Standard Screw Mount Locking Flanged Inlet, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
- MFR #:
- HBL4716
- UPC:
- 783585236773
- Item #:
- 150120
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$52.43
each
Manuals and Documentation
| Catalog Number | HBL4716 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | Heavy Duty Industrial |
| Color | Black |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Stainless Steel |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Metallic Flange |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec.W-C-596;Listed to UL 498 |
| UPC | 783585236773 |
| GTIN | 00783585236773 |
| Item Type | Flanged Inlet |
| Size | 2.31 in x 1.75 in x 1.09 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125 |
| Wattage | 1,875 W |
| Wire Size | #18 AWG to #10 AWG |
