Telemecanique

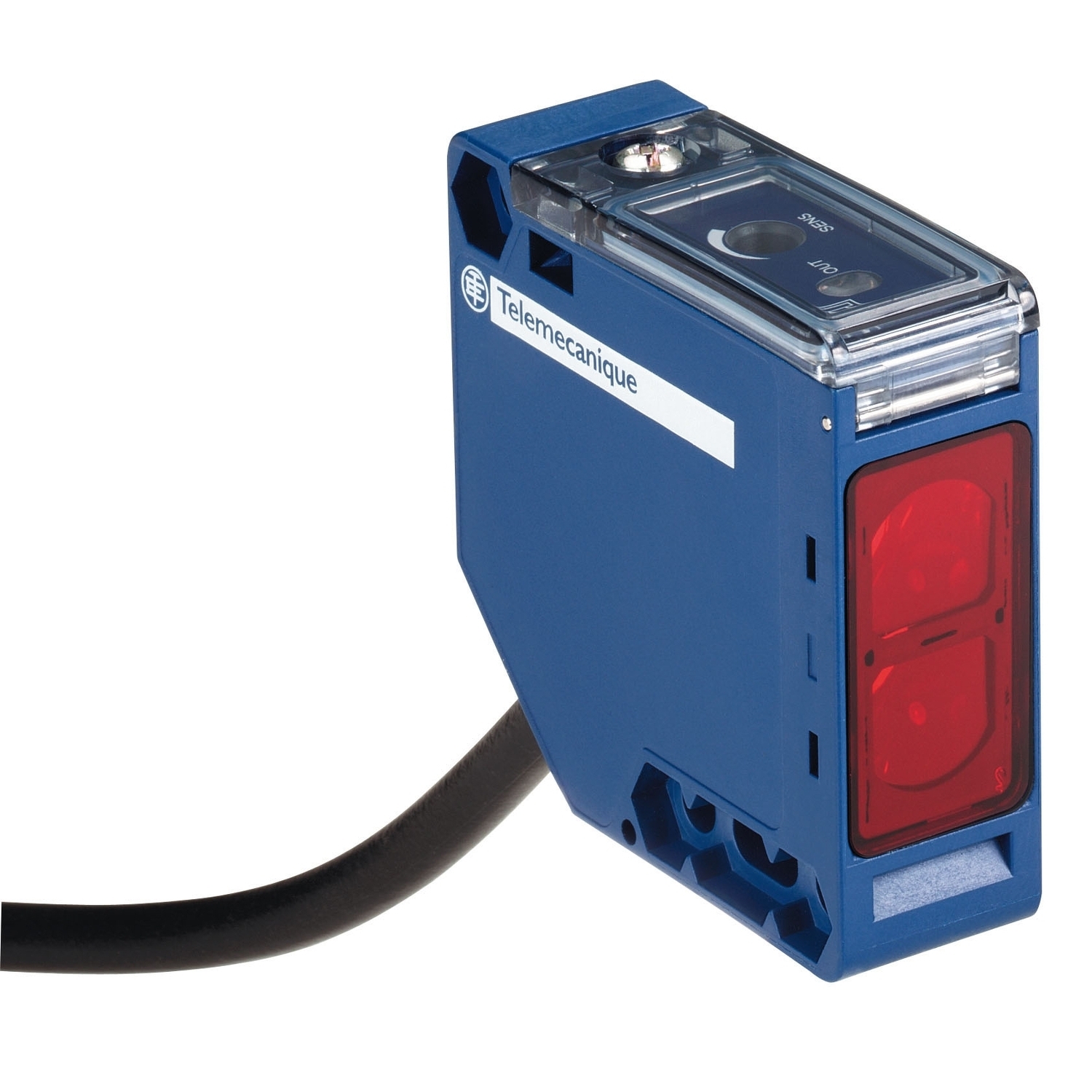

XUK2ARCNL2R OsiSense XU 5-Wire Compact Photoelectric Sensor, 45 m, Infrared Sensing Beam, 25 ms Response, Relay/1NO-1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUK2ARCNL2R
UPC:
785901530640
Item #:
149962

Availability

Location Available Qty
Available Available to Order
$153.62 each

This compact design single mode (thru-beam system) photo-electric receiver has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric receiver has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUK2ARCNL2R
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connection Cable
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Operating Cycles <= 20 Hz
Output 1 NC + 1 NO;Discrete;Relay
Sensing Range 30-30 M THRU BEAM NEED A TRANSMITTER XUK2ARCNL2T,> 49.21...98.43 FT (> 15...30 M)
Special Features 1 LED yellow)output state
Standard CE-CSA-UL,IP65 DOUBLE INSULATION IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=873718&lang=en-us
UPC 785901530640
GTIN 03389110162073
Item Type General purpose single mode;Thru beam;Compact 50 x 50;Photo-electric sensor receiver
Size 1.97
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 24...240 V AC/DC
Wattage 2 W AC
